AVer AVerVision F17-8M User Manual

2
G
G
e
e
t
t
F
F
a
a
m
m
i
i
l
l
i
i
a
a
r
r
w
w
i
i
t
t
h
h
t
t
h
h
e
e
A
A
V
V
e
e
r
r
V
V
i
i
s
s
i
i
o
o
n
n
F
F
1
1
7
7
-
-
8
8
M
M

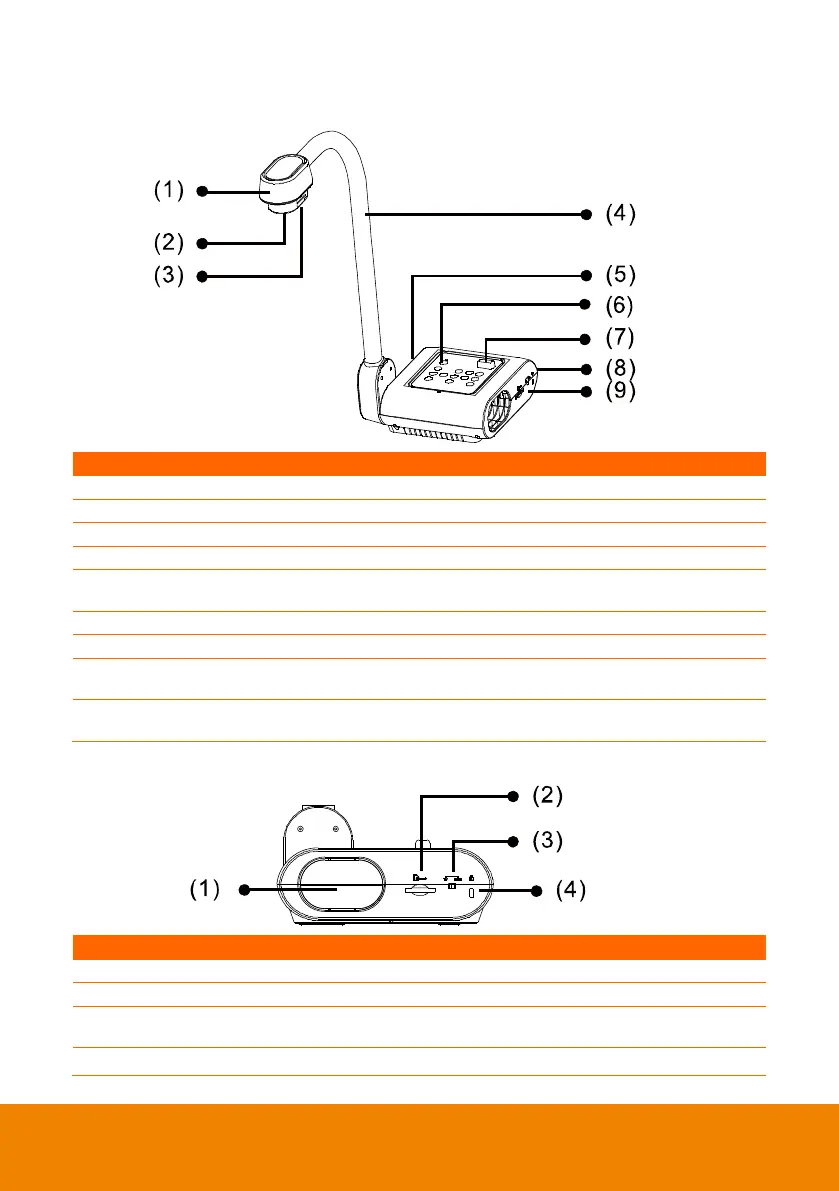

(fig. 1.1)
Name
Function
(1) Camera head
Contain the camera sensor.
(2) Camera lens
Focus the image in the camera.
(3) LED light
Provide light to enhance the lighting condition.
(4) Flexible arm
Provide adjustable viewing coverage.
(5) Left panel
Connections for HDMI output/input external display device,
microphone, speaker, and USB flash drive/USB mouse.
(6) Control panel
Easy access to various functions.
(7) IR sensor
Receive remote control commands.
(8) Rear panel
Connections for power, computer, RGB/RCA external display device,
and USB to PC.
(9) Right panel
Connections for the camera head holder, SD card, TV-RGB display
output switch, and antitheft Kensington security lock compatible slot.
Right Panel
(fig. 1.2)
Name
Function
(1) Camera Holder
Hold the camera head for storage.
(2) SD card slot
Insert the SD card with the label facing up.
(3) TV-RGB switch
TV switch to output display video from RCA (via CVBS adapter) to
RGB OUT and HDMI OUT.
(4) Antitheft Slot
Attach a Kensington compatible security lock or antitheft device.

AVer AVerVision F17-8M Specifications

General

Sensor type	CMOS
Image freeze	Yes
White balance	Auto, Manual
Maximum frame rate	30 fps
Optical sensor size	1/3.2 \
Maximum video resolution	1920 x 1080 pixels
Effective sensor resolution	8 MP
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1920 x 1080 (HD 1080)
Digital zoom	16 x
Shooting area (WxD)	580 x 326 mm
AC input voltage	100-240 V
Operating voltage	12 V
Power supply type	DC
AC input frequency	50 - 60 Hz
Power consumption (typical)	12.8 W
Interface	USB 2.0
USB connector type	Mini-USB, USB Type-A
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64
Lamp type	LED
Control type	Buttons
Photo effects	Black&White, Mirror, Negative film, Split screen
Product color	Black
Camera movement	Manual
Cables included	Composite, Mini-USB, VGA
Compatible memory cards	SDHC
Maximum memory card size	32 GB
Memory capacity (images)	80
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	380 mm
Width	200 mm
Height	525 mm
Weight	2500 g
Dimensions folded (WxDxH)	230 x 305 x 73 mm
