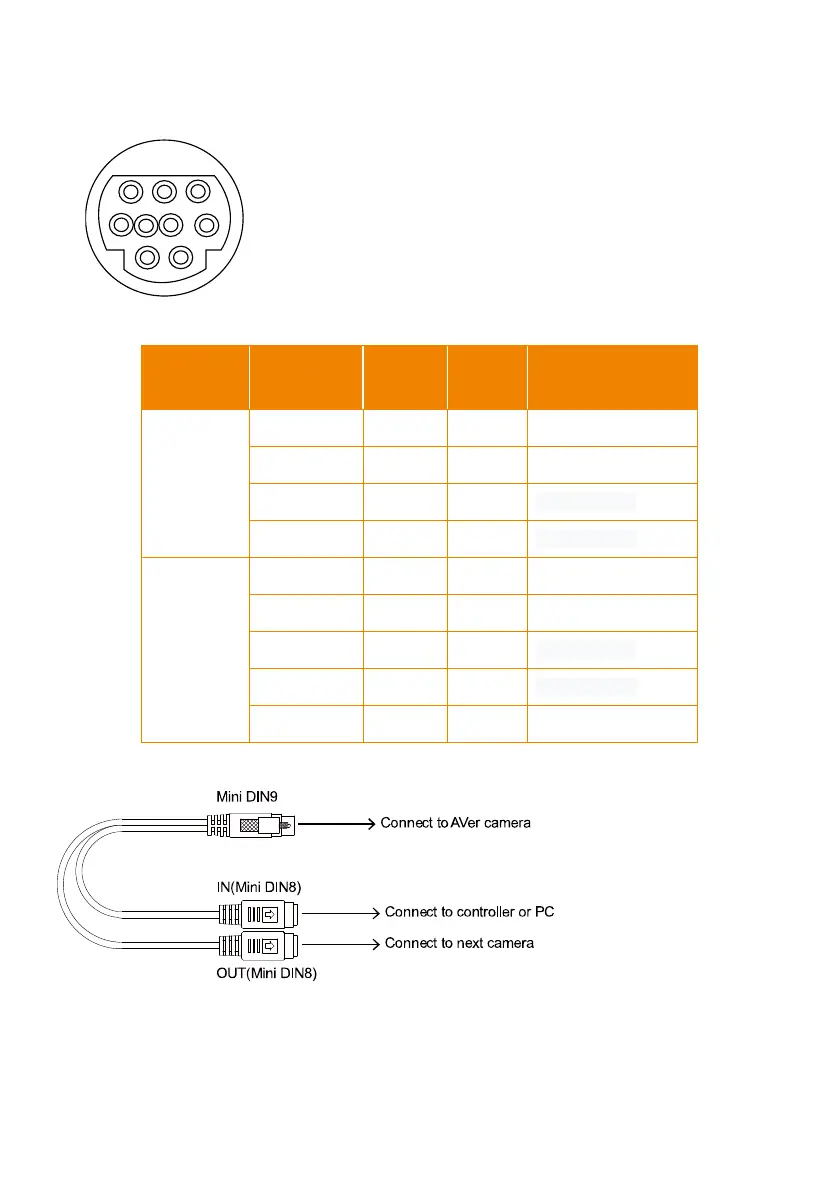

8
●
RS232
Port Pin
D
efinition
1
2
3
4
5
6
7
8
9
Function
Mini DIN9
PIN #
I/O Type
Signal
Description
VISCA IN
1
Output
DTR
Data T
erminal
Ready
2
Input
DSR
Data Set Ready
3
Output
TXD
Transmit Dat
a
6
Input
RXD
Receiver Data
VISCA OUT
7
Output
DTR
Data T
erminal
Ready
4
Input
DSR
Data Set Ready
8
Output
TXD
Transmit Dat
a
9
Input
RXD
Receiver Data
5
---
---
Not connect
●
RS232 mini DIN9 t
o mini DIN8 Cable Pin D
efiniti
on
14
16
