10
1 8

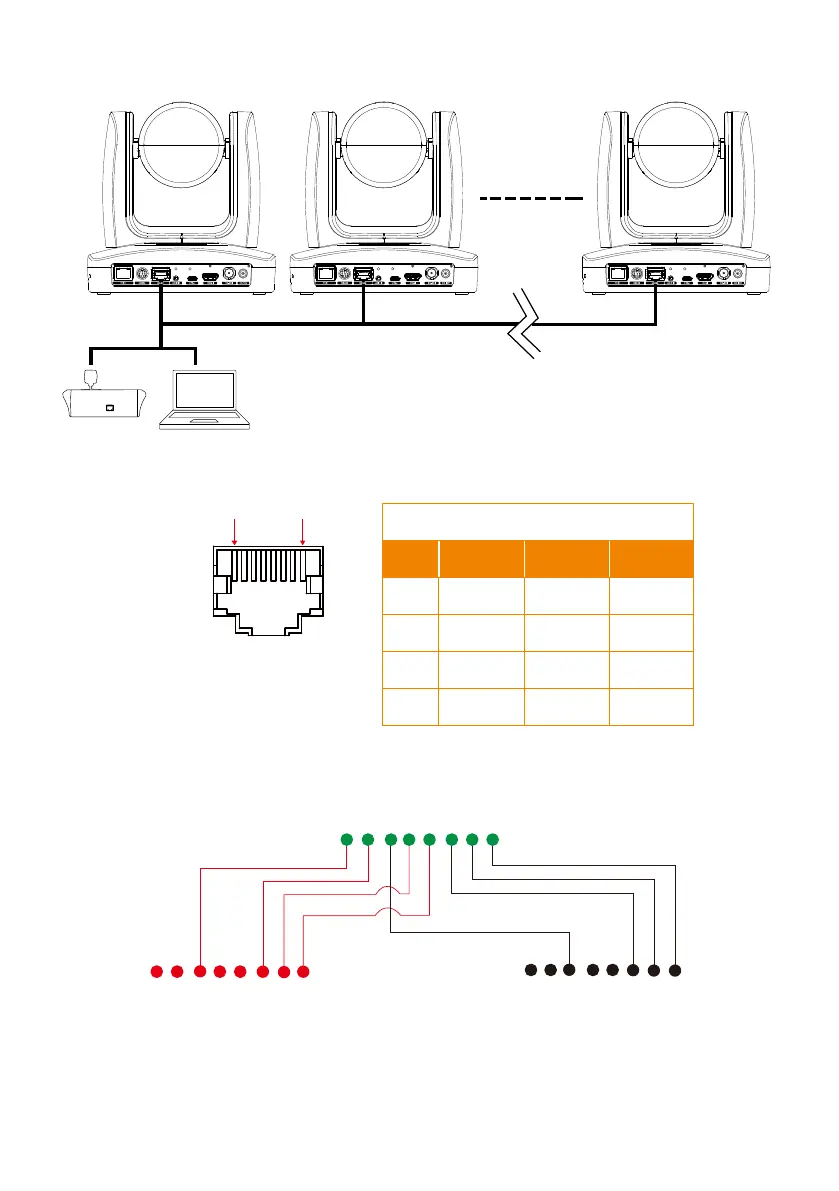

RS422
[Note] Use cat5e splitter for multi-camera connection.
Cat5e splitter pin assignment:
1
234
5
678
1
234
5
678
1
234
5
678
Camera
Camera/Joystick
Camera/Joystick
Laptop
Joystick
RS422 cable
(Not inculded)
RS422 Pin
No. Pin No. Pin
1 TX- 5 TX+
2 TX+ 6 RX+
3 RX- 7 RX-
4 TX- 8 RX+
