Operators Manual
ALS 330/430
Release 8/07 Page 59 Connections and signals
8.2.4 Applicator connector
The applicator connection is done via a 15 pole D-sub connector common to other machines.

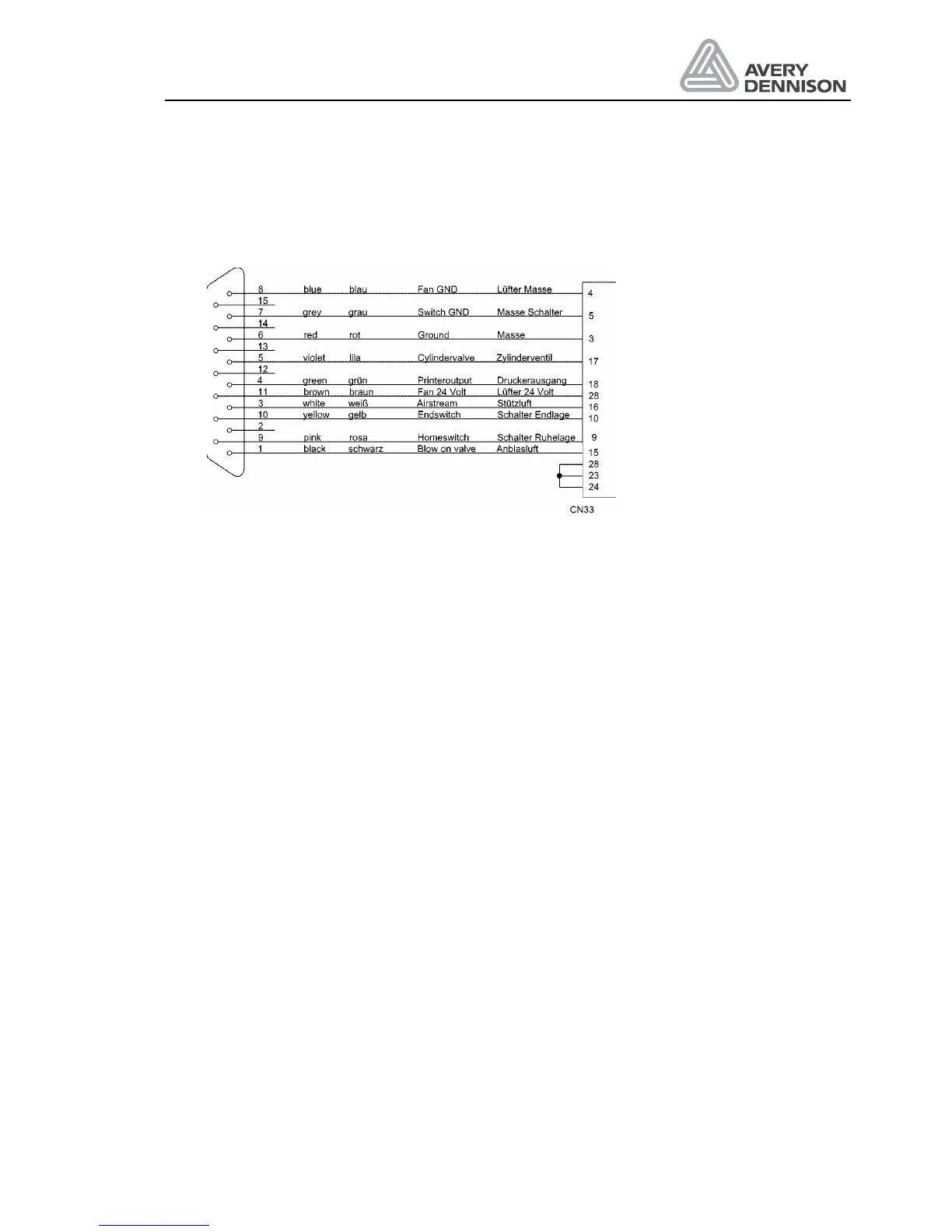

Figure 20 Applicator connector
