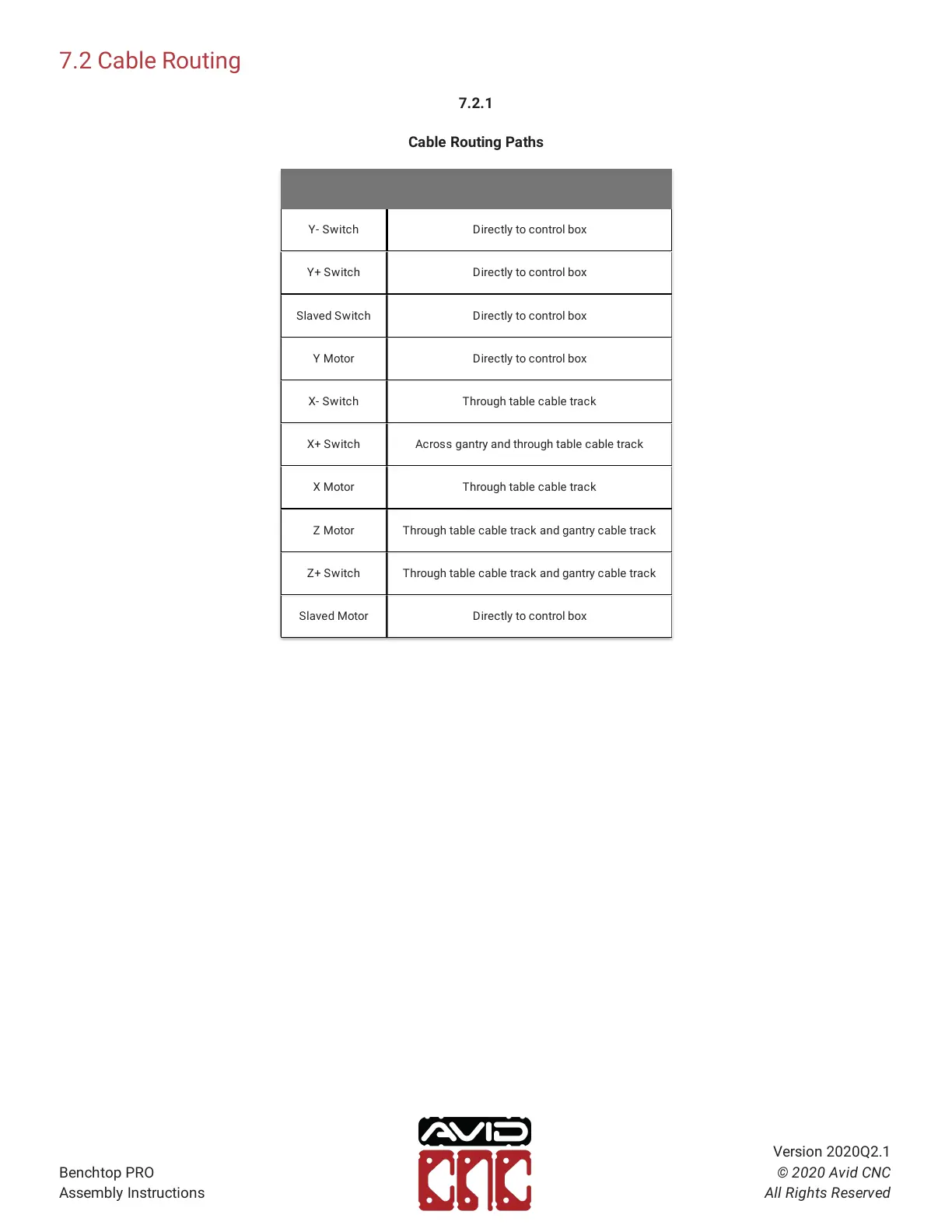

Motor/Sensor Cable Routing Path
Y- Switch Directly to control box
Y+ Switch Directly to control box
Slaved Switch Directly to control box
Y Motor Directly to control box
X- Switch Through table cable track
X+ Switch Across gantry and through table cable track
X Motor Through table cable track
Z Motor Through table cable track and gantry cable track
Z+ Switch Through table cable track and gantry cable track
Slaved Motor Directly to control box
