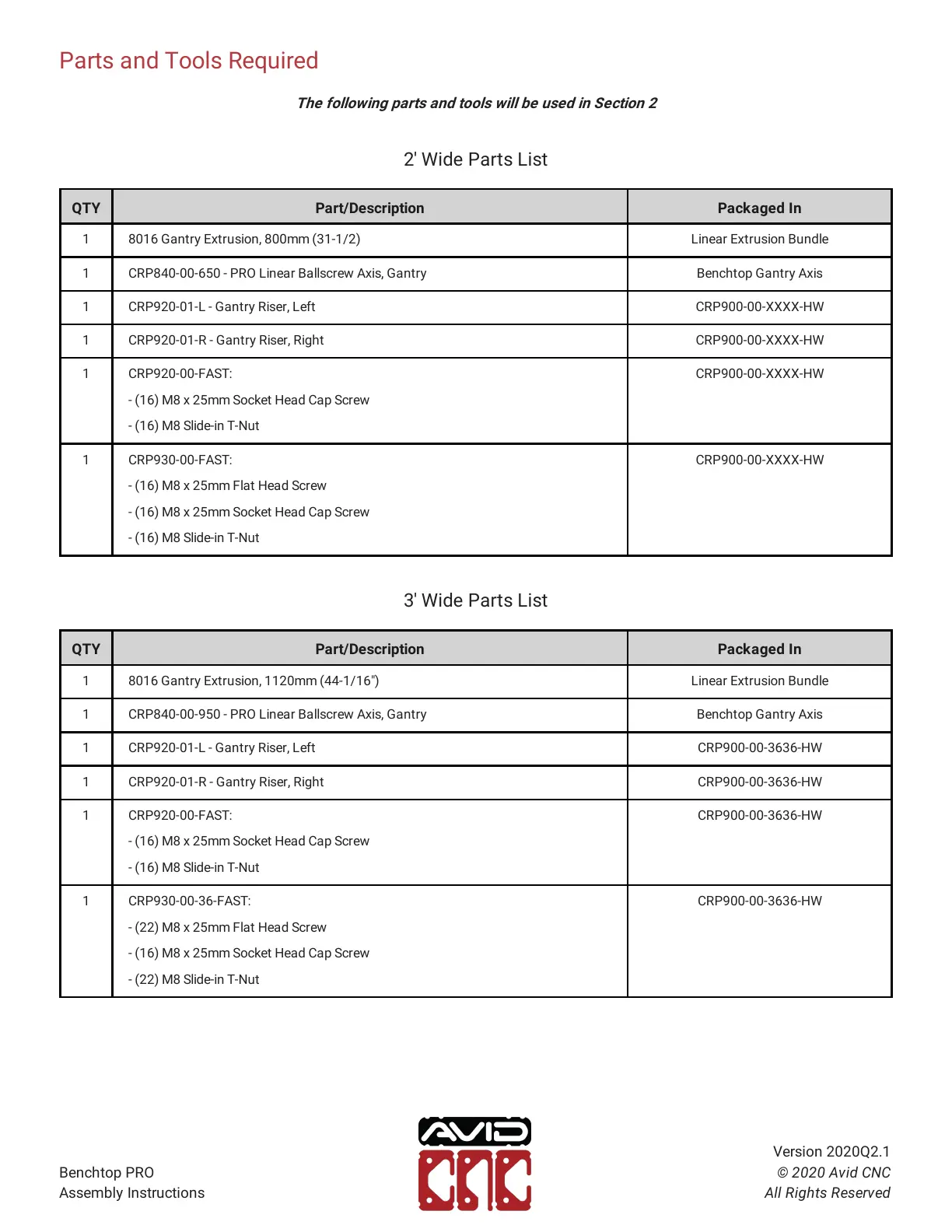

Parts and Tools Required
The following parts and tools will be used in Section 2
2' Wide Parts List
QTY Part/Description Packaged In
1 8016 Gantry Extrusion, 800mm (31-1/2) Linear Extrusion Bundle
1 CRP840-00-650 - PRO Linear Ballscrew Axis, Gantry Benchtop Gantry Axis
1 CRP920-01-L - Gantry Riser, Left CRP900-00-XXXX-HW
1 CRP920-01-R - Gantry Riser, Right CRP900-00-XXXX-HW
1 CRP920-00-FAST: CRP900-00-XXXX-HW
- (16) M8 x 25mm Socket Head Cap Screw
- (16) M8 Slide-in T-Nut
1 CRP930-00-FAST: CRP900-00-XXXX-HW
- (16) M8 x 25mm Flat Head Screw
- (16) M8 x 25mm Socket Head Cap Screw
- (16) M8 Slide-in T-Nut
3' Wide Parts List
QTY Part/Description Packaged In
1 8016 Gantry Extrusion, 1120mm (44-1/16") Linear Extrusion Bundle
1 CRP840-00-950 - PRO Linear Ballscrew Axis, Gantry Benchtop Gantry Axis
1 CRP920-01-L - Gantry Riser, Left CRP900-00-3636-HW
1 CRP920-01-R - Gantry Riser, Right CRP900-00-3636-HW
1 CRP920-00-FAST: CRP900-00-3636-HW
- (16) M8 x 25mm Socket Head Cap Screw
- (16) M8 Slide-in T-Nut
1 CRP930-00-36-FAST: CRP900-00-3636-HW
- (22) M8 x 25mm Flat Head Screw
- (16) M8 x 25mm Socket Head Cap Screw
- (22) M8 Slide-in T-Nut
Benchtop PRO
Assembly Instructions
Version 2020Q2.1
© 2020 Avid CNC
All Rights Reserved
