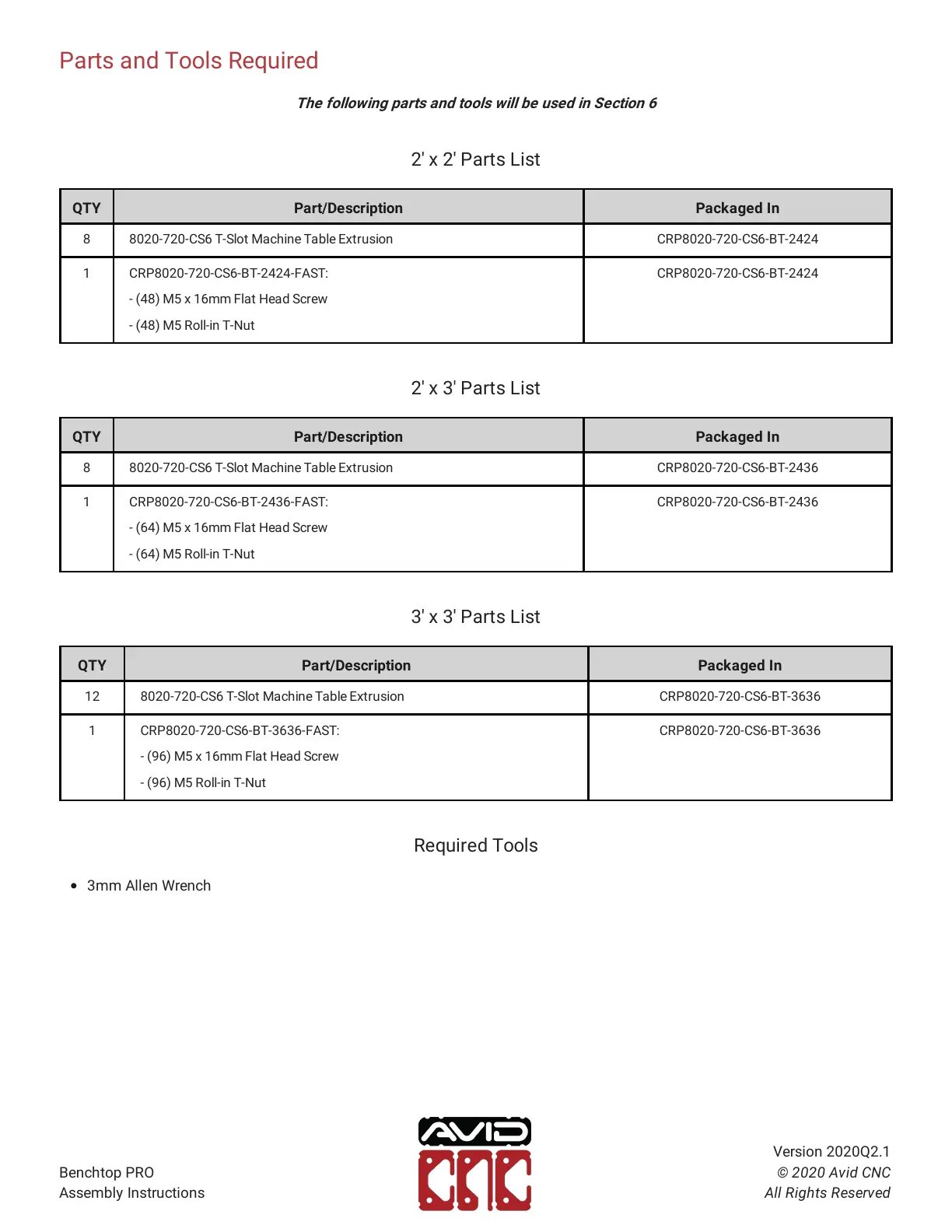

Parts and Tools Required
The following parts and tools will be used in Section 6
2' x 2' Parts List
QTY Part/Description Packaged In
8 8020-720-CS6 T-Slot Machine Table Extrusion CRP8020-720-CS6-BT-2424
1 CRP8020-720-CS6-BT-2424-FAST: CRP8020-720-CS6-BT-2424
- (48) M5 x 16mm Flat Head Screw
- (48) M5 Roll-in T-Nut
2' x 3' Parts List
QTY Part/Description Packaged In
8 8020-720-CS6 T-Slot Machine Table Extrusion CRP8020-720-CS6-BT-2436
1 CRP8020-720-CS6-BT-2436-FAST: CRP8020-720-CS6-BT-2436
- (64) M5 x 16mm Flat Head Screw
- (64) M5 Roll-in T-Nut
3' x 3' Parts List
QTY Part/Description Packaged In
12 8020-720-CS6 T-Slot Machine Table Extrusion CRP8020-720-CS6-BT-3636
1 CRP8020-720-CS6-BT-3636-FAST: CRP8020-720-CS6-BT-3636
- (96) M5 x 16mm Flat Head Screw
- (96) M5 Roll-in T-Nut
Required Tools
3mm Allen Wrench
