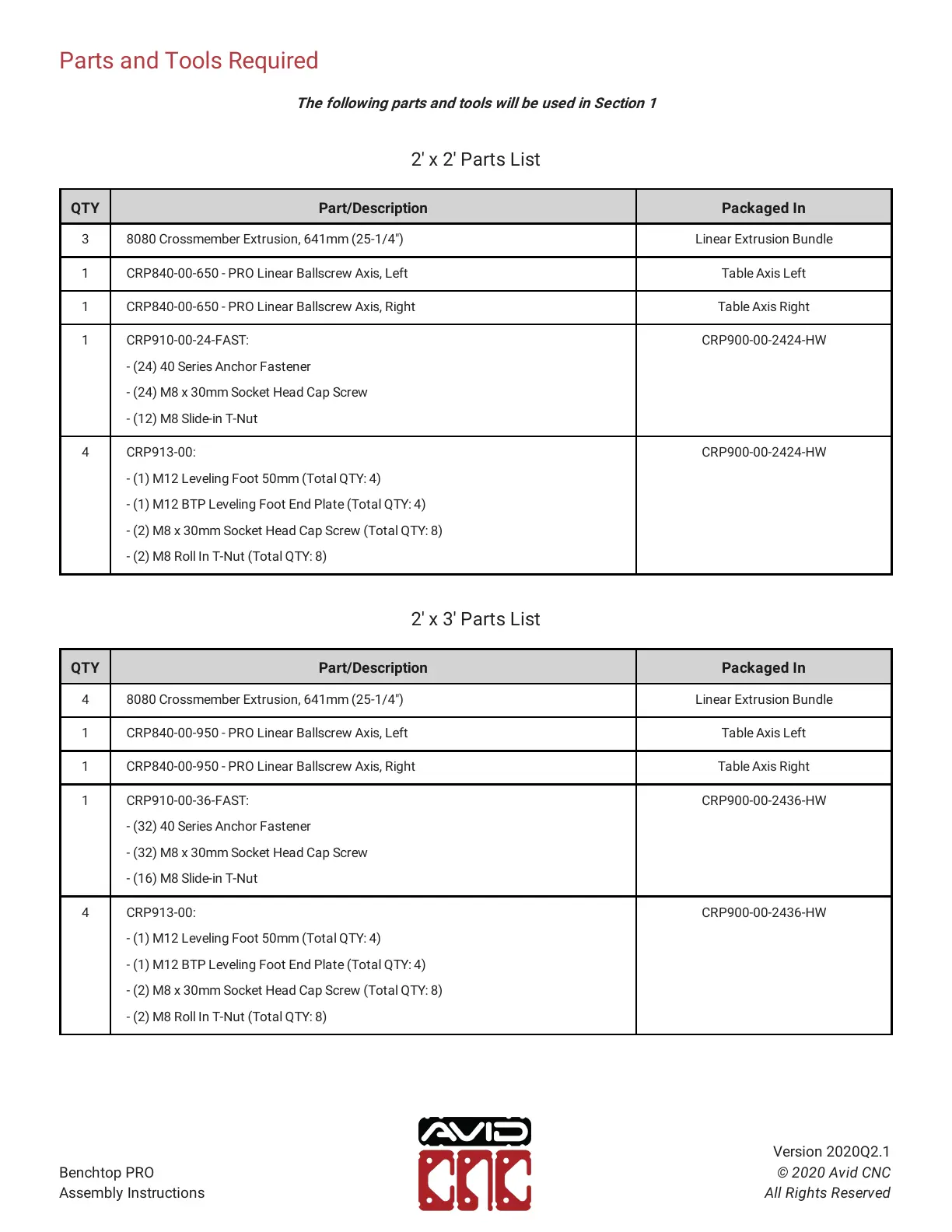

Parts and Tools Required
The following parts and tools will be used in Section 1
2' x 2' Parts List
QTY Part/Description Packaged In
3 8080 Crossmember Extrusion, 641mm (25-1/4") Linear Extrusion Bundle
1 CRP840-00-650 - PRO Linear Ballscrew Axis, Left Table Axis Left
1 CRP840-00-650 - PRO Linear Ballscrew Axis, Right Table Axis Right
1 CRP910-00-24-FAST: CRP900-00-2424-HW
- (24) 40 Series Anchor Fastener
- (24) M8 x 30mm Socket Head Cap Screw
- (12) M8 Slide-in T-Nut
4 CRP913-00: CRP900-00-2424-HW
- (1) M12 Leveling Foot 50mm (Total QTY: 4)
- (1) M12 BTP Leveling Foot End Plate (Total QTY: 4)
- (2) M8 x 30mm Socket Head Cap Screw (Total QTY: 8)
- (2) M8 Roll In T-Nut (Total QTY: 8)
2' x 3' Parts List
QTY Part/Description Packaged In
4 8080 Crossmember Extrusion, 641mm (25-1/4") Linear Extrusion Bundle
1 CRP840-00-950 - PRO Linear Ballscrew Axis, Left Table Axis Left
1 CRP840-00-950 - PRO Linear Ballscrew Axis, Right Table Axis Right
1 CRP910-00-36-FAST: CRP900-00-2436-HW
- (32) 40 Series Anchor Fastener
- (32) M8 x 30mm Socket Head Cap Screw
- (16) M8 Slide-in T-Nut
4 CRP913-00: CRP900-00-2436-HW
- (1) M12 Leveling Foot 50mm (Total QTY: 4)
- (1) M12 BTP Leveling Foot End Plate (Total QTY: 4)
- (2) M8 x 30mm Socket Head Cap Screw (Total QTY: 8)
- (2) M8 Roll In T-Nut (Total QTY: 8)
