7.3.1

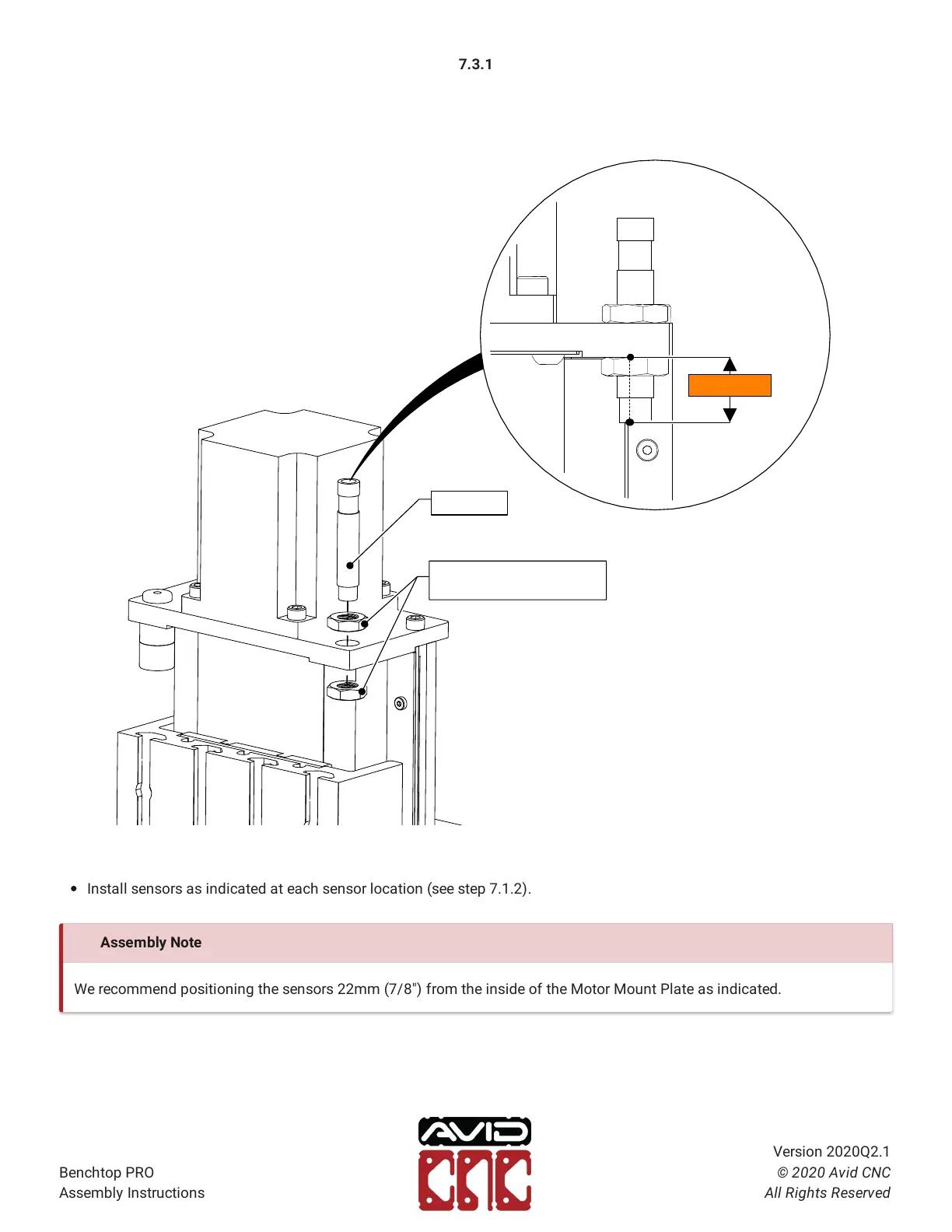

Install sensors as indicated at each sensor location (see step 7.1.2).
M12 x 1.0 Hex Jam Nut
(Included with sensor)
Z+ Sensor
22mm (7/8")
Assembly Note
We recommend positioning the sensors 22mm (7/8") from the inside of the Motor Mount Plate as indicated.

