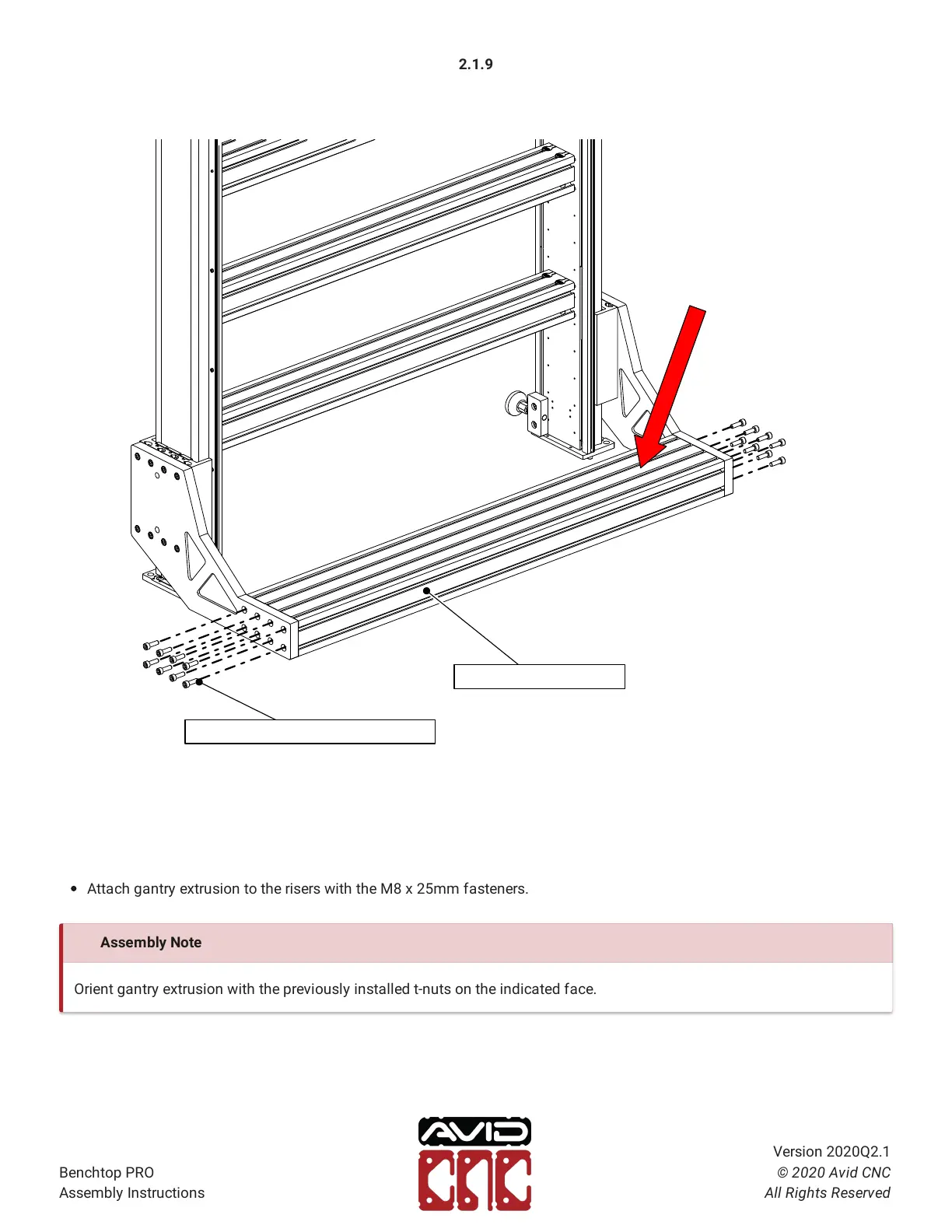

2.1.9
Attach gantry extrusion to the risers with the M8 x 25mm fasteners.
T-Nuts on this face
8016 Gantry Extrusion
M8 x 25mm Socket Head Cap Screw
Assembly Note
Orient gantry extrusion with the previously installed t-nuts on the indicated face.

