Avid CNC Benchtop PRO - Page 59

N23 Motor Installation
4.1.1

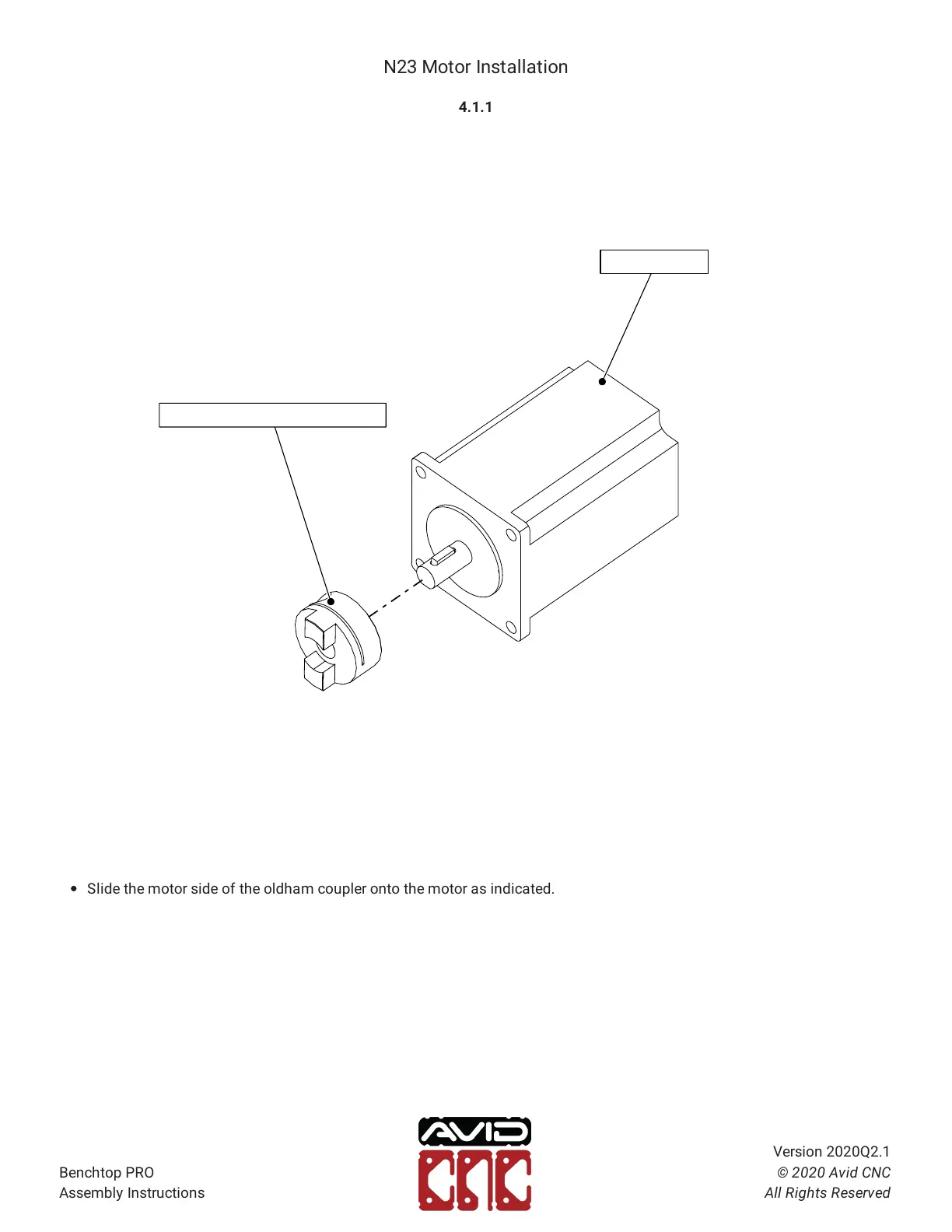

Slide the motor side of the oldham coupler onto the motor as indicated.
NEMA 23 Motor
Oldham Assembly - Motor Half
Benchtop PRO
Assembly Instructions
