4.2.2

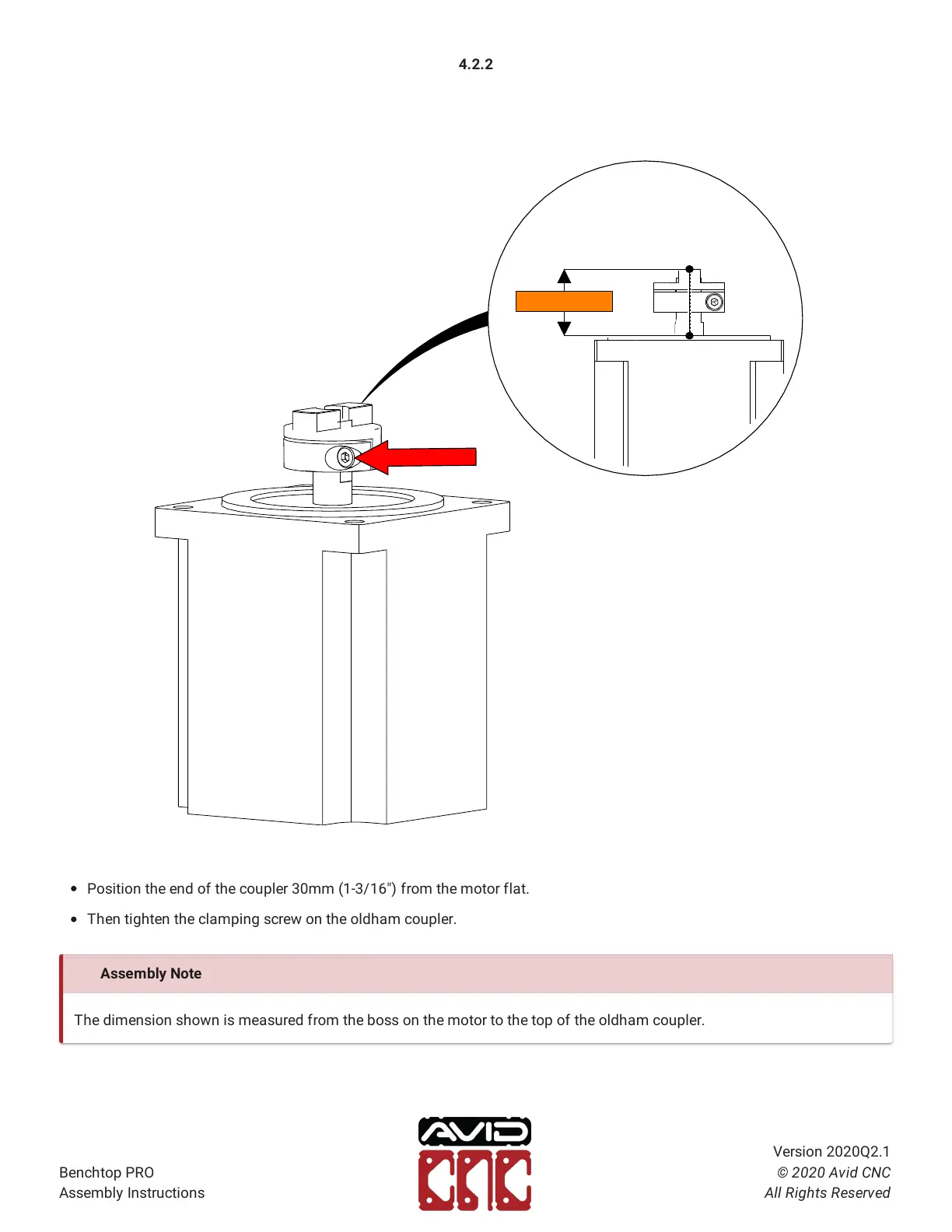

Position the end of the coupler 30mm (1-3/16") from the motor flat.
Then tighten the clamping screw on the oldham coupler.
30mm (1-3/16")
Assembly Note
The dimension shown is measured from the boss on the motor to the top of the oldham coupler.

