5.2.7

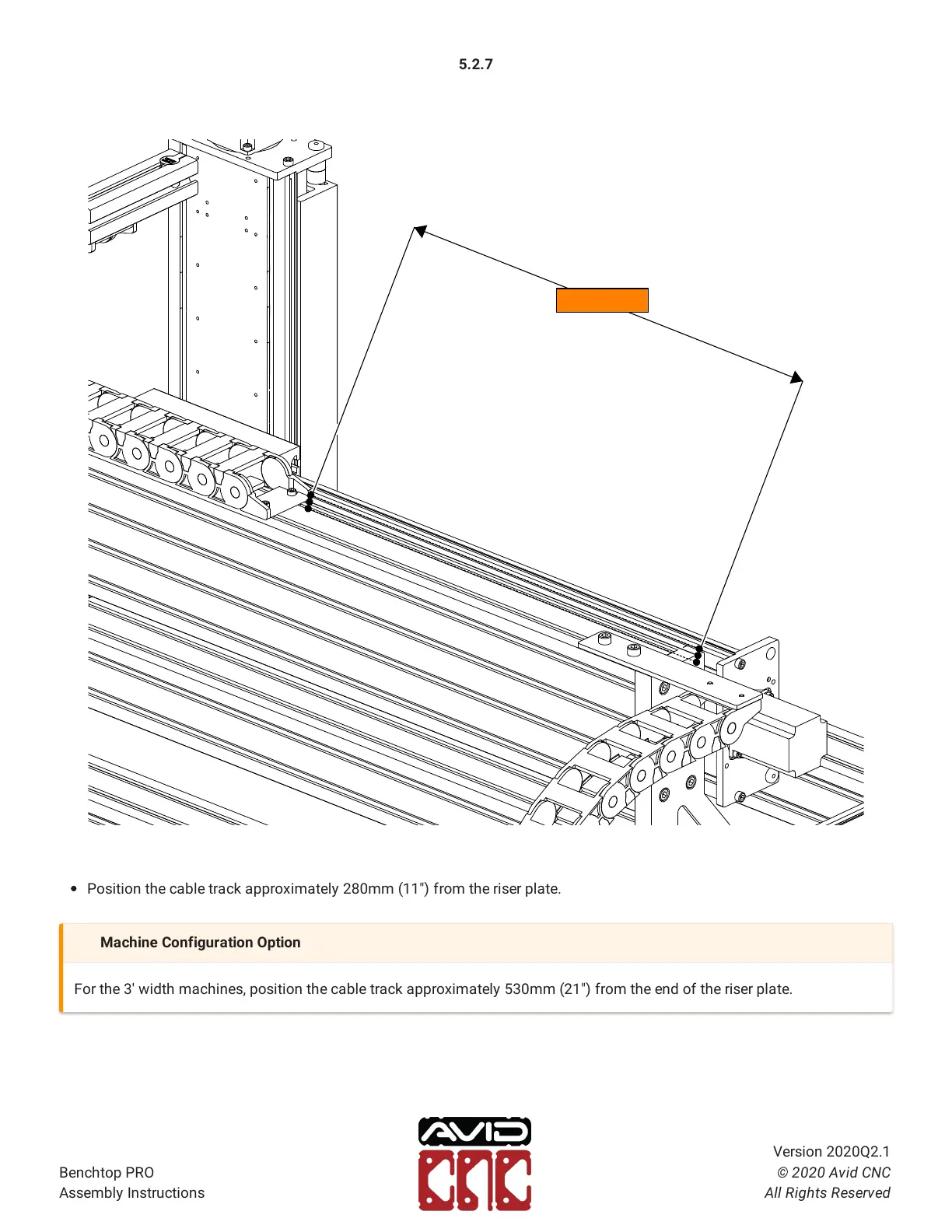

Position the cable track approximately 280mm (11") from the riser plate.

280mm (11")

Machine Configuration Option

For the 3' width machines, position the cable track approximately 530mm (21") from the end of the riser plate.


