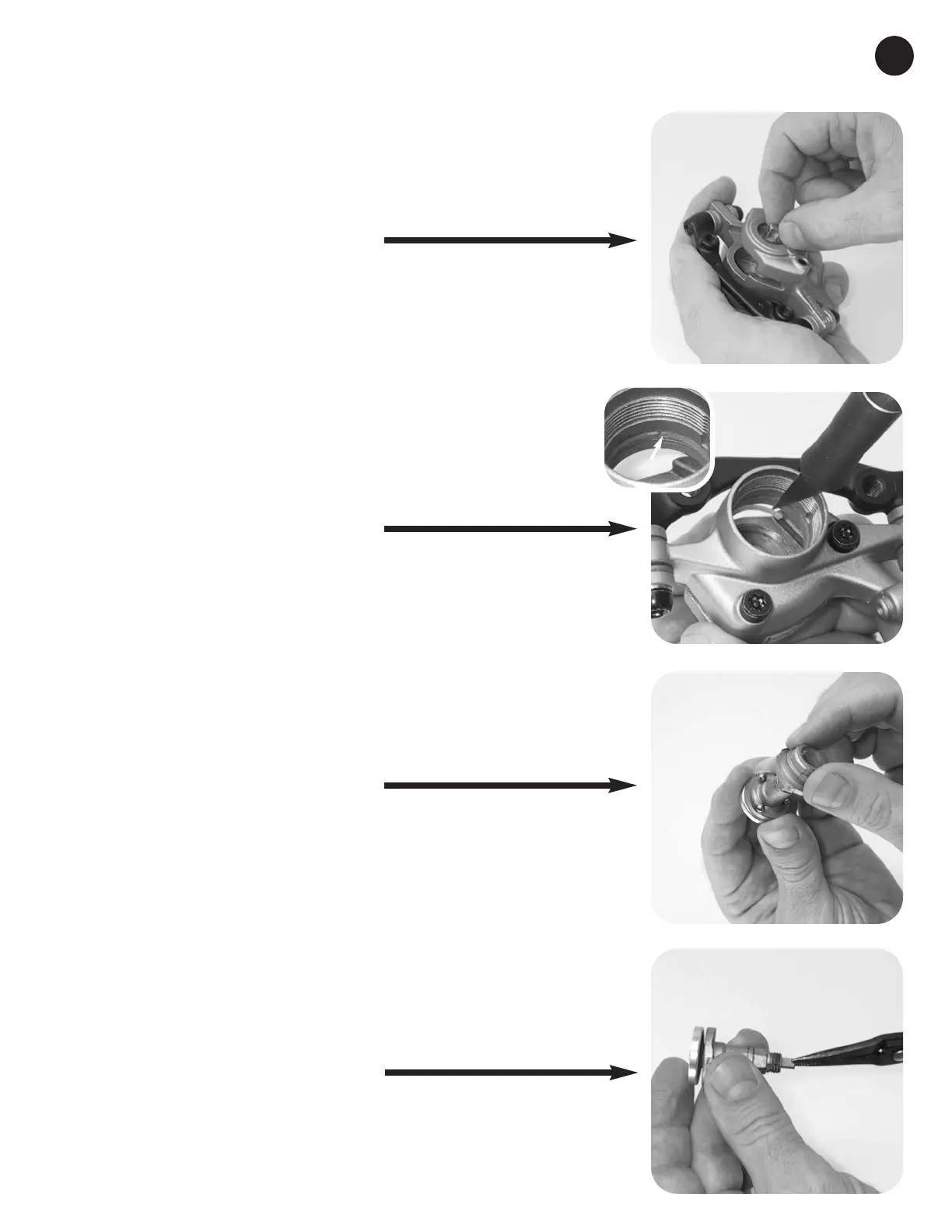

STEP 9: REMOVE INBOARD PRESSURE
FOOT
Turn the inboard pressure foot clockwise until it is
free, then remove it through the main body bore.
STEP 10. REMOVE INNER BODY SEAL
There is one split in this seal for installation and
removal purposes. Engage the seal at the split
with an x-acto knife or other small sharp tool and
carefully remove it.
STEP 11: CAM DISASSEMBLY
A. Lift the fixed cam off of the drive cam, being
careful not to lose the 3 ball bearings.
B. Use small needle-nose pliers or a Schrader
valve core tool to turn the foot screw clockwise
until the outboard pressure foot is driven out of
the drive cam. Continue turning the foot screw
until it is completely unthreaded from the drive
cam.
TYPE F
TYPE N
Split
8
