STEP 7: REMOVE CAMS
Pull out the cam/outboard pressure foot assem-
bly. Once this assembly is out, remove the pads
and pad spacer from the caliper.
STEP 8: REMOVE INBOARD ADJUSTER
KNOB
Using a small flat blade screwdriver, remove the
inboard adjuster knob.

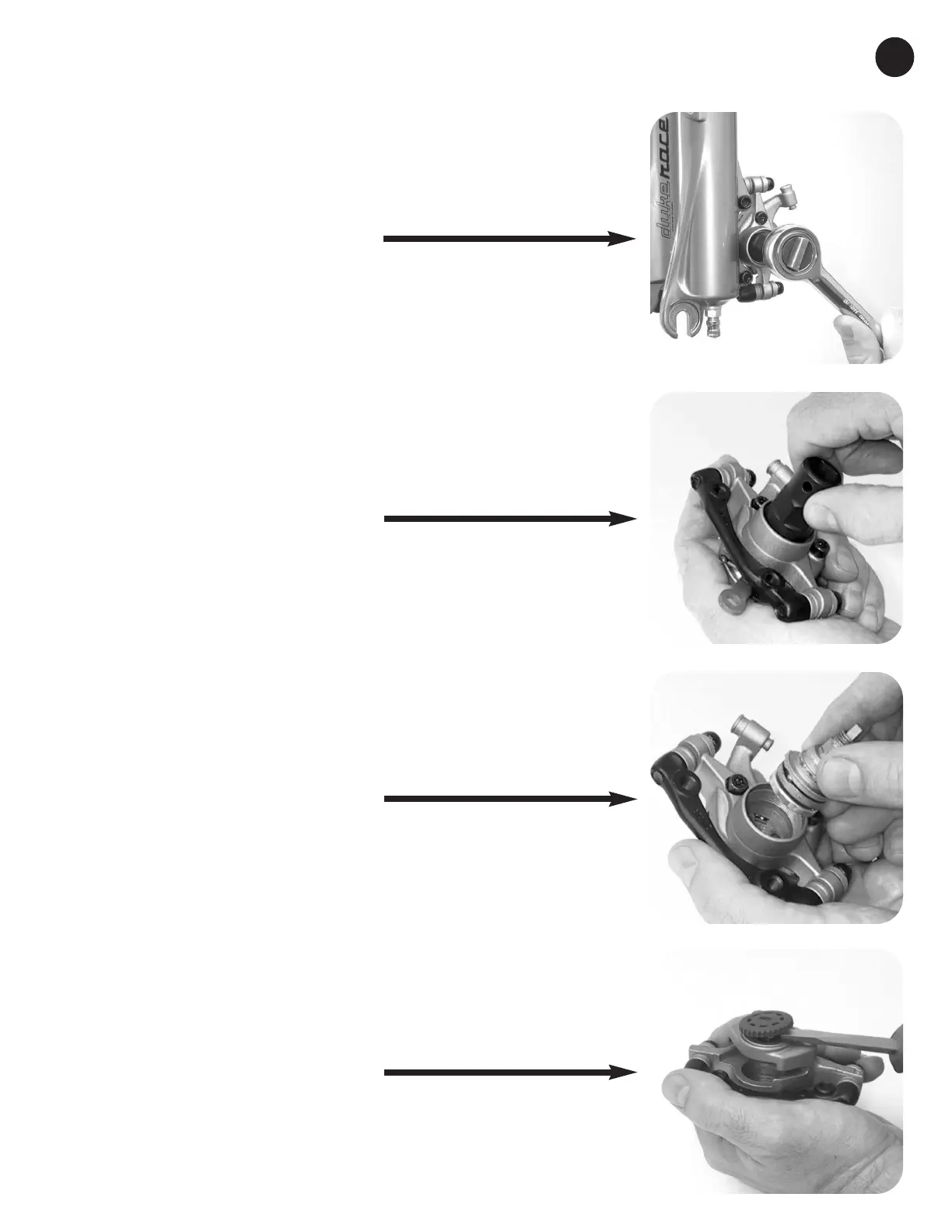

STEP 5: FREE LOCKRING
Using the Avid MDT-1 Lockring Tool and a 3/8
drive ratchet, break the lockring free. Now
remove the caliper from the bike.
STEP 6: REMOVE LOCKRING
Using the MDT-1 by hand, completely remove the
lockring.
