Chapter 2: Controls and Connectors 5
Chapter 2: Controls and Connectors

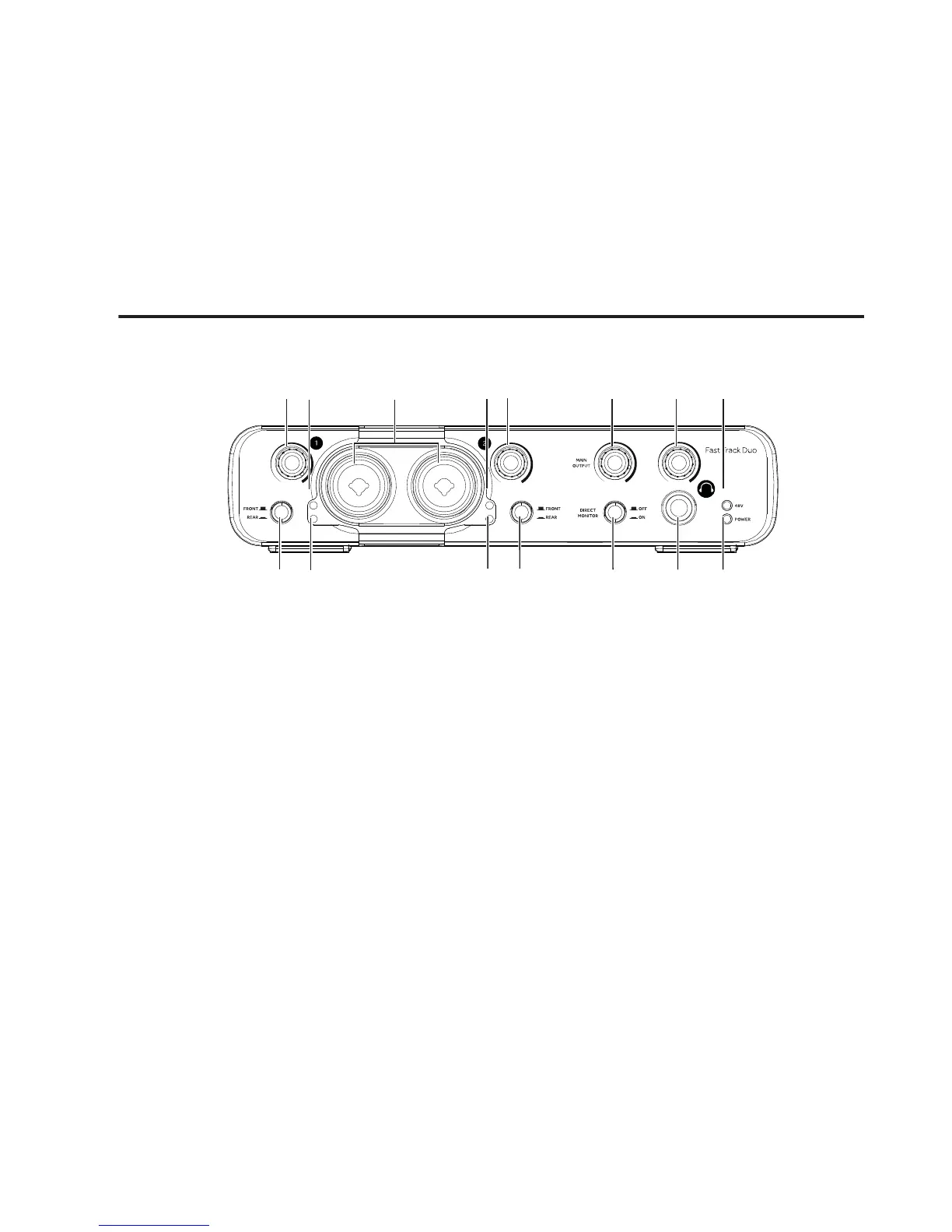

Front Panel
1 – Channel Gain Knobs
Adjust these knobs to control the input gain for the
corresponding input channels when setting record-
ing levels.
2– Clip Indicators
The red LED indicates “clipping” or distortion on
the input of the corresponding input channel. If the
LED lights, reduce the Input Gain for the channel.
3 – Microphone/Instrument
Inputs
These connectors accept either a standard XLR mi-
crophone cable, or 1/4-inch instrument cable.
4 – Output Level Control
Adjust this knob to control the output level of the
back panel Line Outputs.
5 – Headphone Level Control
Adjust this knob to control the Headphone output
level.
3256
8
1
7
124
78 9 10 11
