19
When “Music One All Headsets” is selected, Music 1 (from the
rear connector input, Pins J2 23 & 24 only) is distributed to all
headsets and is independent of the intercom mode button (ISOL).

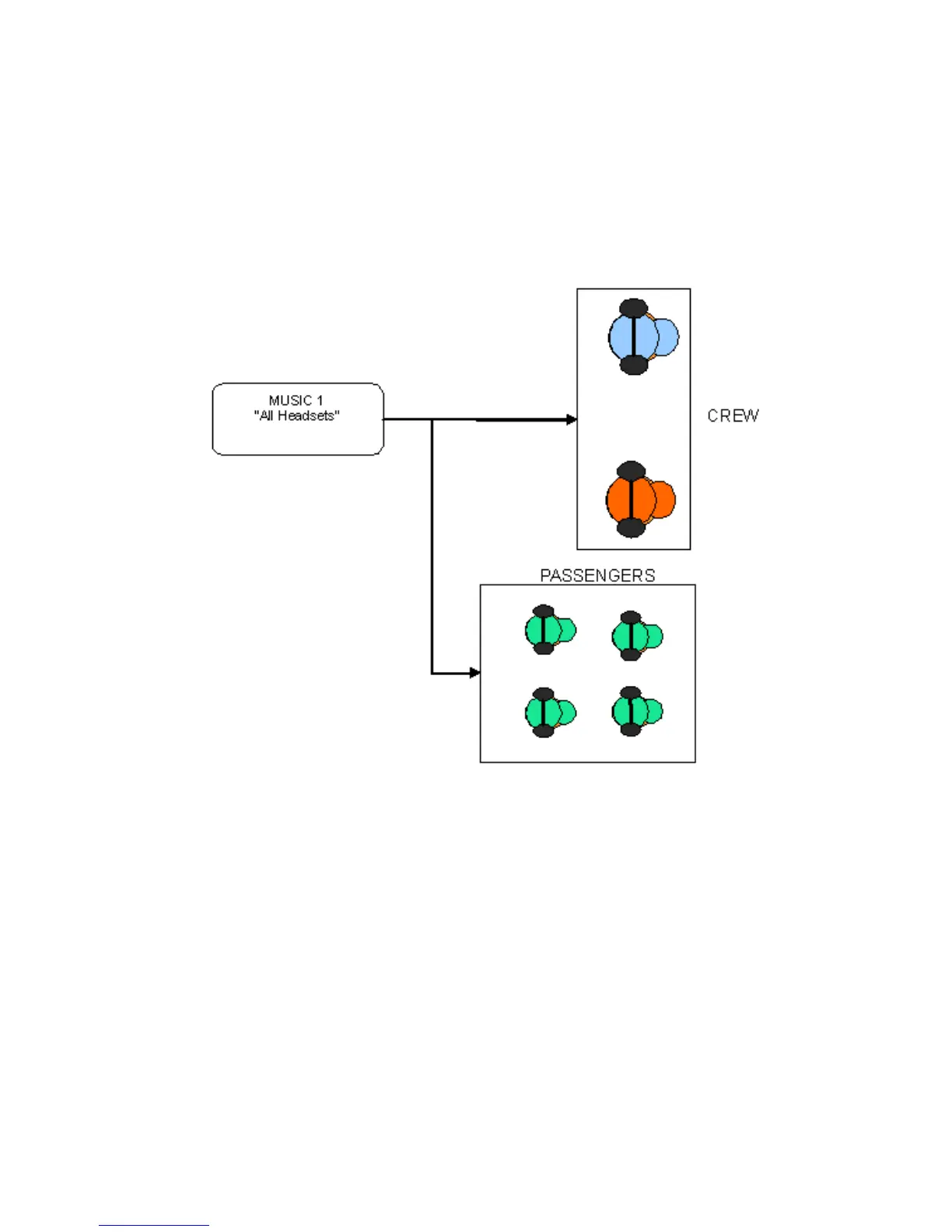

Music One All Headsets Configuration
Therefore, even in the CREW mode, the passengers will hear
Music 1, even though they will not hear the intercom or radios.
The music muting feature follows the selected mode for Music 1
and is controlled by the front panel Music (♫) button.
