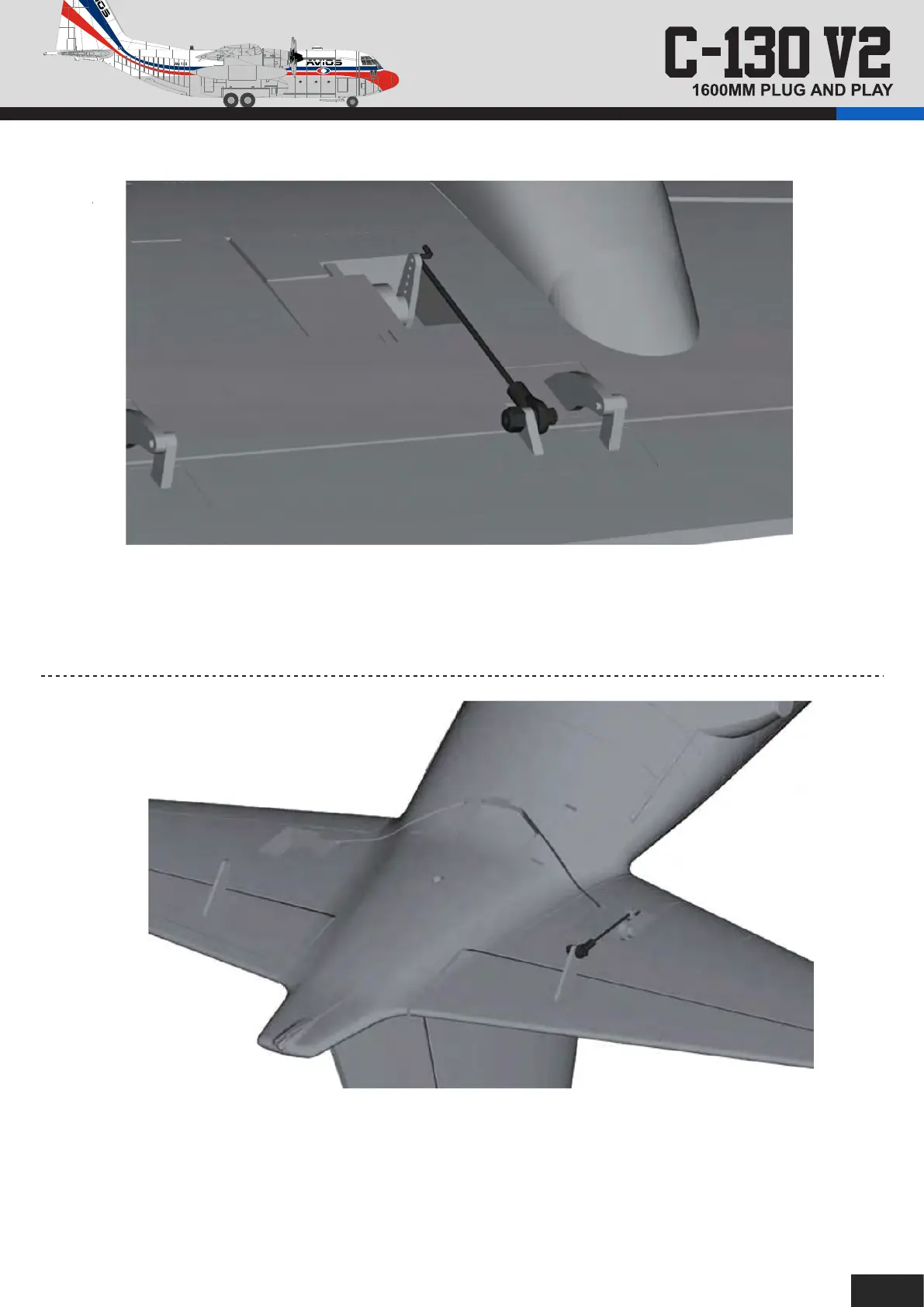

18. Install the outboard flap pushrod linkages to the flaps as shown.
Ensure the Z link goes to the servo horn, and the ball link goes to
the flap horn.
19. Install the elevator pushrod linkage to the elevator as shown.
Once again, ensure the Z link goes to the servo horn, and the ball
link to the elevator horn.
