Dual Illuminated Alarm Push

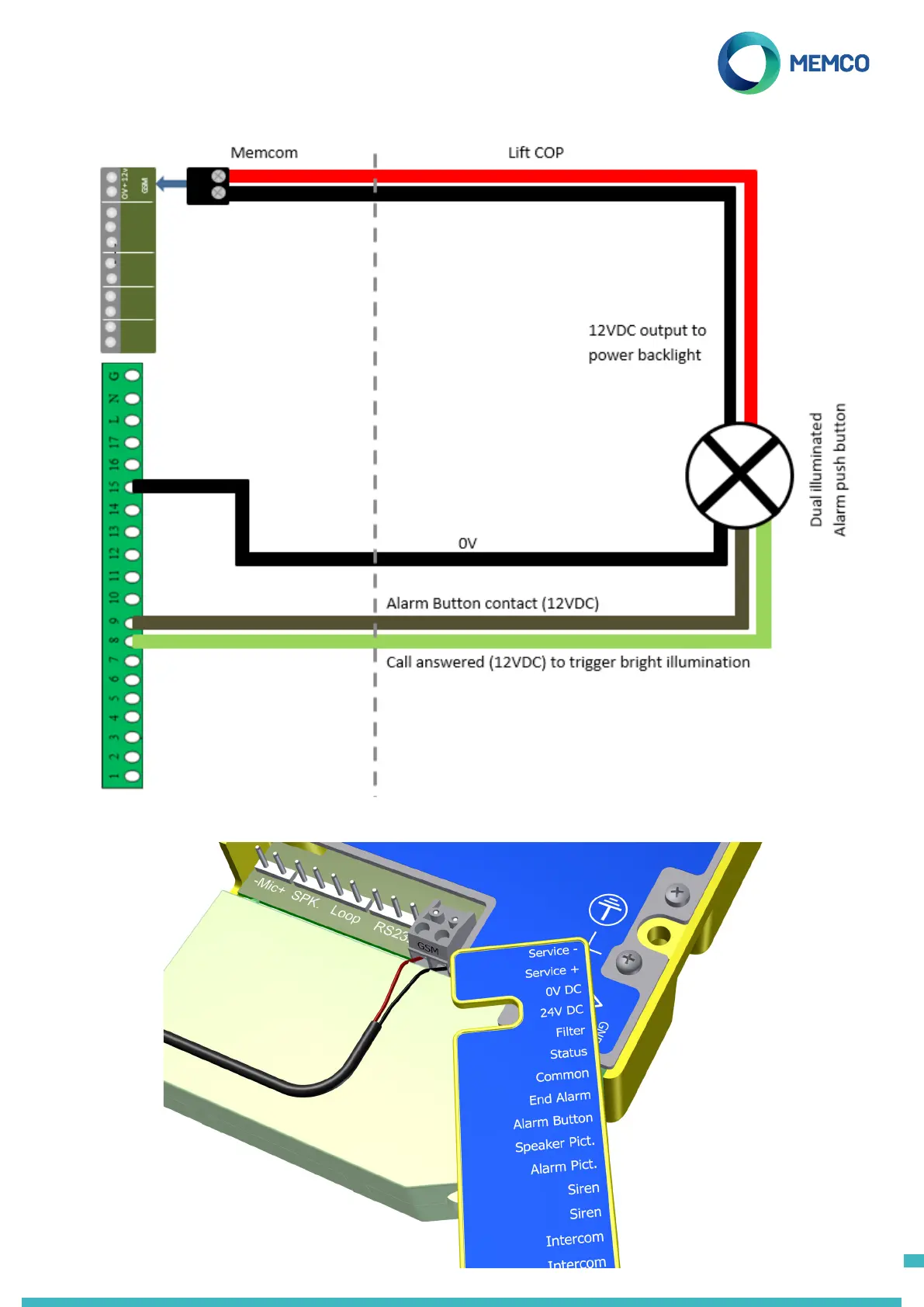

The diagram below details the wiring required for a dual illuminated alarm push.
Connection to the 12VDC supply from the Memcom
+
is shown below.
4
