Avison N8 Series User Manual

WIRING DIAGRAM!
!

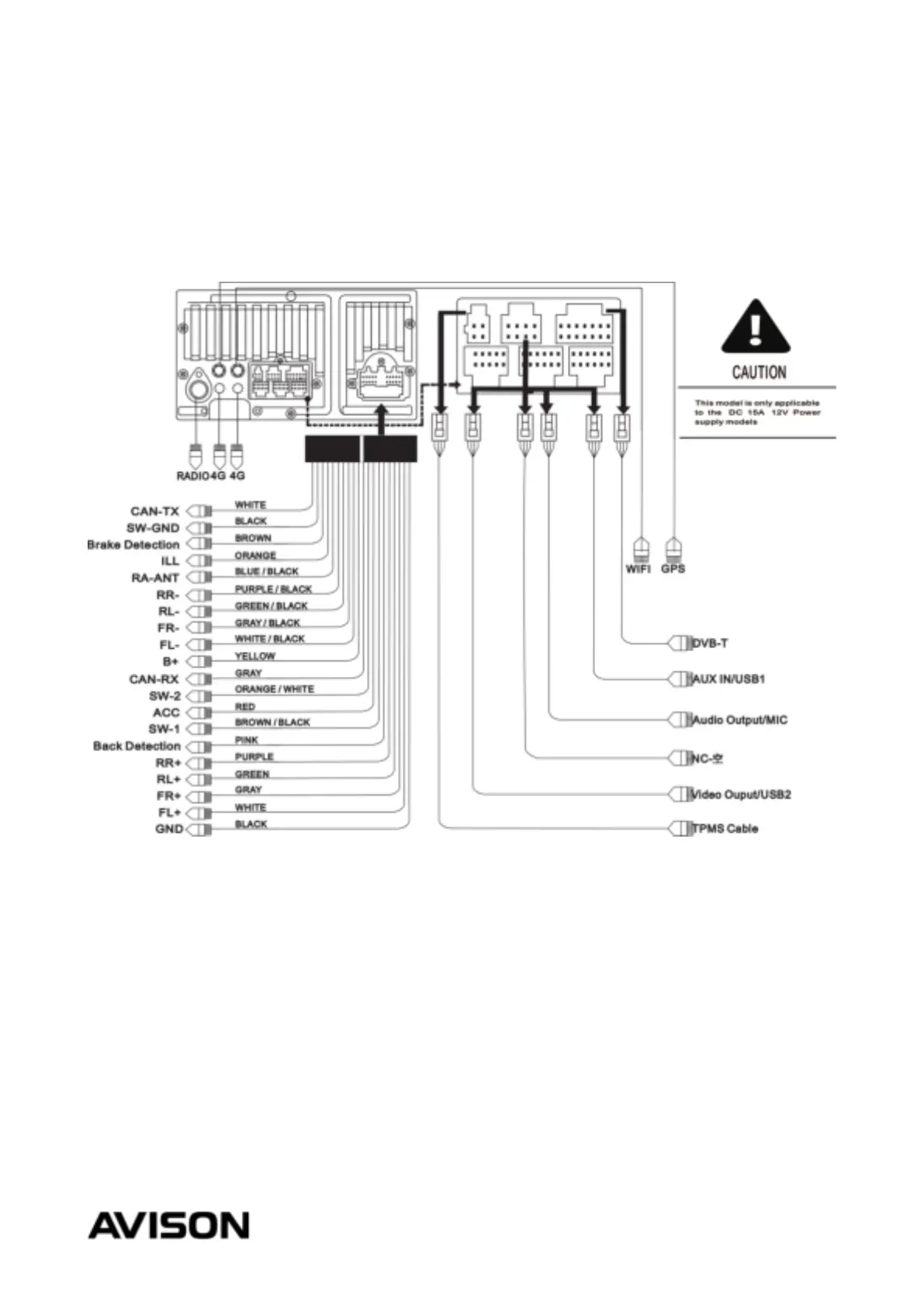

Below is a wiring diagram of an Avison N8 series car radio.!
!
B+ is the supply wire for the memory of the radio, this must always have
12V voltage, otherwise the radio will not remember its memory.
!
ACC should only receive voltage when the ignition is on, as soon as
voltage is applied to this, the radio will start up automatically, and
switch off when the voltage is off.!
27

Avison N8 Series Specifications

General

Brand	Avison
Model	N8 Series
Category	Car Receiver
Language	English
