AVM FRITZ! Repeater 2400 User Manual

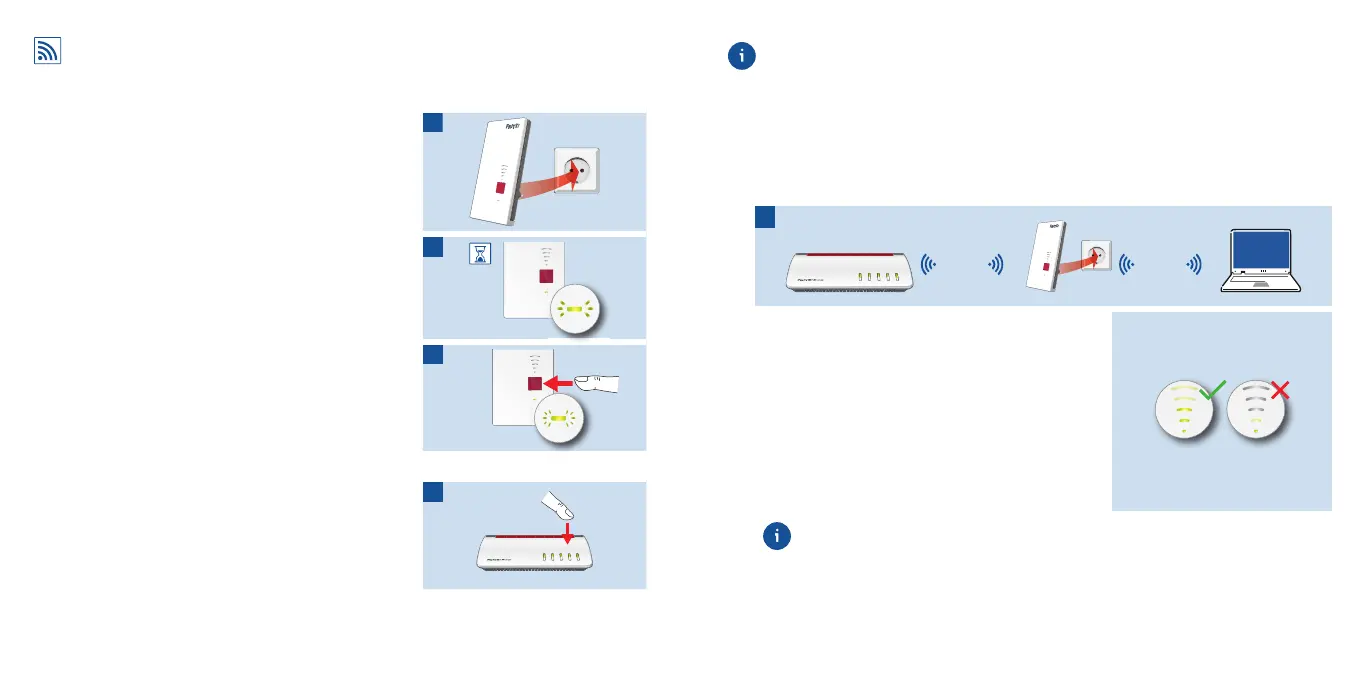

Wireless Bridge: Connect the FRITZ!Repeater 2400
to a Wireless Router at the Touch of a Button (WPS)
1. Plug the FRITZ!Repeater 2400 into an outlet near
your FRITZ!Box (wireless router).
The FRITZ!Repeater 2400 starts operation.
Connect
2. Wait until the status LED starts slowly fl ashing
green.
As soon as the status LED slowly fl ashes green, the
FRITZ!Repeater 2400 is ready for a connection.
Connect
3. Press the “Connect” button.
The status LED fl ashes green more rapidly.
Connect
4. Within 2 minutes, start WPS on your FRITZ!Box (wireless router):
- FRITZ!Box with “WPS” or “Connect/WPS” button:
Press button briefl y.
- FRITZ!Boxes with “WLAN” or “WLAN/WPS” button:
Press button for about 6 seconds until the “WLAN”
LED fl ashes.
Powe
r
/DSL
WLAN
Fo
n
/
DECT
Connec
t
/
WPS
Info
The status LED and the bars of the “connection quality” LED on the FRITZ!Repeater
lights a steady green when the wireless connection is established.
If the status LED starts fl ashing slowly green again, the connection was not
established. Repeat the connection instructions starting from step 3.
5. Insert the FRITZ!Repeater 2400 into an outlet located about halfway between the
FRITZ!Box (wireless router) and the wireless devices to be added to the wireless
network.
The FRITZ!Repeater and your FRITZ!Box (wireless router) connect once more. The
status LED and the bars of the “connection quality” LED light up as soon as the
connection is established.
Powe
r
/
DSL
WLAN
Fo
n
/
DECT
Connec
t
/
WPS
Info
Wi-Fi
Connect
Wi-Fi
3 - 5 bars: the FRITZ!Repeater 2400 has a good
wireless connection and is ready for operation.
1 - 2 bars: the FRITZ!Repeater 2400 has a
weak wireless connection. Insert the the
FRITZ!Repeater into an outlet closer to the
FRITZ!Box (wireless router).
0 bars and the status LED fl ashes orange: the
wireless connection cannot be established. Insert
the the FRITZ!Repeater into an outlet closer to
the FRITZ!Box (wireless router).
The optimum position for your FRITZ!Repeater 2400 in the home network of
your FRITZ!Box (wireless router) can be determined with the FRITZ!App
WLAN;see page 14.
1
2
3
4
5
98

AVM FRITZ! Repeater 2400 Specifications

General

Product type	Network repeater
Product color	White
Manual	Yes
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1
Maximum data transfer rate	1733 Mbit/s
Frequency band	2.4/5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	230 V
Power source type	AC
AC input frequency	50 Hz
Security algorithms	WPA2, WPS

Weight and Dimensions

Weight	160 g
Dimensions (WxDxH)	76.5 x 62.6 x 155 mm
