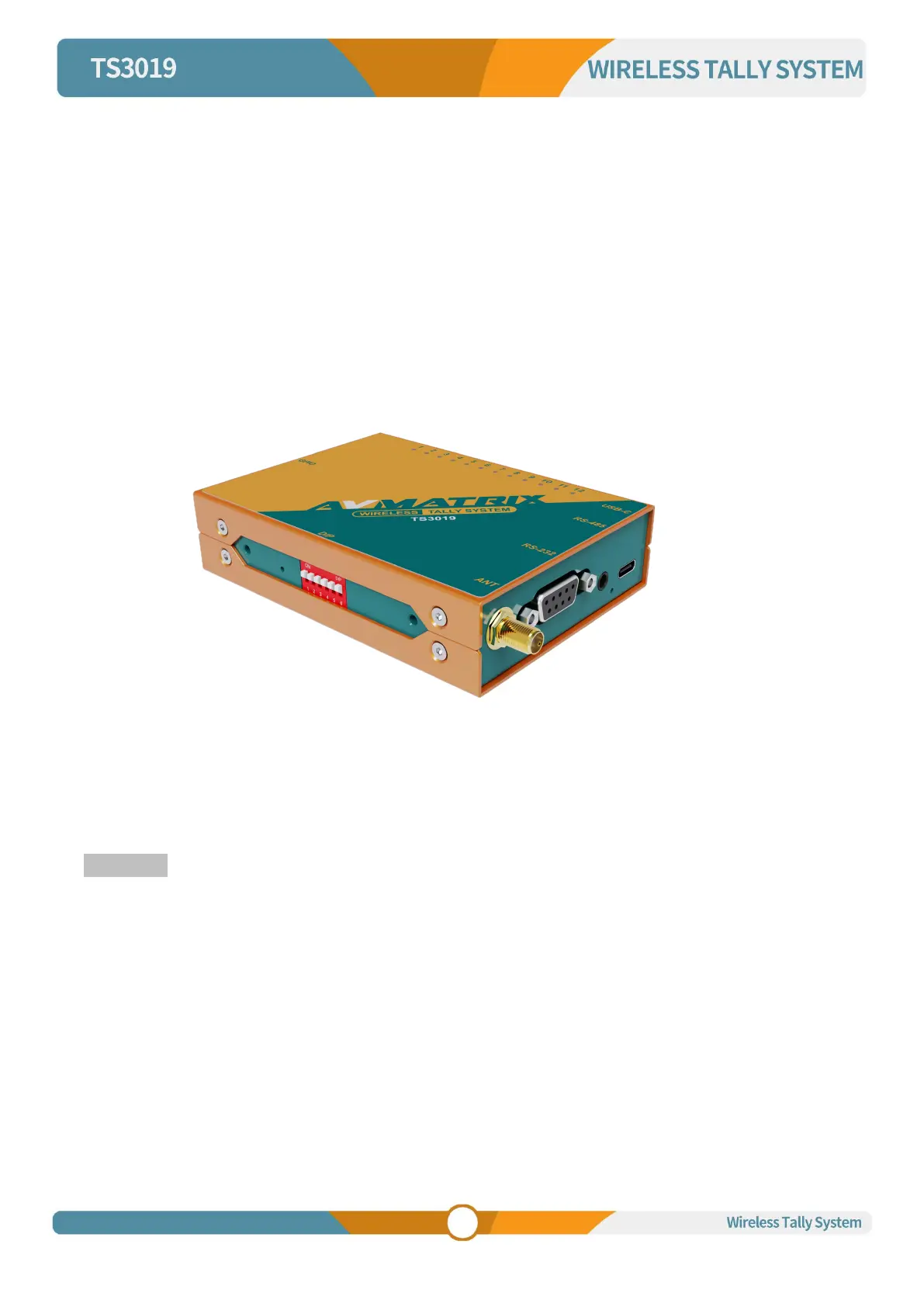

AVMATRIX TS3019 User Manual

1
1.Brief Introduction
1.1 Overview
TS3019 is a wireless tally system,which is an auxiliary system that indicates the current broadcast
position (red light) and the upcoming position (green light) of the camera operator, host and other related
personnel through the tally indicator red and green, relaying information in real time.The wireless tally
system suitable for interview programs,performances, sports, live weddings, churches and other live
broadcast activities.
1.2.Main Features
TALLY BOX
 Up to 200m wireless connection distance (line-of-sight)
 The tally box with multiple interfaces including GPIO/USB/RS-485/RS-232

GPIO compatible with AVMATRIX and other video switchers
 Compatible with VMix via USB-C

RS-232/RS-485 support TSL protocol Tally input and one-way transmissive control information
 Support 433Mhz wireless Tally connection and RS-485 wired Tally connection
