CONNECTION AND SETUP
6

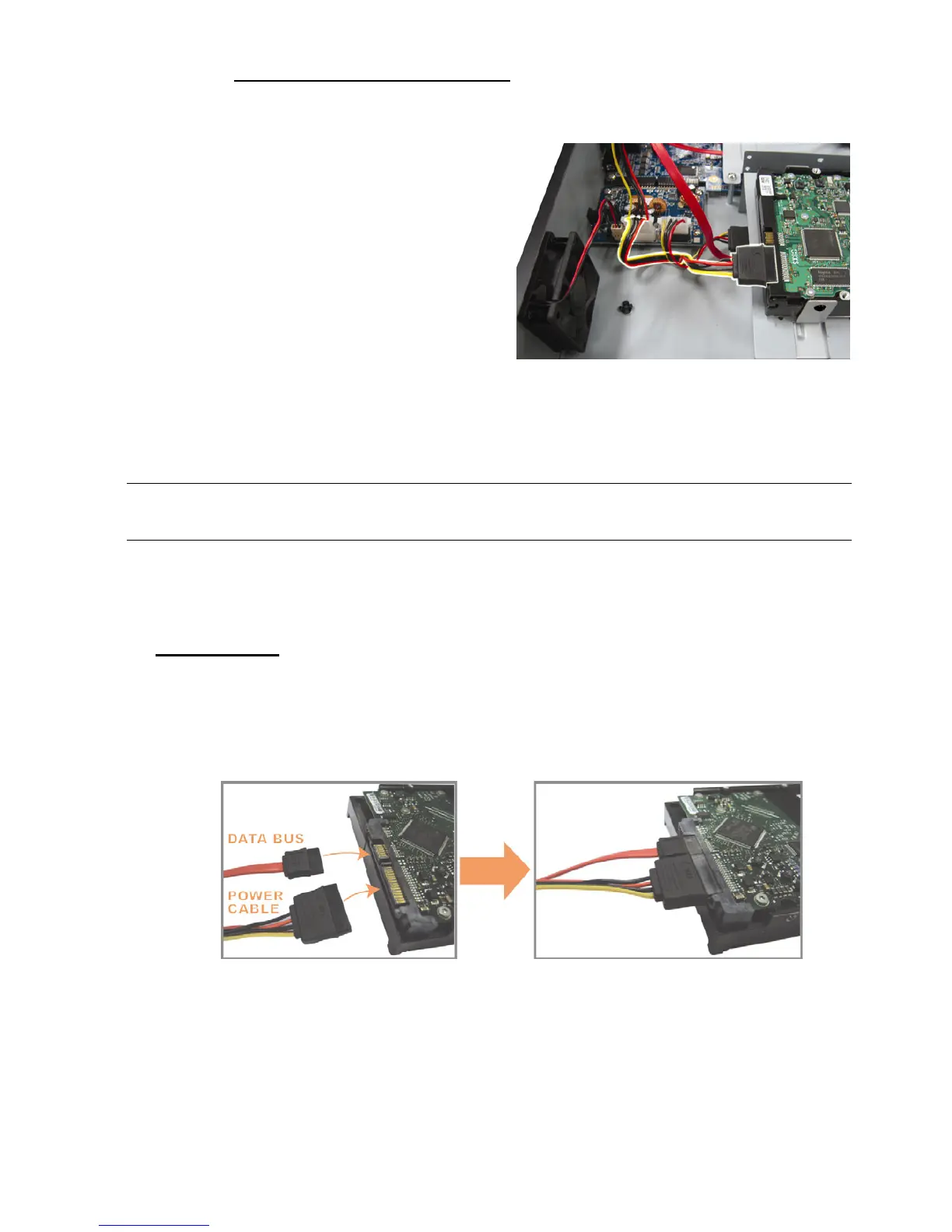

2-2 To install on the second bracket
Connect the power connector and
data bus connector to the HDD.
When connecting the power
cable, make sure the cable is
passed through the power cable
of DVD writer. This is to prevent
the HDD power cable from
interfering with the fan spinning.
Align the screw holes of the
bracket with the HDD’s screw
holes. Make sure the PCB side of
the HDD is facing up. Then,
fasten the HDD to the bracket.
Note: For DVD writer installation, please refer to “APPENDIX 7 DVD WRITER
INSTALLATION” at page 56.
Step3: Close the upper cover of the DVR, and fasten all the screws you loosened in
Step1.
For 4CH Model
Step1: Loose the screws on the upper cover and remove it from the DVR. Find the two
HDD brackets located on the DVR base.
Step2: Get a compatible HDD, and connect it to the power connector and data bus
connector.
Step3: Make sure the PCB side is facing up, and place the HDD between the HDD
brackets on the DVR base as shown below.
Make sure the other side of the HDD is contacted with the DVR base for
heat conduction.
