awave DSP6V4 - Page 8

PRODUCT BRIEF INTRODUCTION
[ 13 ]
PRODUCT BRIEF INTRODUCTION
[ 14 ]

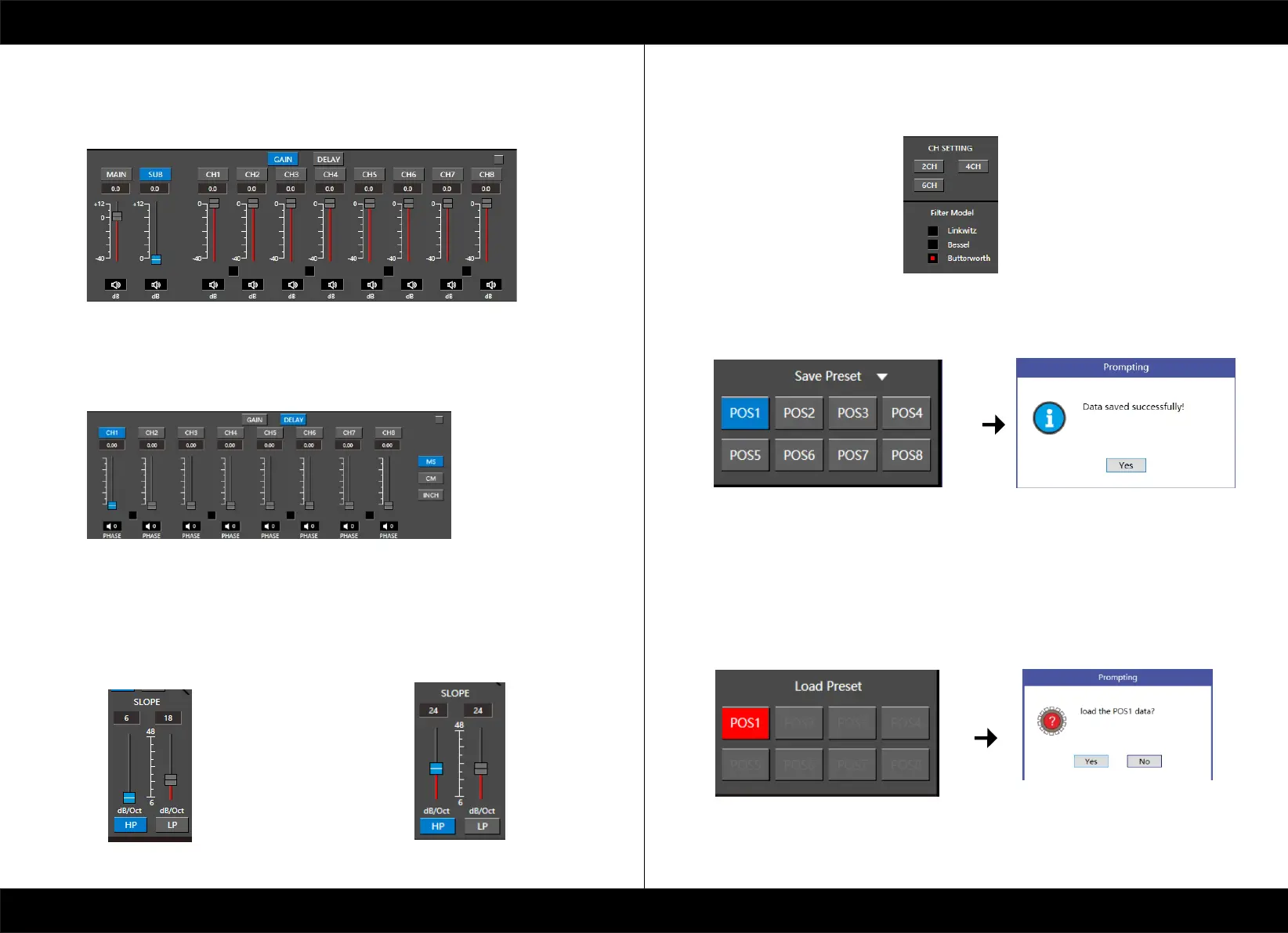

7. GAIN.
0--40dB is optional range for gain control kf every CH.
8. DELAY.
1.Auto configuration(base on 1.5 setting).
2.Manual configuration, change specifications in selected CH manually.
9. LP/SLOPE.
1.6dB/oct 12dB/oct 18dB/oct 24dB/oct 30dB/oct
36dB/oct. 42dB/oct 48dB/oct are available.
10. HP/SLOPE.
1.6dB/oct 12dB/oct 18dB/oct 24dB/oct 30dB/oct
36dB/oct.42dB/oct 48dB/oct are available.
12. WRITE.
To Write To Device(POS1-POS8).
11. Filter Model.
To choose different Filter type Linkwitz Bessel Butterworth.
13. READ.
To Read From Device(POS1-POS8).
