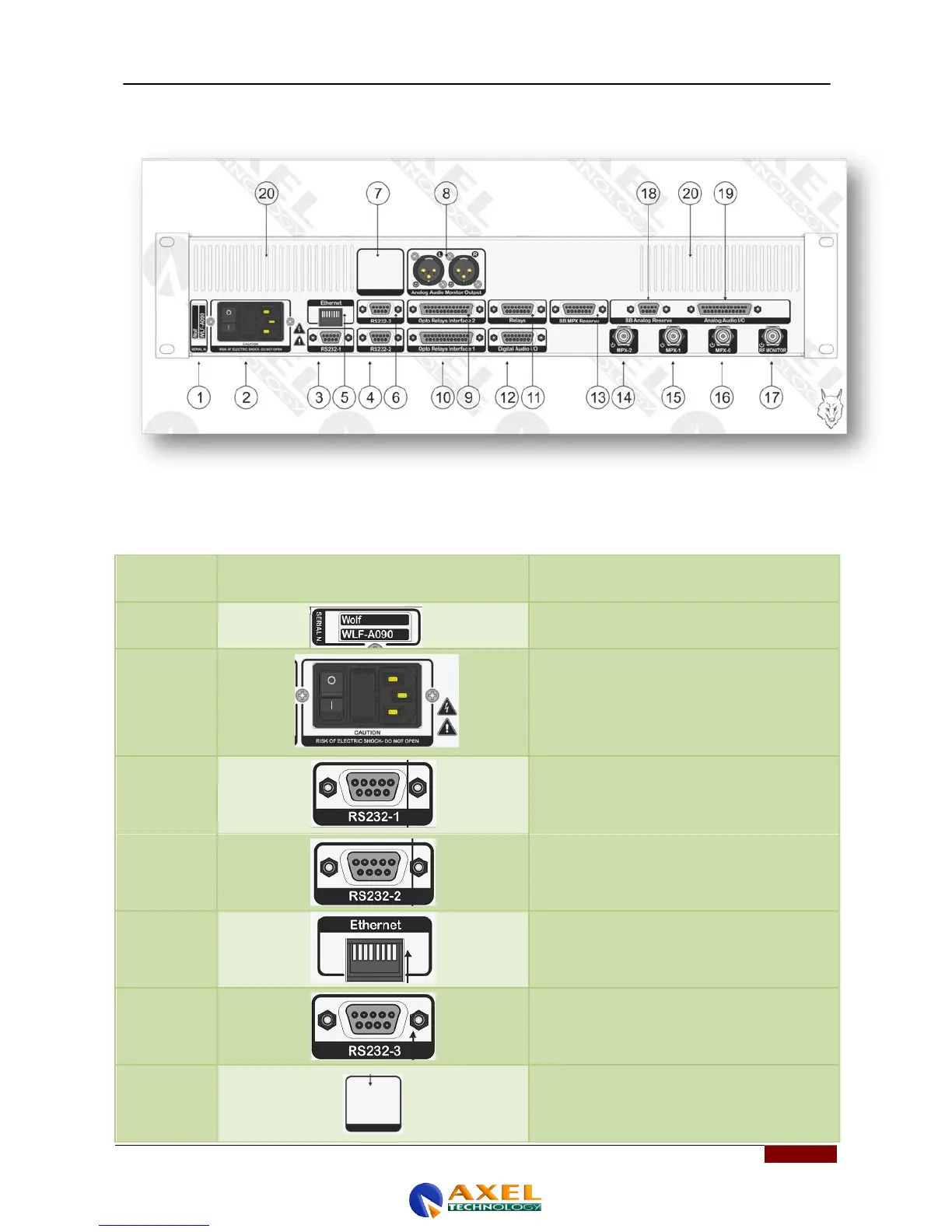

10.3 WOLF REAR PANEL
N°
FIGURE
DESCRIPTION
1
Label with device model and serial number
2
Power supply + fuse unit
3
RS232-1
RS-232 serial port n. 1. For Wolf device control
and monitoring and firmware upgrades
4
RS232-2
RS-232 serial port n.2. For Wolf device control
and monitoring
5
Ethernet
Ethernet port for connection to RJ-45
6
RS232-3
RS-232 serial port n. 3.
7
Vacancy for future implementations
