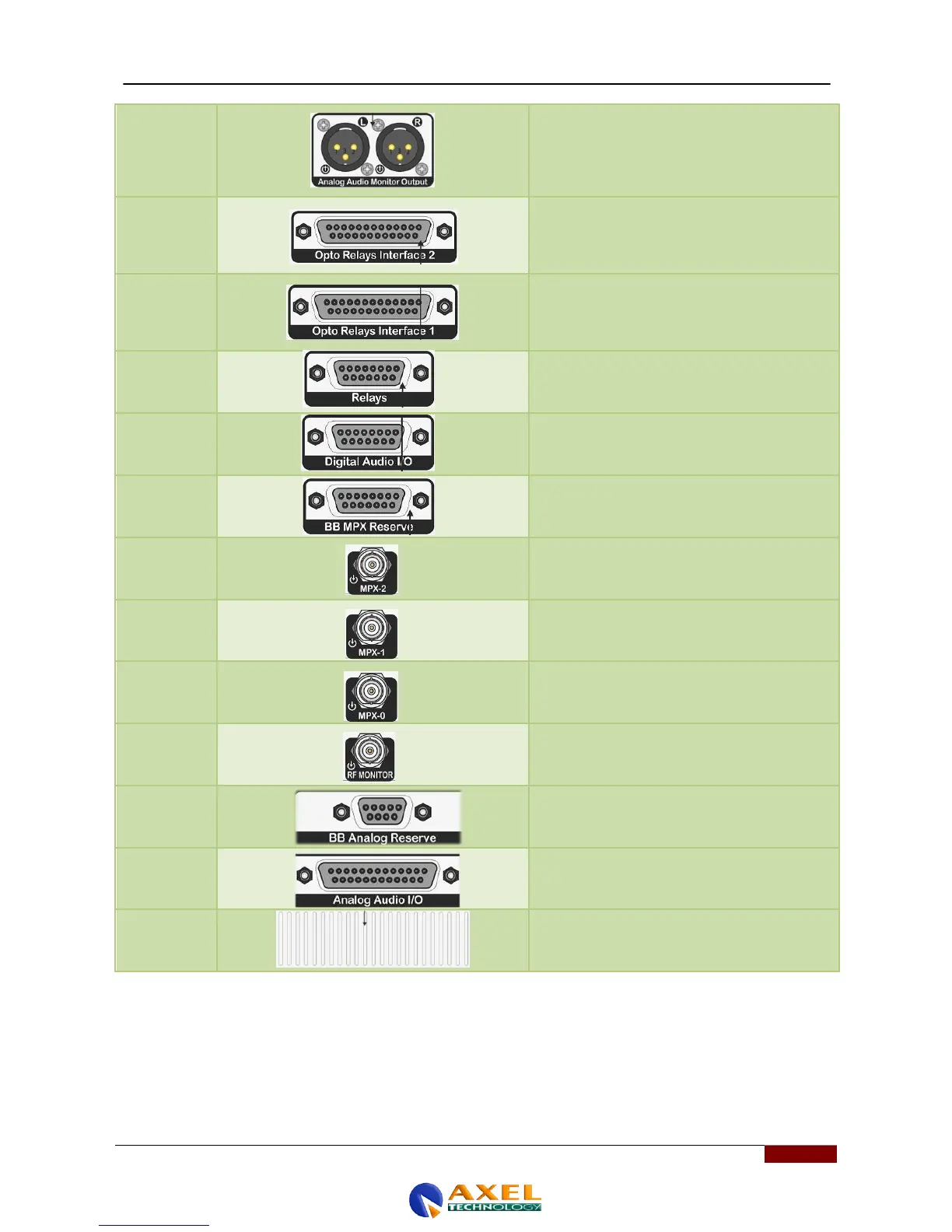

8
Analog Audio Monitor Output
Analog audio output for the monitor. This output is
available when you select the monitor from the
front panel, via the balanced line male XLR
connector.
9
Opto Relays Interface 2
Isolated opto relay interface for aux. services 2
(see technical appendix for specifications)
10
Opto Relays Interface 1
Isolated opto relay interface for aux. services 1
(see technical appendix for specifications)
11
Relays
Relay interface (see appendix)
12
Digital audio I/O
AES/EBU Digital Audio Input and Output
13
BB MPX Reserve
Connection socket for MPX Breakout Box
14
MPX-2
Secondary MPX input (Backup)
15
MPX-1
Primary MPX input (Main)
16
MPX-0
MPX input from Local Coder (MPX0)
17
RF MONITOR
MONITOR RF input from Transmitter Test RF
18
BB Analog Reserve
Breakout box for analog Backup inputs
19
Analog audio I/O
Socket for Analog Inputs and Outputs
20
Air intake slits Fans inside the WOLF ensure
forced air circulation
