AUTOMATIC WOLF MEASUREMENTS
24 AUTOMATIC WOLF MEASUREMENTS
This section looks at how the Wolf Network measurements and statuses are displayed. It shows the all the device‟s
operating parameters. The final section of the window shows a graphical view of the GP Input and GP Output statuses
and the Mask Alarm Reference Bar section provides a graphic display of the control status in a different colour.
Red/green shows whether the parameter is valid/invalid.

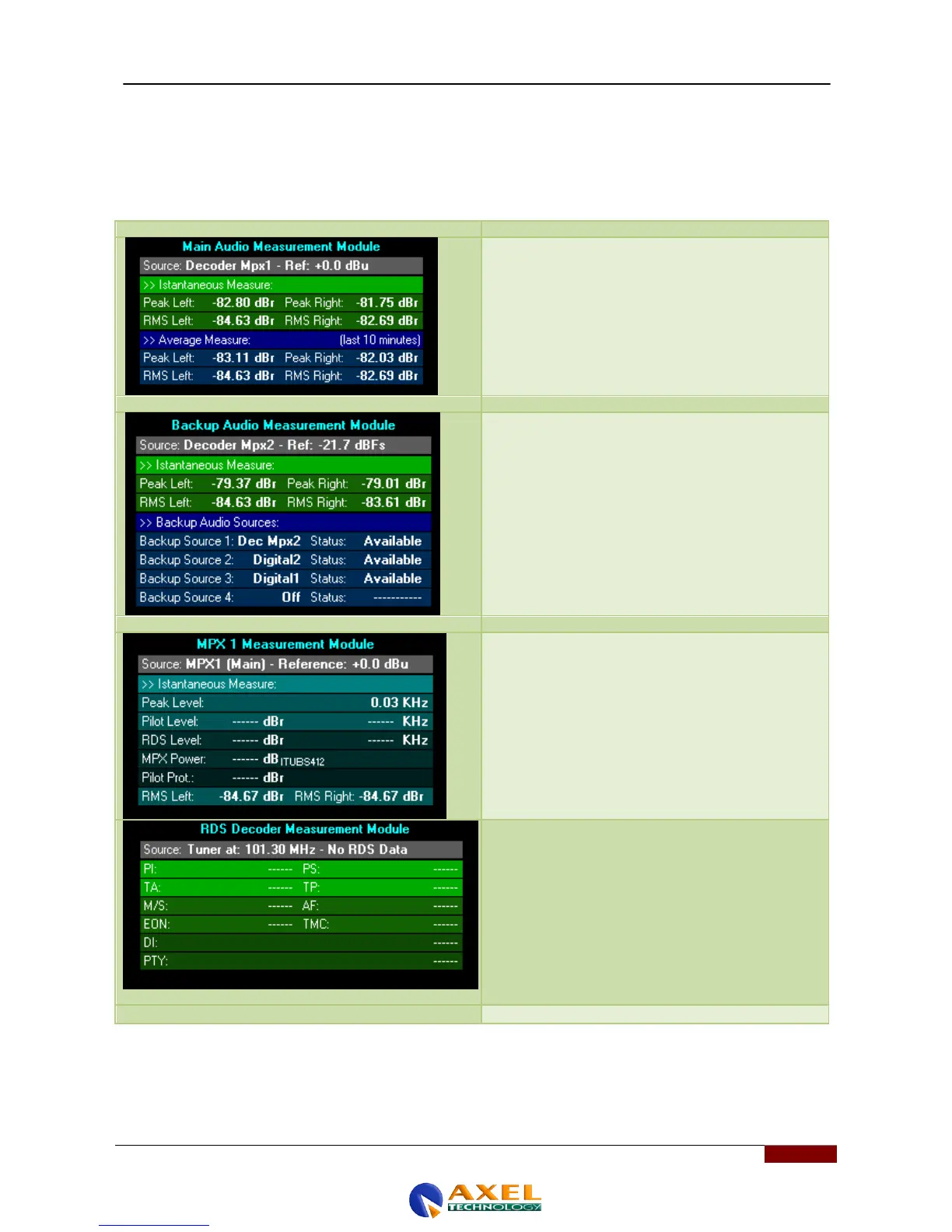

The Source window shows which source must be
considered by the Wolf Network as the primary source
or MAIN source, with the relative reference and
instantaneous measurements and averages calculated
in 10-minute slots.
The Backup Audio Measurement Module window
displays the Audio Backup sources with their relative
ranking (Dec MPX2 - Digital2 - Digital1 - Off) as well as
the source status (Available/Not Available)
This window shows the individual measurement of each
MPX decoder module. Sources available are: MPX-1,
MPX-2, MPX-0, and FM MPX .
The RDS Decoder Measurement Module window
displays the status of the various parameters of the the
Radio Data System service within the MPX signal
connected to the Tuner. The source in this case could
also be changed from Tuner to MPX-1, MPX-2 or MPX-
2-0
