RTP120 All-in-One 12.1” TFT LCD Panel PC User’s Manual
Hardware Installation
20

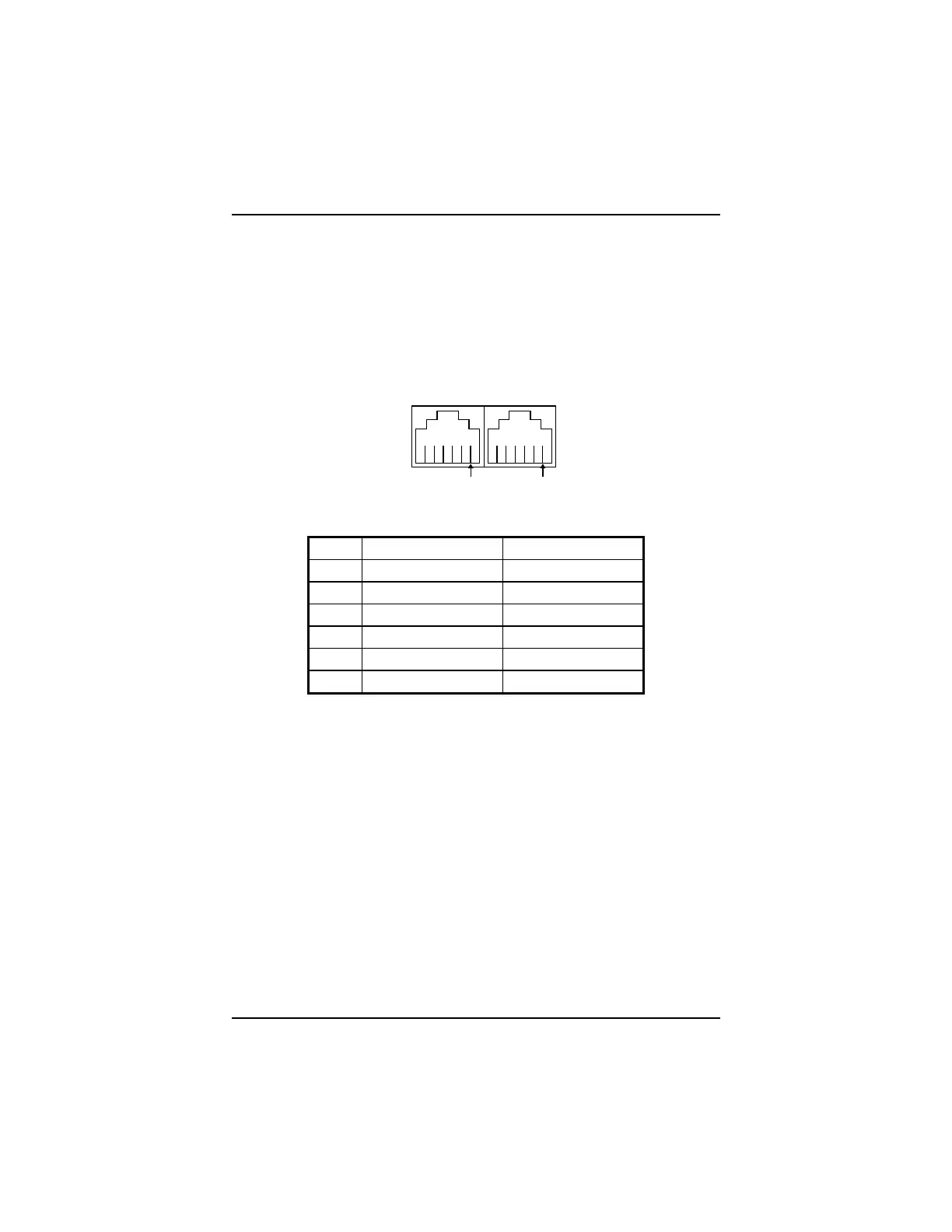

3.8 Cash Drawer (RTP120-610e only)
The RTP120-610e provides two cash drawer port. It can be used to
control the opening and closing of the cash drawer on a POS system.
The cash drawer Jack is follower Epson cash drawer spec. pin
position and pin assignment are shown below.
P1 P1
DRW2 DRW1
RTP120-610e Cash Drawer Pin Assignment
Pin DRW1 DRW2
P1 FG(GND) FG(GND)
P2 Drawer SOL-1 Drawer SOL-2
P3 Drawer SW-1 Drawer SW-2
P4 +24V +24V
P5 N/A N/A
P6 GND GND
3.9 Keyboard and Mouse
The RTP120 series provides a standard PS/2 keyboard and a PS/2
mouse connector located at the bottom of panel.
