Axis 223M Datasheet

Technical specifications – AXIS 223M Network Camera
www.axis.com
©2008 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, ETRAX, ARTPEC and VAPIX are registered trademarks or trademark applications of Axis AB
in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. We reserve the right
to introduce modifications without notice.
32713/EN/R1/0809
Camera
Image sensor
1/2.7” Progressive scan RGB CCD
Lens
4.0 – 8.0 mm, F1.4, DC-iris, C mount
The camera can be used with C or CS mount lens
Angle of view, horizontal: 38° – 72°
Minimum
illumination
Color: 1.5 lux, F1.4
B/W: 0.2 lux, F1.4
Shutter time
1/7500 s to 2 s
Video
Video
compression
MPEG-4 Part 2 (ISO/IEC 14496-2)
Motion JPEG
Resolutions
160x120 – 1600x1200
Frame rate
MPEG-4
Up to 12 fps at 640x360, 9 fps at 640x480
Frame rate
Motion JPEG
Up to 12 fps at 1600x900, 9 fps at 1600x1200
Video streaming
Simultaneous MPEG-4 and Motion JPEG
Controllable frame rate and bandwidth
VBR/CBR MPEG-4
Image settings
Compression, color, brightness, sharpness, contrast,
white balance, exposure control, exposure area, backlight
compensation, rotation, fine tuning of behavior at low light
Text and image overlay
Privacy mask
Audio
Audio streaming
Two-way, half duplex
Audio
compression
AAC LC 8/16 kHz
G.711 PCM 8 kHz
G.726 ADPCM 8 kHz
Configurable bit rate
Audio input/
output
External microphone input or line input, line level output
Network
Security
Password protection, IP address filtering, HTTPS encryption,
IEEE 802.1X network access control, user access log
Supported
protocols
IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour,
UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP,
TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX®
from Axis Communications available at www.axis.com
Intelligent video
Video motion detection, active tampering alarm, audio detection
Alarm triggers
Intelligent video, IR-cut filter, temperature and external input
Alarm events
File upload via FTP, HTTP and email
Notification via email, HTTP and TCP
External output activation
Video buffer
36 MB pre-and post alarm
General
Casing
Aluminum
Processors and
memory
ETRAX FS, ARTPEC-2, 64 MB RAM, 8 MB Flash
Power
7 – 24 V DC, max 6 W
10 – 24 V AC, max 8 VA
Power over Ethernet IEEE 802.3af, Class 2
Connectors
RJ-45 for 10BASE-T/100BASE-TX, DC jack
Terminal block for 2 alarm inputs, 1 output and
RS485/422 half duplex
D-sub for RS-232
3.5 mm mic/line in, 3.5 mm line out
Operating
conditions
0 – 50 °C (32 – 122 °F)
Humidity 20 – 80% RH (non-condensing)
Approvals
EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3,
EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B,
VCCI Class B, C-tick AS/NZS CISPR22, ICES-003 Class B,
EN 60950-1
Power supply: EN 60950-1, UL, cUL
Weight
620 g (1.37 lb.)
Included
accessories
Installation Guide, CD with User’s Manual, recording software,
installation and management tools, mounting and connector
kits, power supply, CS mount ring for alternative CS lens,
Windows decoder 1-user license
More information is available at www.axis.com

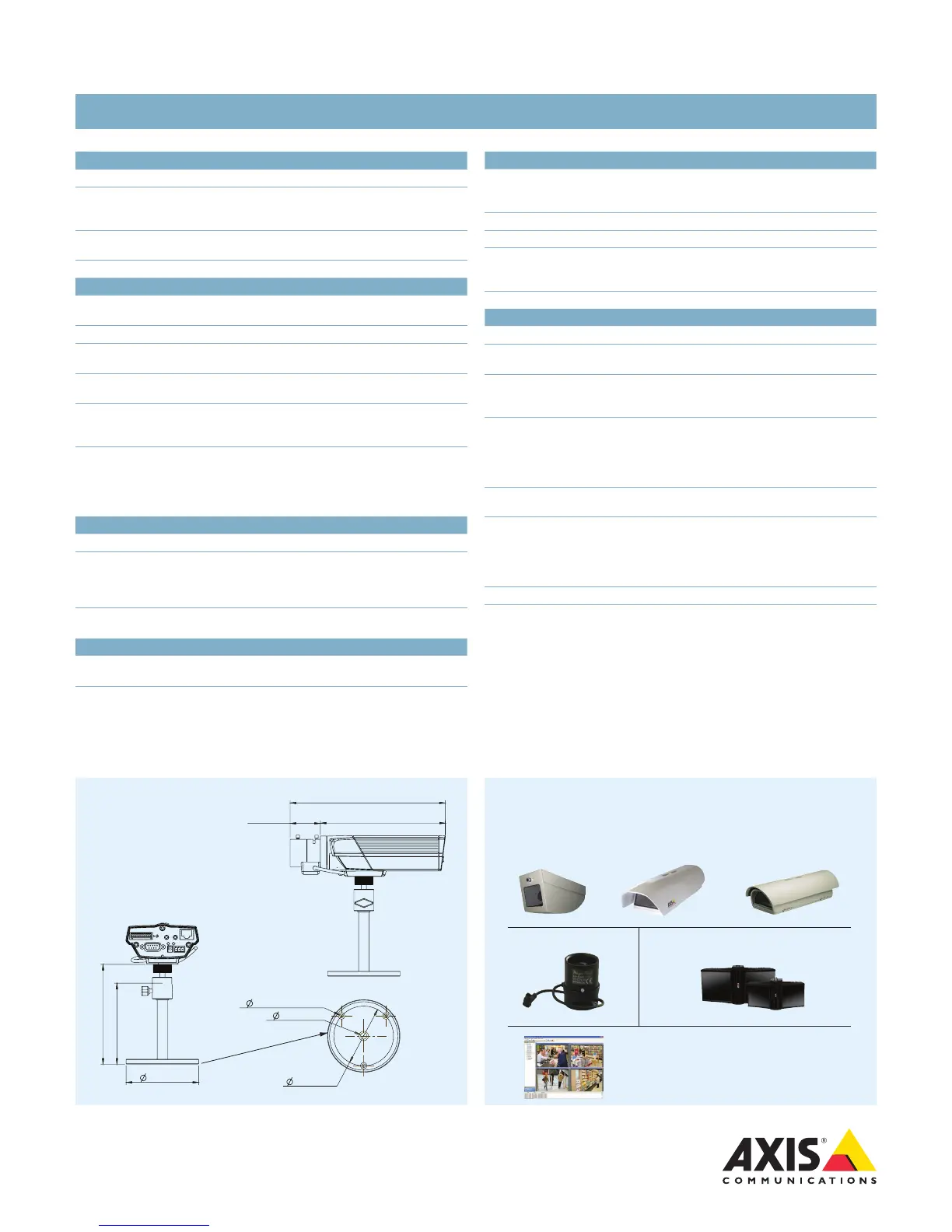

Dimensions Optional accessories
For information on AXIS Camera Station and
video management software from
Axis’ Application Development Partners,
see www.axis.com/products/video/software/
T90A IR Illuminators
Various housings
Lenses
4.5 mm (0.18”) (x3)
8 mm (0.32”)
72 mm (2.8”)
186 mm (7.3”)
36 mm (1.4”)
150 mm (5.9”)
120 mm (4.7”)
97 mm (3.8”)
87 mm (3.4”)

Axis 223M Specifications

General

Megapixel	2 MP
Focal length range	4 - 8 mm
Maximum frame rate	12 fps
Maximum video resolution	1600 x 1200 pixels
Sensor type	CCD
Product color	Gray
Focus	1.4
I/O ports	RS-232 RS-485/422
Security features	Multi-level password, IP address filtering, HTTPS encryption.
Dimensions (WxDxH)	88 x 200 x 49 mm
Compliance industry standards	IEEE 802.1X, IEEE 802.11g/b

Weight and Dimensions

Weight	620 g
