Axis A8105-E - 1.5 Cable Management and Dimensions

AXIS A8105-E installation

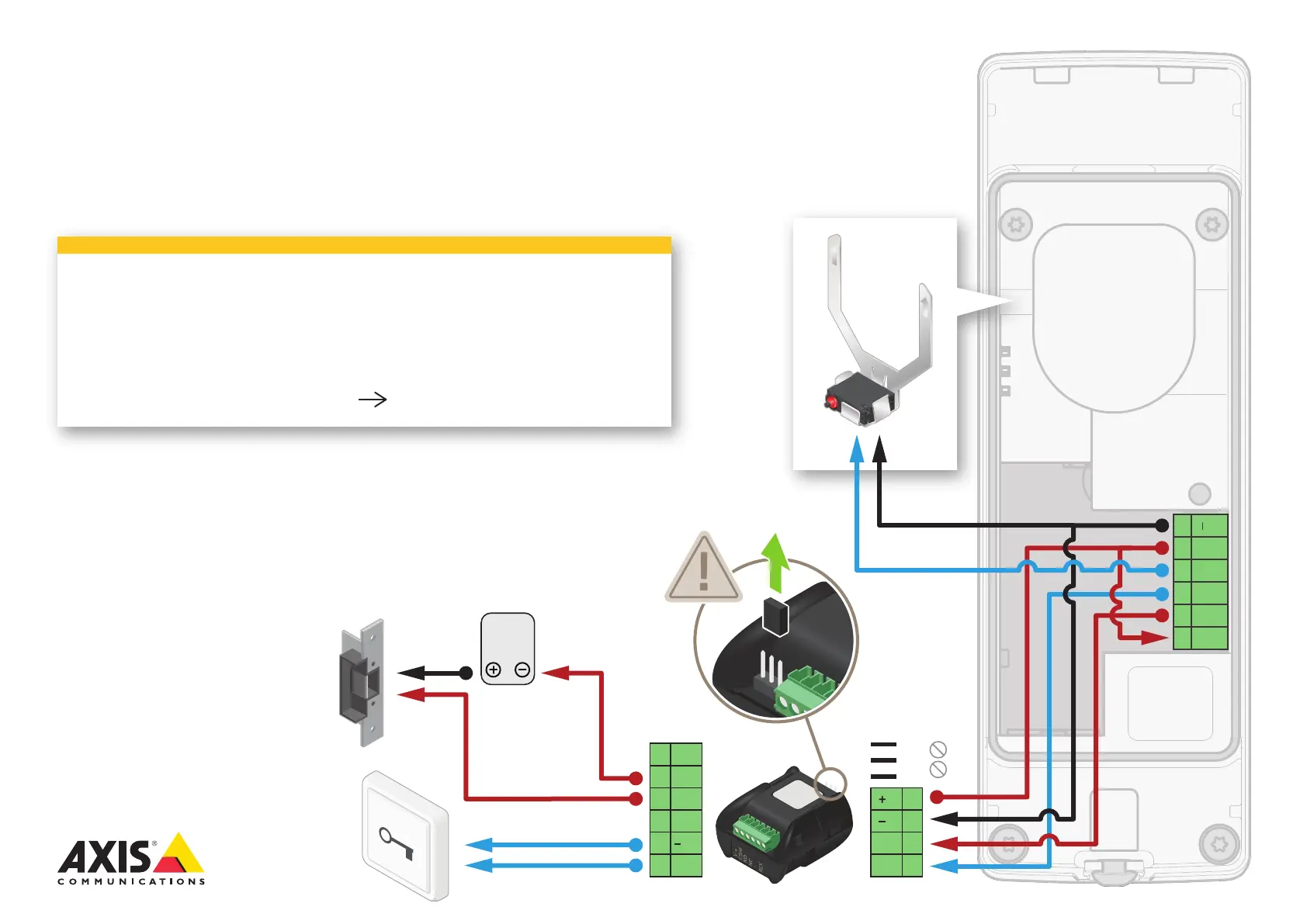

12V Fail-secure lock powered by external power supply
Recommended setup using AXIS TA8501 Physical Tampering Switch
These instructions apply when you use the recommended setup
for AXIS TA8501 Physical Tampering Switch with AXIS A9801
Security Relay.
See conguration on next page
Page 1/2
12V l01 l02
CO
NO/ NC
I/O
REL
12V
24V
V+
COM
NO
NC
REX
Power
supply
Max 30V,
Max 1.2A
