INSTALLATION
PRECAUTIONS
• Carefully choose the mounting location so normal driving is not hindered.
• Avoid installing the unit where it would be subject to high temperatures (direct sunlight or hot air
from the heater) or where it would be subject to dust, dirt or excessive vibration.
• Only use mounting hardware supplied for a safe and secure installation.
• Remove the front panel before installing the unit.
Mounting angle adjustment
Adjust the mounting angle to less than 20°.

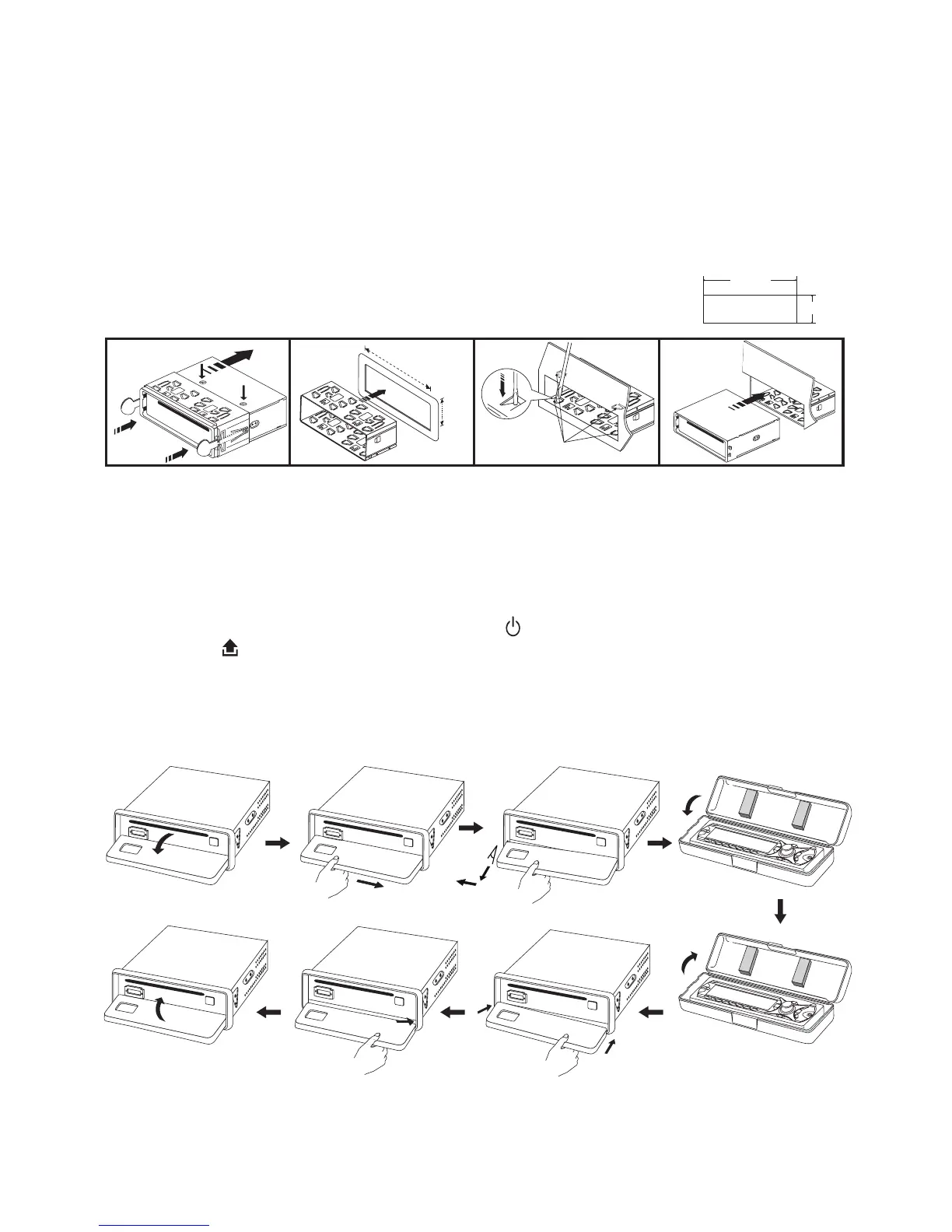

MOUNTING EXAMPLE
Installation in the dashboard
Note: Keep the release key in the safe place as you may need it in future to remove the unit from
the car.
Detaching and attaching the front panel
The front panel of this unit can be detached in order to prevent theft.
FOLDING DOWN AND DETACHING/ATTACHING THE FRONT PANEL
Before detaching the front panel, be sure to press the button (1) OFF rst.
Then press the button (16), to fully open the front panel. Release the panel by pulling it towards
you as illustrated..
• Do not exert unnecessary pressure on the front panel when attaching it.
• Please use the supplied case when the front panel is removed.
