3.3.3 Resolution guide
The eld of view visualization provides a resolution guide. The resolution guide shows a line or plane
through the eld of view visualization at the distance from the camera where the resolution set by FOV
Target Resolution, is met.
3.4 Views
The cameras and the eld of view visualization can be viewed in oor plans, sections and 3D views.
3.4.1 Floor Plan Cut Plane
The oor plan view will show the part of the led of view visualization that is located below the level
dened by the Cut Plane setting. This means that the oor plan view shows the area where an object at
least as tall as the Cut Plane level will be fully or partially visible. To adjust the Cut Plane level:
> Select the oor plan view
> Open the View Range dialog by clicking the Edit… button for the View Range property below the
Extents divider
> Enter the new cut plane oset value
> Click OK

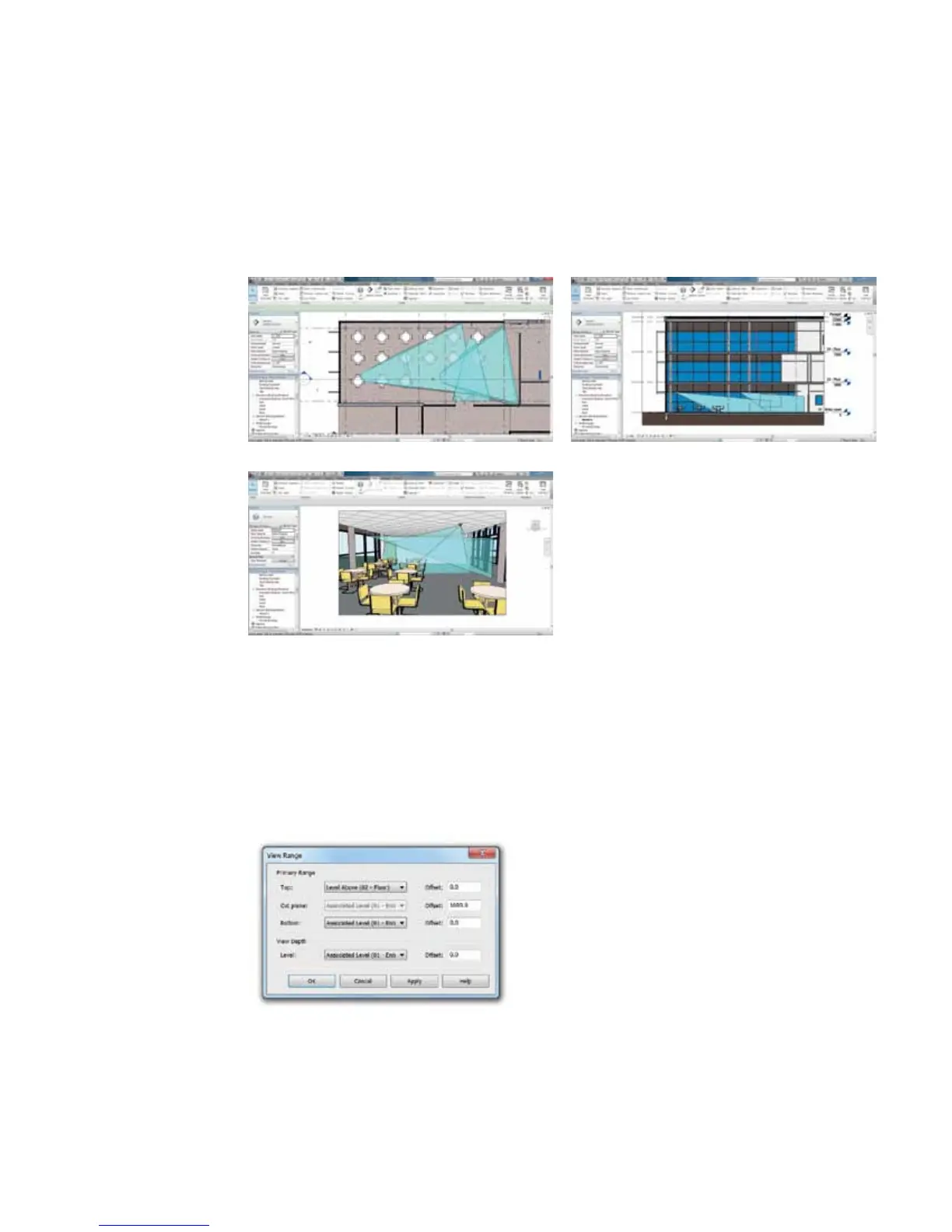

Floor plan Section
3C view
