Axis M1065-L User Manual

AXISM1065-LNetworkCamera
Additionalsettings

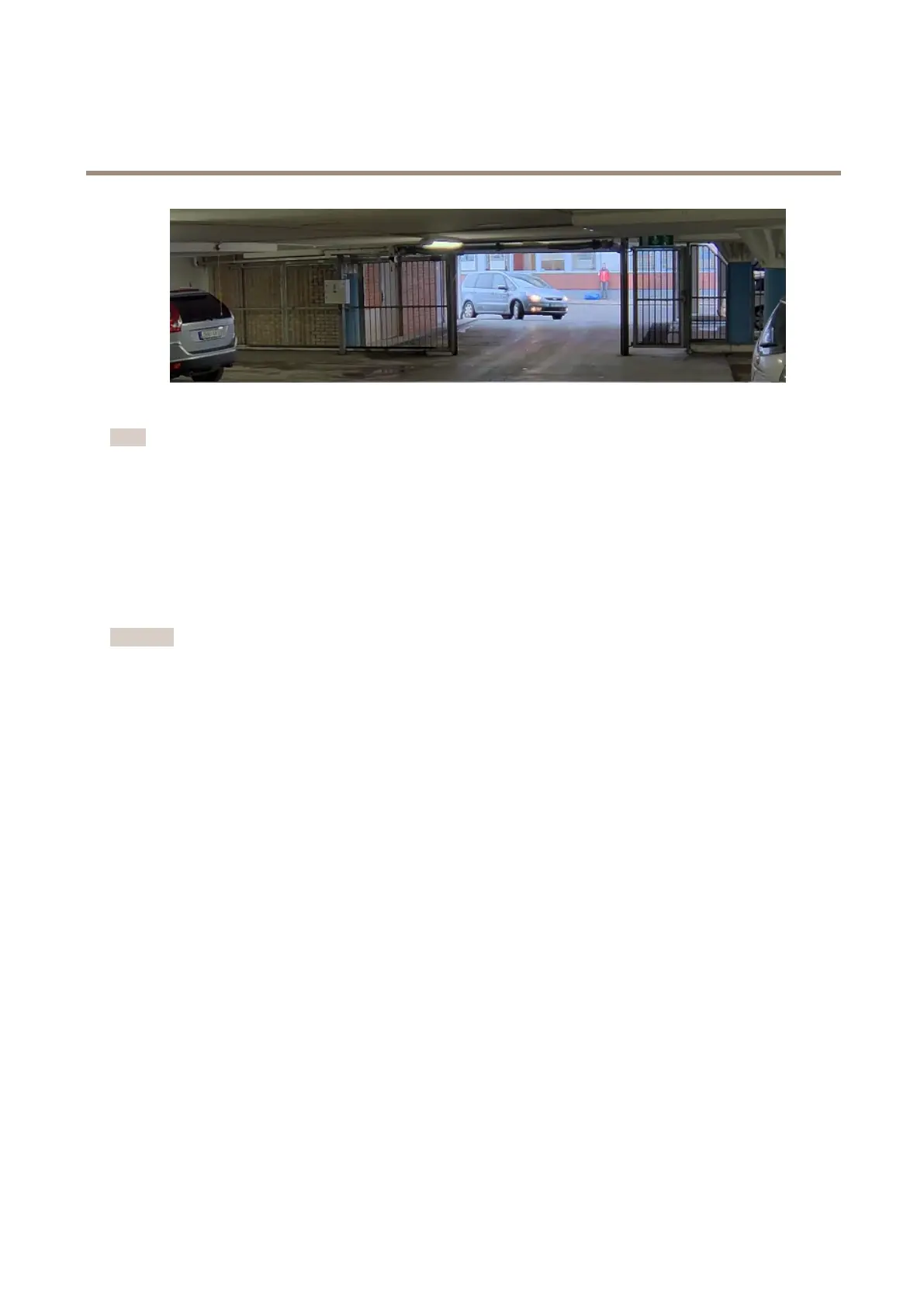

ImagewithWDR.
Note
WDRmaycauseartifactsintheimage.
FindoutmoreaboutWDRandhowtouseitataxis.com/web-articles/wdr.
Viewandrecordvideo
Tolearnmoreaboutsettingsforviewingandrecordingvideo,seeStreamingandstorageonpage12.
Reducebandwidthandstorage
Important
Ifyoureducethebandwidthitcanresultinlossofdetailsinthepicture.
1.GotoliveviewandselectH.264.
2.GotoSettings>Stream.
3.Dooneormoreofthefollowing:
-TurnontheZipstreamfunctionalityandselectthedesiredlevel.
-TurnondynamicGOPandsetahighGOPlengthvalue.
-Increasethecompression.
-TurnondynamicFPS.
Setupnetworkstorage
Tostorerecordingsonthenetwork,youneedtosetupnetworkstorage:
1.GotoSettings>System>Storage.
2.ClickSetupunderNetworkstorage.
3.EntertheIPaddressofthehostserver.
4.Enterthenameofthesharedlocationonthehostserver.
5.Movetheswitchifthesharerequiresalogin,andenterusernameandpassword.
6.ClickConnect.
9

Axis M1065-L Specifications

General

Type	IP security camera
PTZ control	Yes
Certification	EMC, IEC/EN/UL 60950-1, IEC/EN 62471, EN 62471
Languages support	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, KOR, POR, RUS
Number of languages	11
Placement supported	Indoor
Connectivity technology	Wired
Form factor	Cube
Mounting type	Wall
Product color	White
Housing material	Aluminium, Plastic, Polycarbonate (PC)
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Video formats supported	AVC, H.264, M-JPEG, MPEG4
Image quality adjustment	Brightness, Contrast, Sharpness
Video compression formats	AVC, H.264, M-JPEG, MPEG
Supported graphics resolutions	320 x 240, 1920 x 1080 (HD 1080)
Angle of rotation	180 °
Camera shutter type	Electronic
Camera shutter speed	1/32500 - 1/5 s
Minimum illumination	0.05 lx
Field of view (FOV) angle	110 °
Sensor type	CMOS
Optical sensor size	1/3 \
Focus adjustment	2.0
Fixed focal length	2.8 mm
Security algorithms	HTTPS, SMTP-AUTH, SNMP, SSL/TLS
Password protection type	User
Flash memory	256 MB
Internal memory	512 MB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
LED type	IR
Wi-Fi	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3af
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP
Sample rate	16 kHz
Audio system	2-way
Voice codecs	G.711, G.726
Audio formats supported	AAC, ADPCM, G.711, G.726, PCM
Signal-to-Noise Ratio (SNR)	82 dB
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Power source type	PoE
Power consumption (typical)	2.7 W
Power consumption (Power over Ethernet (PoE))	4.8 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85 %
Video resolutions	320 x 240, 1920 x 1080 pixels
Lens mount interface	M12
Harmonized System (HS) code	85258900

Weight and Dimensions

Depth	37 mm
Width	60 mm
Height	106 mm
Weight	134 g
