AXISP13-ESeries

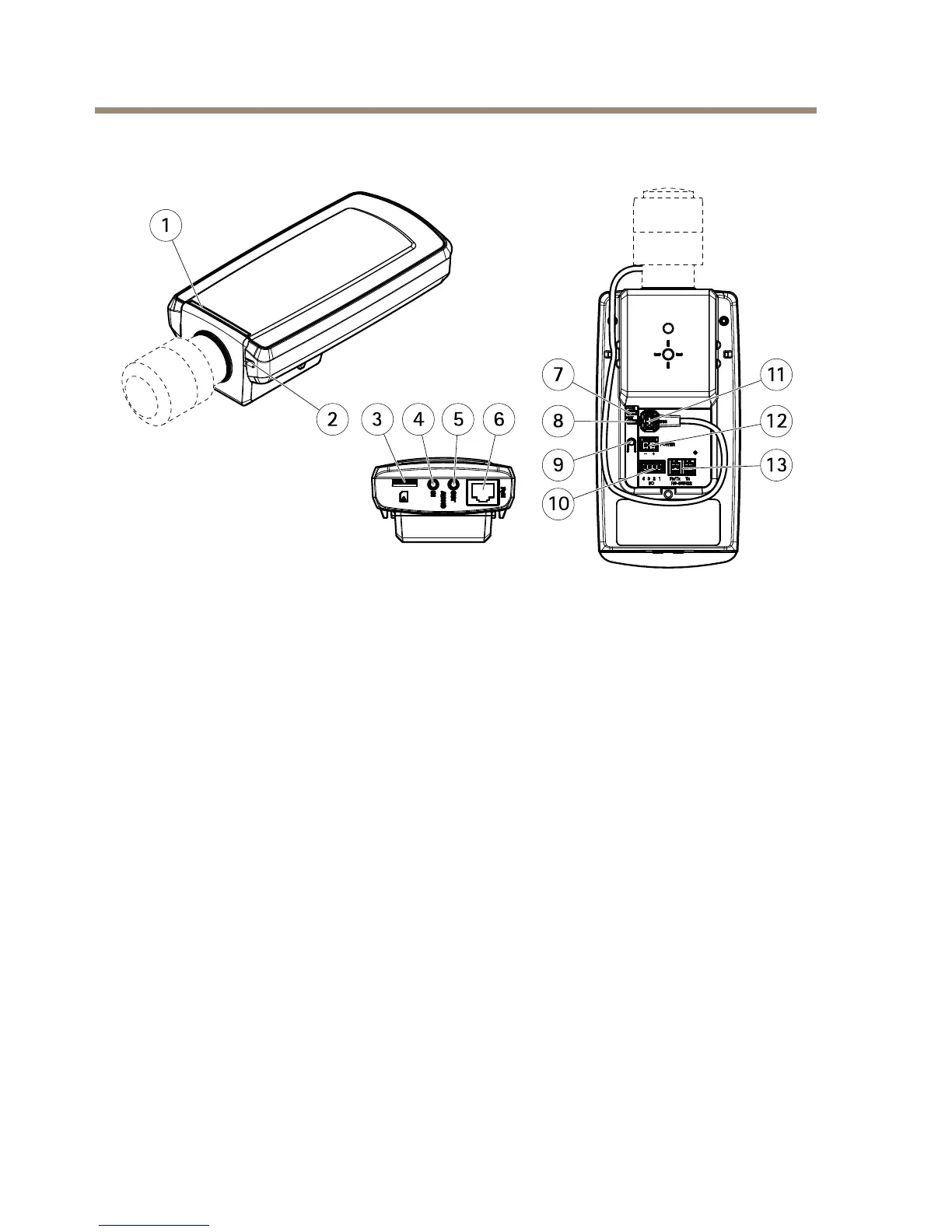

HardwareOverview
1
StatusLED
2
Built-inmicrophone
3
microSDcardslot
4
Audioin
5
Audioout
6
Networkconnector(PoE)
7
PowerLED
8
NetworkLED
9
Controlbutton
10
I/Oconnector
11
Irisconnector
12
Notused
13
RS485/422connector
10
