Install the AXIS T8123 High PoE Midspan 1-port
AXIS T8123 High PoE Midspan 1-port enables Axis network video products with high power
consumption to receive data and power over the same Ethernet cable. Follow these instructions to
connect AXIS T8123.
1. Connect AXIS T8123 (Data in) to the network switch using a standard network cable.
2. Connect AXIS T8123 (Data and Power Out) to the network camera, using the network cable that
has been connected to the camera.
3. Connect AXIS T8123 to an AC outlet (100–240 V AC), using the supplied power cable.
For information on the LEDs on the midspan, see AXIS T8123 Status indicators, on page 21.

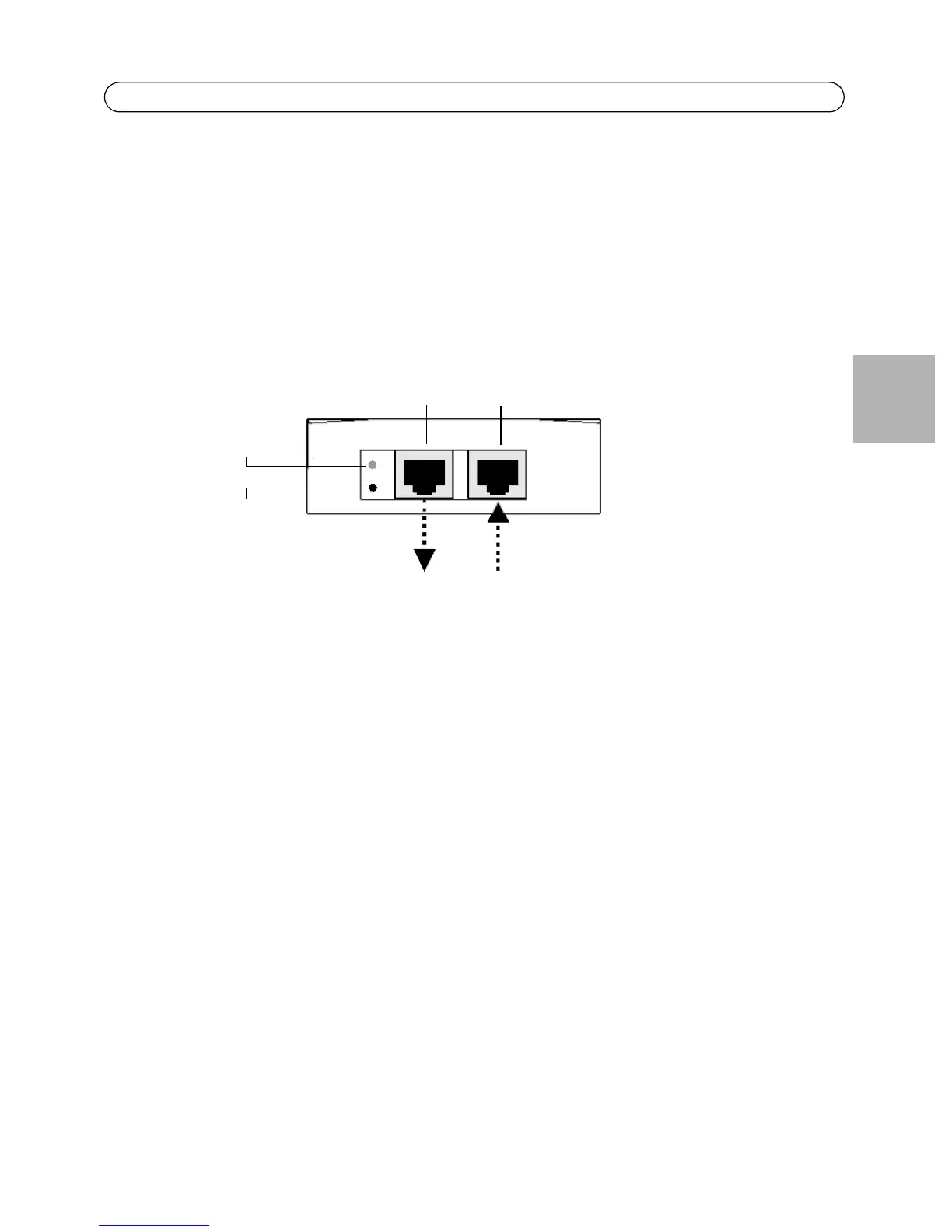

Data &
Power out
Data in
Port
AC Input
connectivity
indicator
connectivity
indicator
Network camera Ethernet
AXIS T8123
