AXIS P5532/P5534 Installation Guide Page 7
ENGLISH
Replace the clear/smoked dome cover (optional)
1. Loosen the 4 top cover screws and remove the top cover, see illustration on page 5.
2. Remove the 6 dome ring screws and remove the dome ring from the top cover.
3. Attach the dome ring and the dome cover to the top cover and secure by tightening the 6
screws.
4. If installing an SD card, refer to the instructions Install an SD card (optional), below.
5. Put the top cover back in its original position and fasten the screws.
Note:
Be careful not to scratch or damage the dome cover. Use a soft cloth to wipe clean before
attaching the dome cover to the camera unit.
Install an SD card (optional)
1. Loosen the 4 top cover screws and remove the top cover, see illustration on page 5.
2. Insert an SD card (not included) into the SDHC (Secure Digital High Capacity) card slot.
3. Put the top cover back in its original position and fasten the screws.
Note:
The SD card is automatically mounted when inserted into the SDHC card slot. However,
before removing the SD card it should be unmounted through the camera’s web pages. Go
to Setup > System Options > Storage > SD Card and click Unmount. For more informa-
tion, please see the User’s Manual available from the AXIS Network Video Product CD sup-
plied with this product or from the website at www.axis.com
Hard ceiling mount
1. Prepare the ceiling for installation of the mounting plate, use the supplied drill template to
position the holes. Make sure to use drill bits, screws, and plugs that are appropriate for the
material.
2. Install the mounting plate.
3. Loosen the 4 camera base lid screws and remove the camera base lid, see illustration on page 5.

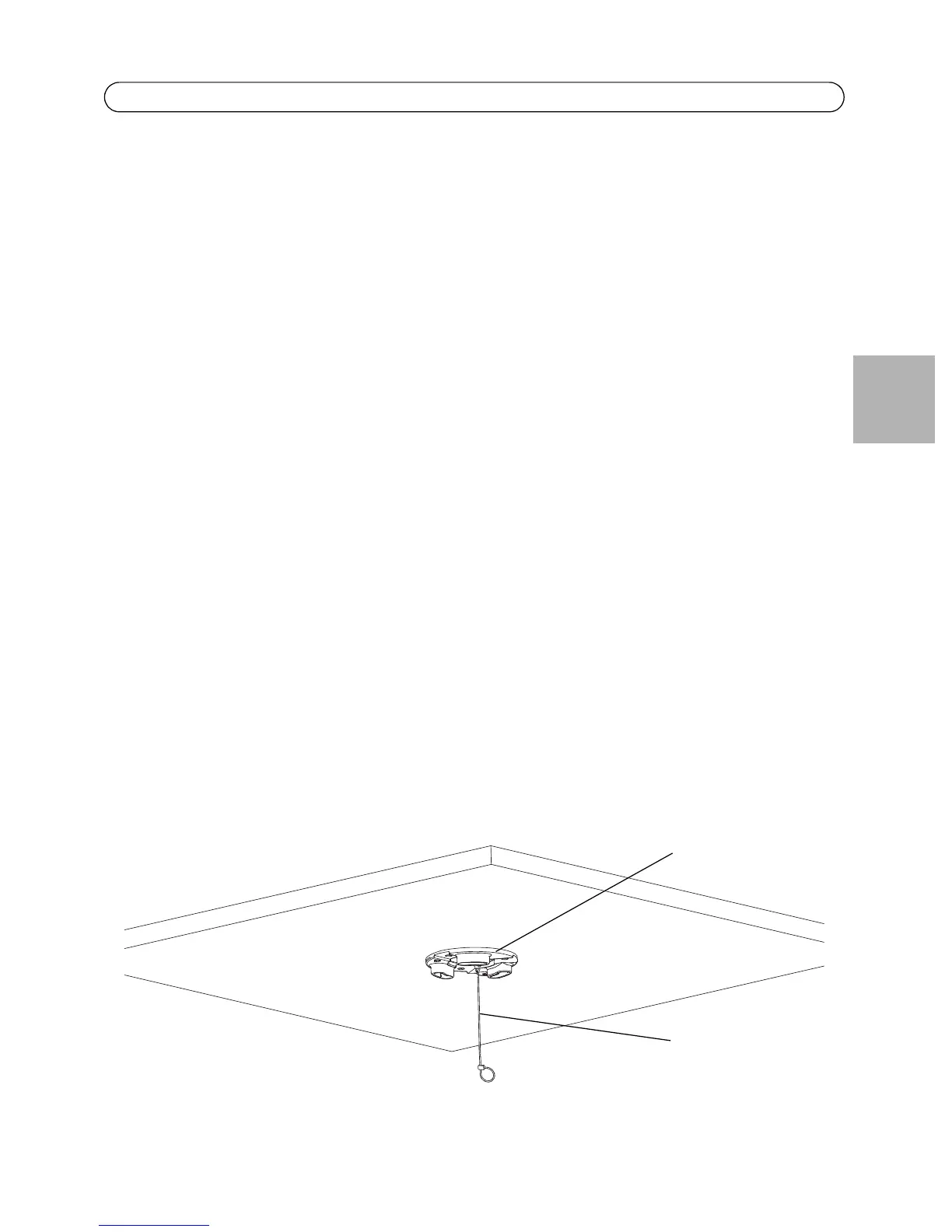

Mounting plate
Security wire
