Axis Q6054 Mk III User Manual

AXISQ6054MkIIIPTZNetworkCamera
Specifications
Multiconnector
Terminalconnectorforconnectingexternalequipment:
•Audioequipment
•Input/Output(I/O)devices
•AC/DCpowersupply
Whenconnectingexternalequipment,aseparatelysoldAxismulticableisrequiredinordertomaintaintheproduct’sIPrating.
Formoreinformation,seeMulticableconnectorsonpage22.
Multicableconnectors

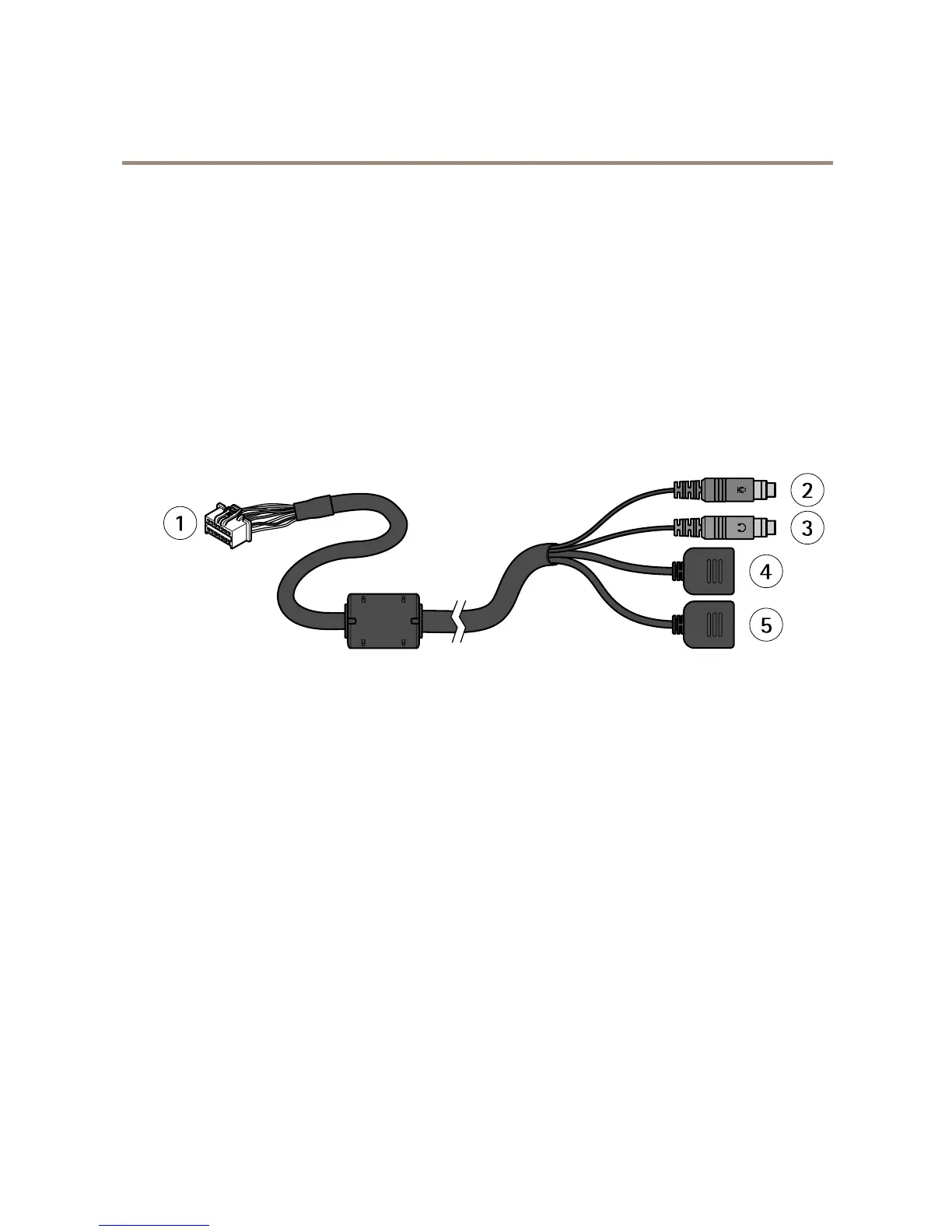

Multicableoverview
1
Cameramulticonnector
2
Audioin(pink)
3
Audioout(green)
4
Powerconnector,3-pin
5
I/Oterminalblock,6-pin
Themulticableprovidesthefollowingconnectors:
Powerconnector-3-pinterminalblockusedforpowerinput.UseaSafetyExtraLowVoltage(SELV)compliantlimitedpowersource
(LPS)witheitheraratedoutputpowerlimitedto≤100Woraratedoutputcurrentlimitedto≤5A.
22
