AXISQ8665-LEPTZNetworkCamera

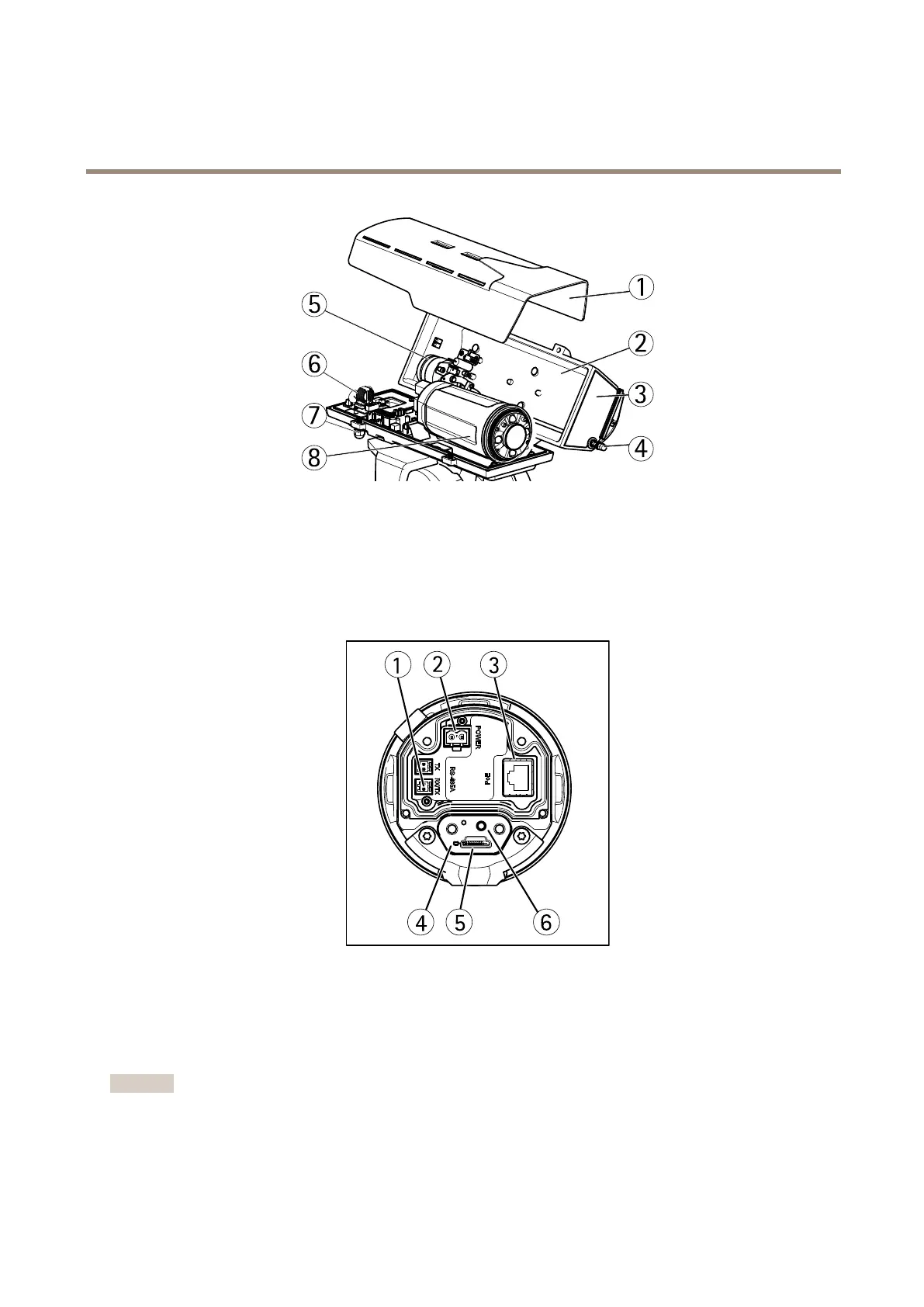

Hardwareoverview
1
Sunshield
2
Topcover
3
Protectivewindow
4
Wiper
5
Wipermotor
6
Illuminatorcircuitboard
7
Illuminatorcableglands
8
Cameraunit
1
RS485/RS422connector
2
Powerconnector
3
Networkconnector
4
StatusindicatorLED
5
microSDmemorycardslot
6
Controlbutton
Important
Donotchangethepositionoftheswitch-onthresholdregulator.
8
