Axis Q8665-LE - Hardware Overview

AXISQ8665-LEPTZNetworkCamera
Hardwareoverview
Hardwareoverview
Forspecicationsofthehardwarecomponents,seeTechnicalspecicationsonpage63.
•ForanoverviewofthehousingunitseeHousingUnitonpage8
•Foranoverviewofthebuttonsandconnectorsonthecamera,seeCameraUnitonpage8
•Foranoverviewoftheilluminators,seepage8
•Foranoverviewofthelightsensorbox,seepage9

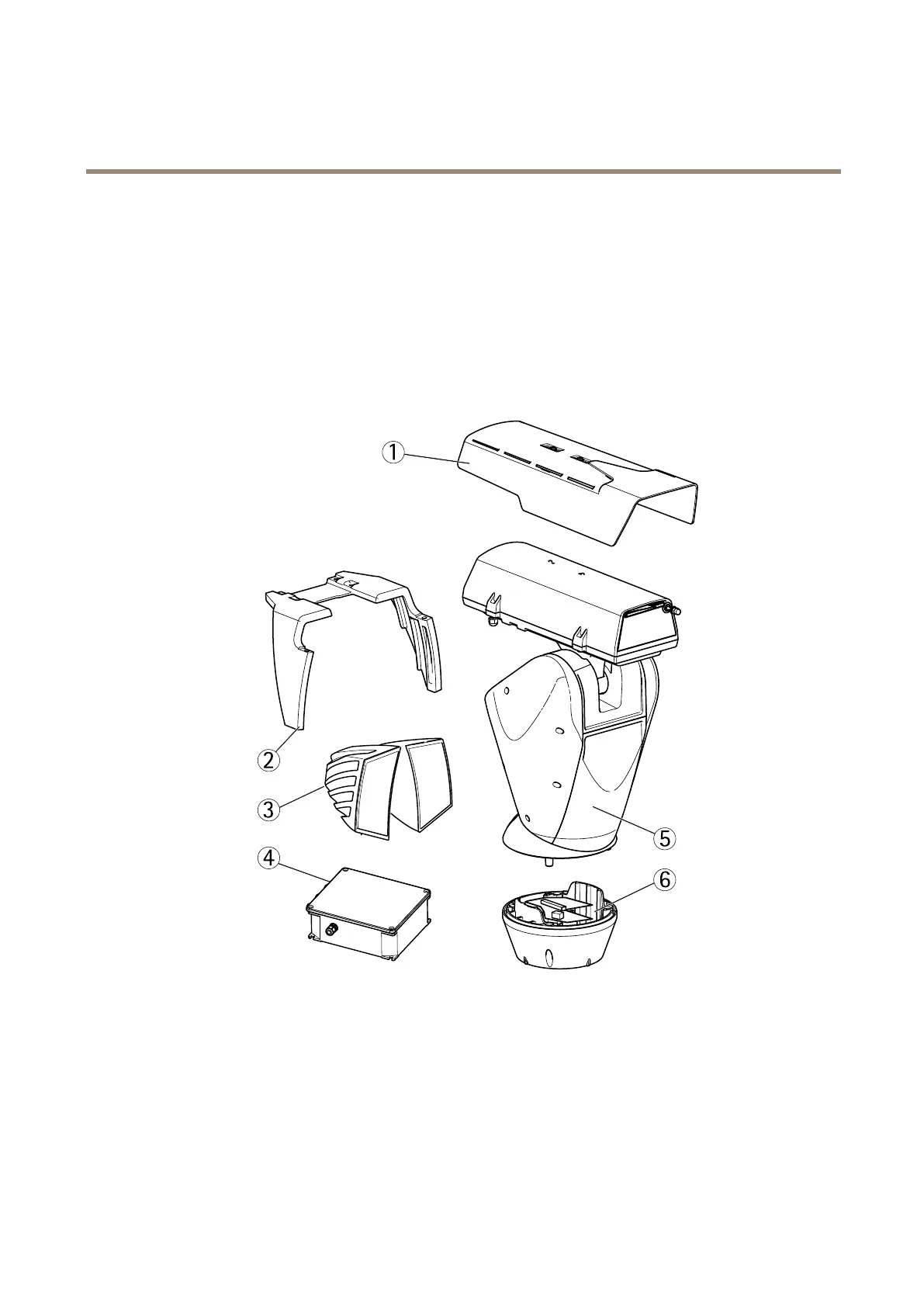

1
Sunshield
2
Illuminatorsbracket
3
Illuminators
4
LightSensorBox(NotvalidforAXISQ8665–LE24VAC.)
5
PTZNetworkCamera
6
BaseUnit
7
