There is a breaker board in the port rear storage compartment adjacent to the engine com-
partment. The black box contains four (4) breakers. If the Auto-Set Wedge will not operate verify
that the supplemental breakers located in the port rear storage compartment are properly set.
Note that the Auto-Set Wedge should always be retracted when not in use.
Models: (Optional) The Auto-Set Wedge is an option available on all models.

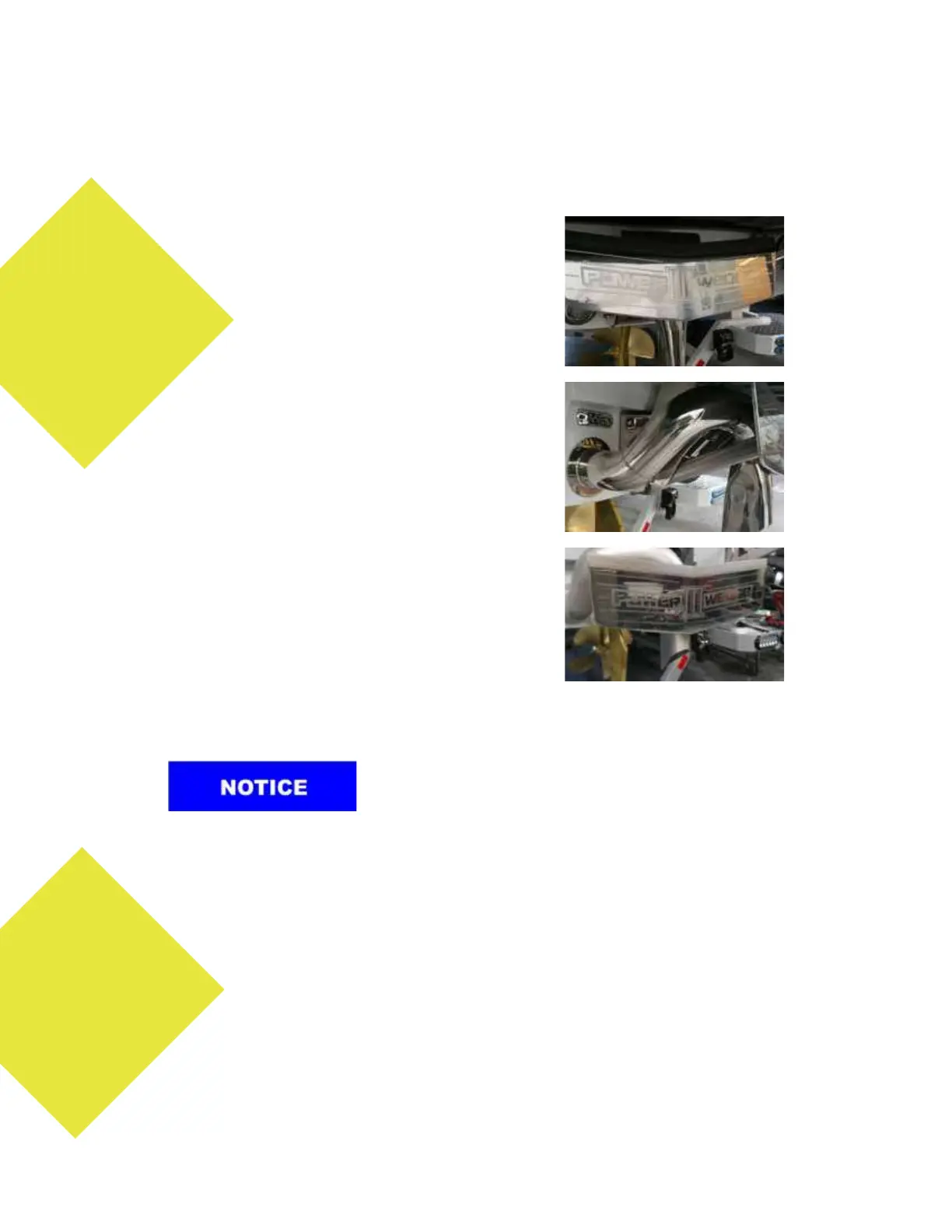

The Power Wedge has up to 1,500 pounds
of wake-creating water displacement. The up-
ward angle radically increases lift, allowing the
driver to get a fully loaded boat on plane much
more quickly. The Power Wedge II is frequently
teamed with Surf Gate to maximize the wake
experience.
The Power Wedge is controlled through the
video screen as explained in the Dashes and
Video Screens section of this Owner’s Manual.
The Power Wedge can also be controlled by
the optional Rotary Control Knob oered in
the Sport Package; the optional Steering Wheel controls;
or the optional Surf Band. Because the water displacement
aects how the boat handles, Axis recommends practicing
operations with the Power Wedge and/or Surf Gate before
deploying with riders/boarders/surfers behind the boat.
The Power Wedge will not return to “stow” unless the
boat speed is above one (1) mph and below ten (10) mph.
Always verify there is no person or object around the Power
Wedge while it is stowing. If an object is obstructing the
process, damage or injury could occur if caught between
the wedge and the transom. The Power Wedge has a
pressure relief valve to allow the wedge to move manually
and freely in the event of a fault. Information on how to use
the pressure relief valve is provided in the Care and Mainte-
nance section of this Owner’s Manual.
Never stand or sit on the Power Wedge plate or place objects on it.
Never use the Power Wedge to mount the transom. The Power Wedge
cannot sustain added weight on it, and subsequent damage to the
Power Wedge or transom of the boat as a result will not be covered
under warranty.
There is a breaker board in the port rear closeout adjacent to the engine compartment. The
black board contains four (4) breakers. If the Power Wedge will not operate, verify
that the supplemental breakers located in the port rear storage compartment are
properly set.
Note that the Power Wedge should always be retracted when not in use.
Models: (Optional) The Power Wedge is an option available on all models.
Surf Gate, in conjunction with the Auto-Set Wedge, oers the most innova-
tive wake-production in the industry. Control of the two transom-mounted gates is
through the center screen on the dash, or by the optional Surf Band, as explained in
the Instrument Panel, Switches and Buttons section of this Owner’s Manual.
The gates are controlled by selecting the desired surf side of the boat (port/left
or starboard/right). When a gate is deployed, the actual desired surf wake will be created on the
Axis
Owners
Manual
2019
Page 106
power
wedge
surf
gate
