Axis T23 User Manual
5
of 1
of 1 rating
216 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
W
ALKTHRU DECALS
W
ALKTHRU DECALS (MODEL SPECIFIC)
FUEL CAP DECALS
TRANSOM
DEC
ALS
ENGINE
COMP
AR
TMENT
DEC
ALS
(MODEL
SPECIFIC)
ENGINE
COMP
AR
TMENT
DEC
ALS
WINDSHIELD
DEC
ALS
(MODEL
SPECIFIC)
Shown is an Axis A24 model.
Al
l Axis models will have
warning l
abels in the same
l
ocations, r
egar
dless o
f model
and bow styl
e.

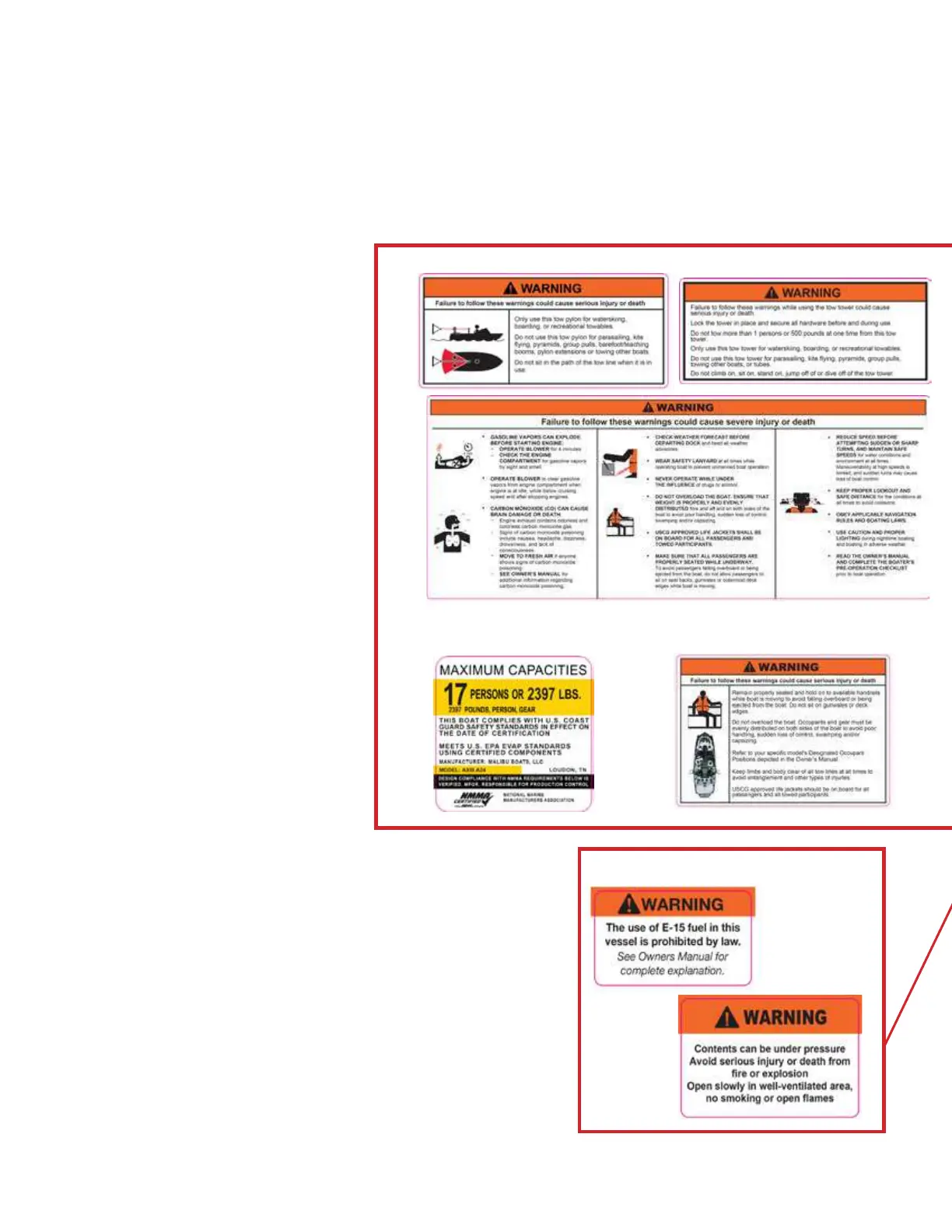

label locations
34
36
Table of Contents
Default Chapter
5
Default Chapter
5
Table of Contents
5
Embracing Safety
13
Basic Safety Rules
13
Signal Words and Symbols Used in this Manual
13
Pre-Operation Check List-Before Leaving the Dock
14
Precautions While Underway
14
Safety While Maintaining the Vessel
16
Owner Responsibility and Boating Education
17
Important Safety Information
17
Registration
18
Insurance
19
Boating Safety Education Opportunities
19
Operation by Minors and Licensing
20
Safety and Required Equipment
20
Navigation Lights
21
Emergency Safety Stop Switch
21
Personal Flotation Devices
22
Fire Extinguisher
23
Horn or Whistle
24
Bilge Pump(S)
24
Visual Distress Signals
24
Recommended Safety Equipment
25
General Boating Safety Topics
25
Safe Speed
25
Passenger Safety
26
Carbon Monoxide Safety
26
Proper Loading
28
Visibility of the Operator
30
Boating under the Influence
30
Product Misuse
31
Reporting Accidents
31
Rendering Assistance
31
Hazardous Conditions
31
Environmental Concerns
32
On Product Warning Labels
34
Warning Labels and Locations
34
Basic Rules of the Road
37
Boating Regulations
37
Encountering Another Vessel
37
Privileged Vessel
37
Burdened Vessel
38
Crossing
38
Meeting Head-On
38
Overtaking
38
The General Prudential Rule
39
Other Rules of the Road
39
Aids to Navigation
39
Night Running
42
Watersports Safety
44
Hand Signals
45
Towed Person Safety Responsibilities
46
Additional Precautions for Towed Skier/Rider
47
Tow Line Guidelines
48
Fallen Skier or Rider
48
Develop Water Sense
49
Emergency Procedures
51
Explosion and Fire
51
Swamping and Flooding
52
Capsizing
52
Staying Afloat
52
Collisions
52
Grounding
53
Person Overboard
53
Drowning
54
Medical Emergency
54
Operation Failure
54
Towing
54
Quick Reference Guide A20
57
A20
61
A22
61
A24
63
T22
65
T23
67
Recommended Seating
69
Dashes & Video Screens
72
The Axis Instrument Panel
73
Gauges
73
Center Screen
74
Main Menu
74
Accessory Buttons
79
Basic Electrical Components
83
Circuit Breakers
83
Fuse Box
84
Electrical Harnesses & Wiring
84
Batteries
84
Other Electrical Components
88
12-Volt Receptacle
88
Port Rear Breaker Board
89
Surf Band
89
Alarms
90
How It Works
92
Safety First
93
Fire Extinguishing Equipment
93
Emergency Engine Stop Switch
94
Lighting
95
Tie-Ups
96
Horn
97
Fuel Fill
98
Mirror
98
Interior Performance
99
Steering Wheel
99
Shifter/Throttle
99
Electronic Throttle Control (ETC)
100
Pylon(S)
100
Interior Luxury
101
Stereo Components
101
Seating
101
Glove Box
103
Storage Compartments
103
Removable Cooler
104
Cup Holders
104
Carpets and Non-Skid Deck Traction
105
Grab Handles
105
Heater
106
Tower, Canvas & Accessories
107
Tower Lights
109
Bimini Top
110
Clamping Spinner Board Racks or Ski Rack
110
Tower Mirror
111
On and under the Water
111
Blower System
111
Bilge System
112
Ballast System
114
Auto-Set Wedge
116
Surf Gate
117
Underwater Gear (Rudder, Fins, Strut, Propeller, Paddlewheel and Raw-Water Intake/Sea Strainer)
118
Salt Water Series
121
Reporting Safety Defects
125
Legal Requirements for Towing
125
Basic Safety Rules
125
Connections to the Tow Vehicle
126
Preparation
126
Trailer Hitch
126
Safety Cables
127
Breakaway Cable
127
Weight Distribution
128
How to Connect to the Tow Vehicle
128
Attaching to the Tow Vehicle
128
To Open the Coupler
129
To Close the Coupler
129
Hitching up
130
Connecting to the Boat
130
Trailer Winch
130
Tie-Downs
131
Trailer Components and How They Function
131
Trailer Jack
131
Lights
132
Axles
133
Wheels and Hubs
133
Lug Nuts
134
Tires
134
Brakes
135
Towing Advice
138
Prior to Towing
138
Pre-Tow Check List
138
Underway
139
Launching and Re-Loading the Boat from the Trailer
139
When the Trailer Is Not in Use
140
Get Ready
144
Axis Fuel System
145
Final Checks before Starting
146
Starting and Operation
146
Starting
147
Break-In Period
148
Smart Operations
148
Stopping
148
High Speed Maneuvers
149
Special Conditions
149
Towing and Interaction
149
Anchoring
150
Docking and Tie-Up
150
On-Going Care
155
General Cleaning
155
Canvas
155
Upholstery
158
Approved Cleaners for Axis Upholstery
160
Swim Board
161
Hull and Deck Finishes
161
Stainless Steel, Chrome and Aluminum Components
162
Routine Maintenance
163
Before Starting the Engine
164
Inspect the Sea Strainer
164
Check the Battery Holders and the Connections
165
Check for Odors
166
After Starting the Engine
166
Check for Odors, Particularly from Exhaust Emissions
166
After the Outing
167
General Inspection
167
Check the Other Components
167
Fuel and Battery Usage
168
Clean the Boat
168
Salt Water/Brackish Water Extra Attention
168
Flushing the Engine
171
After 50 Hours on the Hourmeter
172
Check the Safety Equipment
172
After 100 Hours or Annually (Whichever Comes First)
172
Engine Mounts
172
Exhaust Flap
173
Steering System
173
Shift and Throttle System
173
Battery (Ies)
174
Pumps
174
Fuel System
175
Oil System
175
Check the Safety Equipment
175
Power Wedge and Surf Gate Manual Extension and Retraction
176
Salt Water Boats
176
Storage and Winterization
177
Hull Gel Coat
177
Extended Non-Use
177
Lifting the Boat
177
Extended Storage
178
Axis Wake Research Limited Warranty
183
Warranty Transfer
194
California and U.S. EPA Emission Control Warranty Statement
195
Troubleshooting the Boat
198
Troubleshooting the Trailer
201
Service Log
203
Index
205
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Axis T23 and is the answer not in the manual?
Ask a question
Axis T23 Specifications
General
Brand
Axis
Model
T23
Category
Boat
Language
English
