13

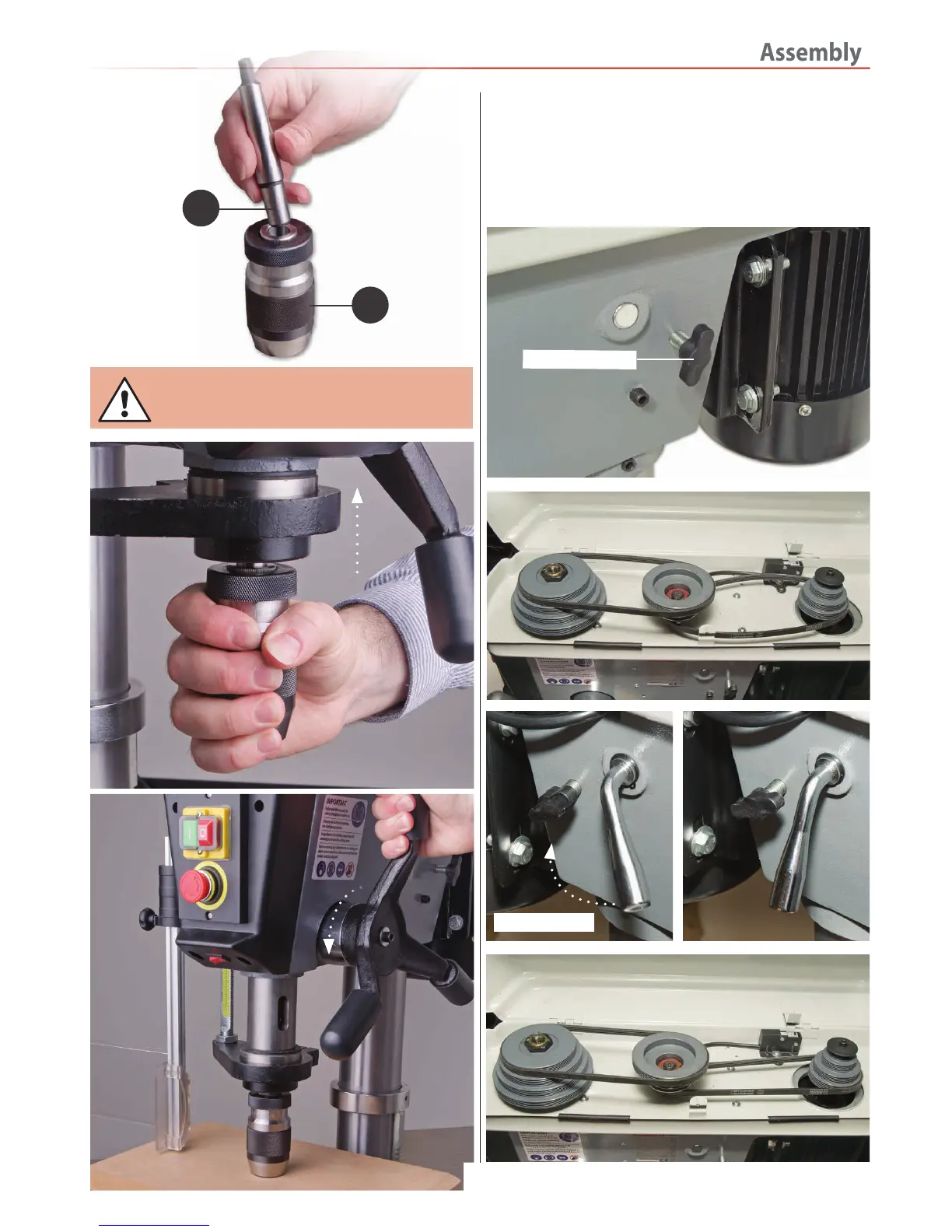

10. Open the pulley cover and check to see if the belt has been
tensioned. If not, loosen the two motor yoke locks on either
side of the drill head and move the tensioning lever back then
re-tighten the motor yoke locks to lock the motor in place, see
fig 36-37-38-39.
Fig 36-37-38-39
Motor yoke clamp
Tension the belt
11
12
Fig 33-34-35
NOTE: MAKE SURE ALL MATING SURFACES
ARE CREASE FREE BEFORE ASSEMBLY!
