WARNING. The thicknesser is a heavy piece of equipment. You are advised
to seek help or the use of some form of lifting device, (hoist, engine crane etc.,) before you
attempt to lift or move this machine.
!
M8x55mm Hex
head bolt
M8 Washers
M8 Spring
washers
M8 Nuts
Stand

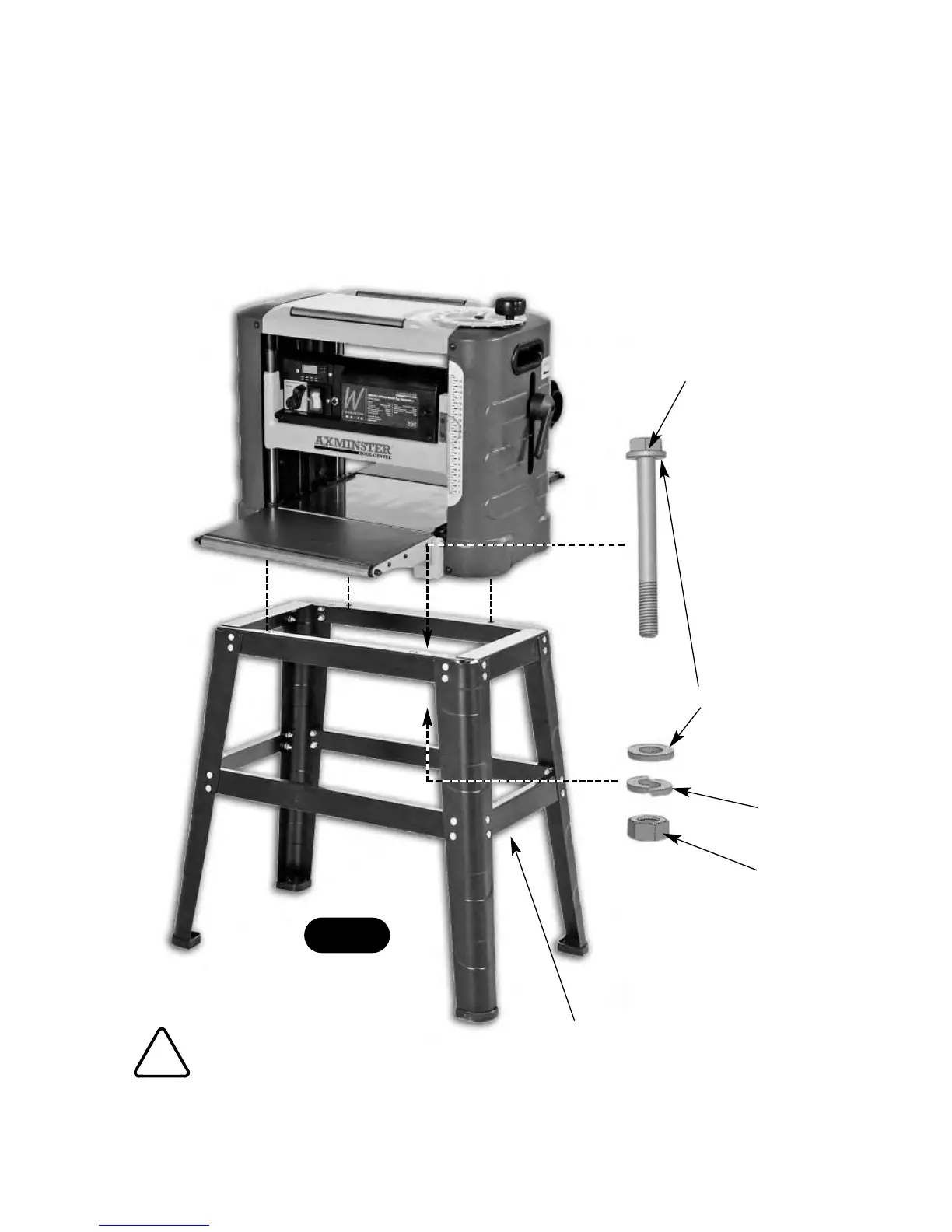

POSITIONING THICKNESSER ONTO THE STAND
Fig 3
28
Bolt the machine to the stand using four M8x55mm hex head bolts, by pushing the
bolt/washer through the chassis, through the stand and securing with washer, spring
washer and M8 nut to lock the thicknesser and stand in place.
DO NOT OVERTIGHTEN
