Axpert 3KVA-110V - Inverter Family Overview; Inverter Model Specifications; Inverter Hardware Overview

SERVICE MANUAL
3KVA-110V/120V
4
V201608A
1.3 Inverter family
This service manual includes different models of the inverter, the table as below contains some important
parameters with different models.
These models names are only neutral names; please match the real model name of your inverter to the model
name in the table by comparing the typical characteristics.
Model name
Power rating
Solar charger
type
Solar charger
number
Off-grid/Hybrid
Inverter with PWM 3KVA
3KVA/2.4KW
PWM
1
OFF-grid
Inverter with MPPT 3KVA
3KVA/2.4KW
MPPT
1
OFF-grid

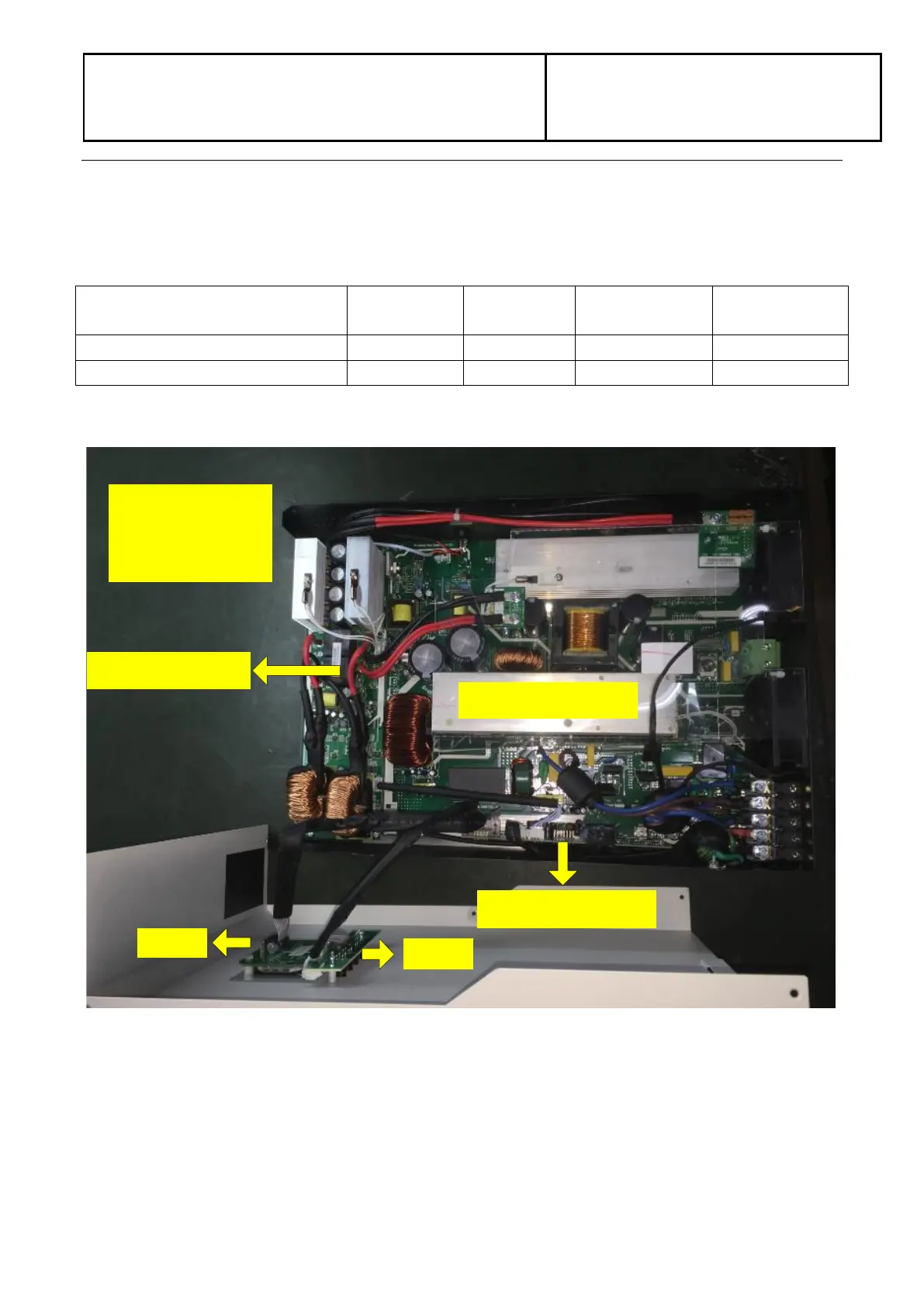

1.4 Overview the inverter
MPPT board
Control board
Main board
LCD
LED
PWM 3KVA
is without
MPPT board
