Axus AXK4 - Insert Connection Cable

7
The Foot Switch must be switched to "B" for the pedal to work.
FOOT SWITCH
A B
FOOT SWITCH
A B
*This product adopts mode B
INSTALLATION GUIDE
06

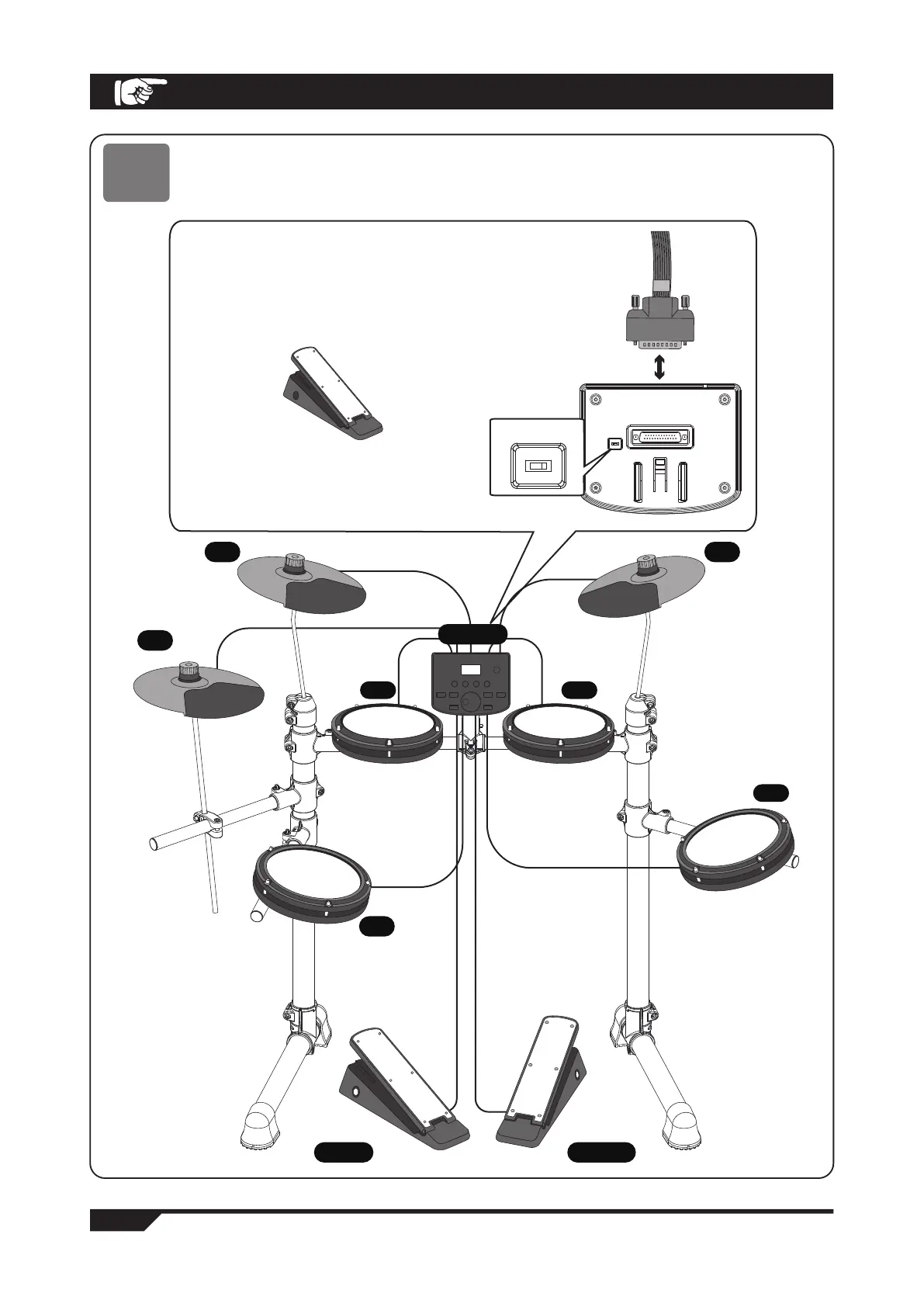

Insert the connection cable
● Please insert the connection cable correctly as shown in the diagram to avoid poor contact. Each
drum/cymbal is noted on the coloured cable end, use the diagram to connect the correct cable to
the corresponding position.
Tom1 Tom2
Tom3
RideCrash
Hi-hat
Snare
Hi-hat control Kick drum pedal
Drum module
