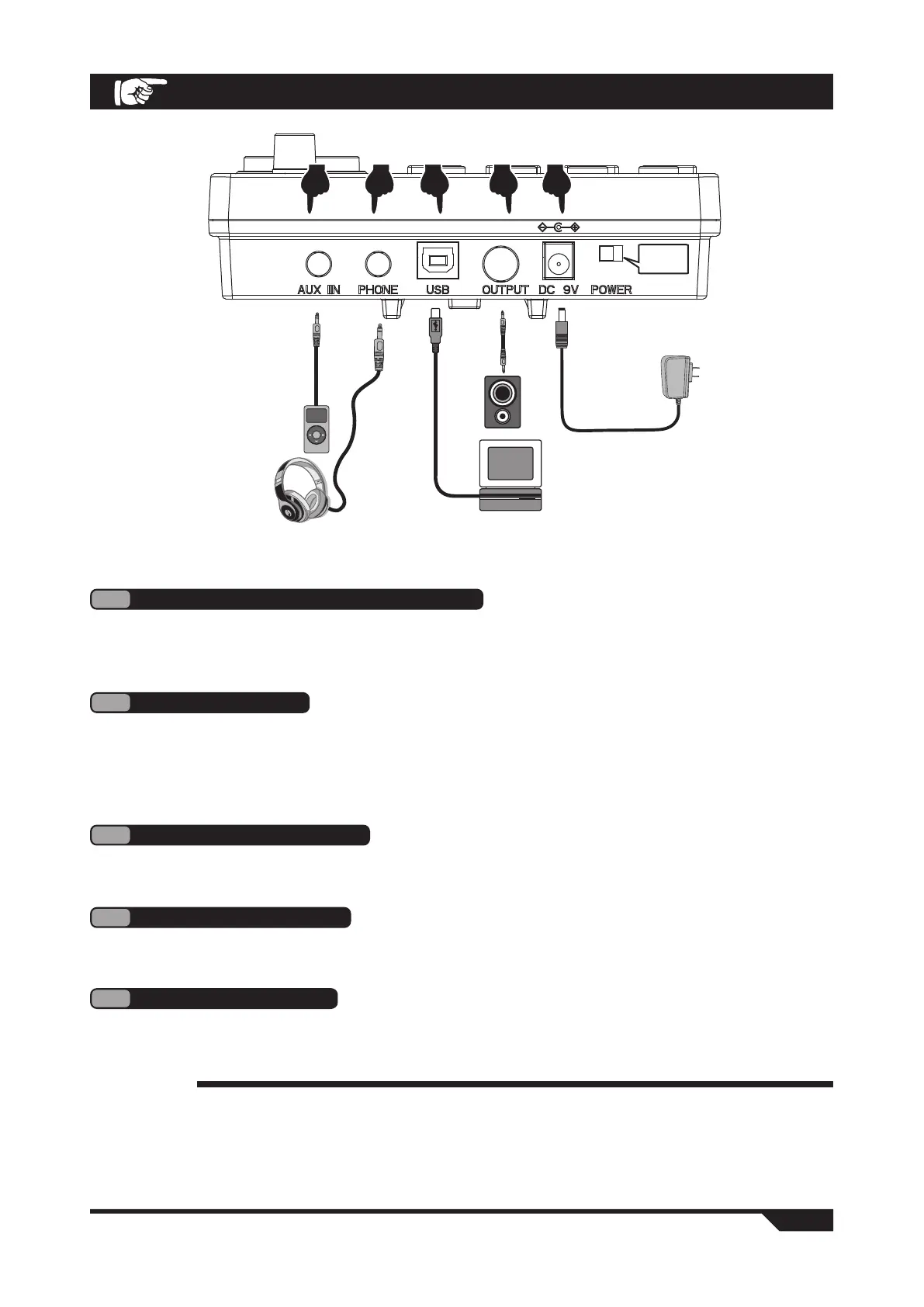

SOUND MODULE DIAGRAM
8
MANU
OFF/ON
CAUTION！
● To prevent damage to the equipment or hearing loss, turn the volume to minimum before connecting any devices.
1. Connect the power supply according to the diagram (DC 9V). (Fig. 1)
2. If you do not use this product for a long time, please pull out the power plug and store in a safe place.
1
POWER SUPPLY CONNECTION
Connect a set of standard stereo headphones to not disturb others around you when playing without connecting
speakers. (Fig. 5)
5
HEADPHONE PORT
The audio output port (OUTPUT) can be connected to an active speaker (electronic drum speaker is recommended)
or large audio equipment. (Fig. 3)
3
AUDIO OUTPUT PORT
The audio input port (AUX IN) can connect the sound from your device (such as MP3 or mobile phone) so you can
play along with your favourite songs. (Fig. 4)
4
AUDIO INPUT PORT
1. By connecting a computer or device to the USB port, you can learn to play, compose and store music with
pre-installed software from your computer. Use a USB type B cable. (Fig. 2)
2. When connected to a computer or device, the audio output of the device needs to be connected to the audio input
(PHONE) socket of the module box in order to synchronize the sound effects on the device. (Fig. 5)
2
USB MIDI PORT
4 5 2 3 1
