LIST OF MAIN PART
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Frame
Fuel cap
On / Off switch
Tank indicator
Voltmeter
Overload cut-out
Oil shortage cut-out
Oil filler plug
Wheels
Push bar assembling set
Muffler
Carry handle
Wheel cap
Choke lever
Petrol cock
Air filter set
230 V~ socket-outlets
12 V d.c outlet
Pull cord
Spark plug
Rubber feet
Earth connection
400 V~ socket-outlets
DC oulet adapter cable
DC overload cut-out
Battery
Starter key
Spark plug wrench set
Spanner
Wheel assembling set
Oil drain

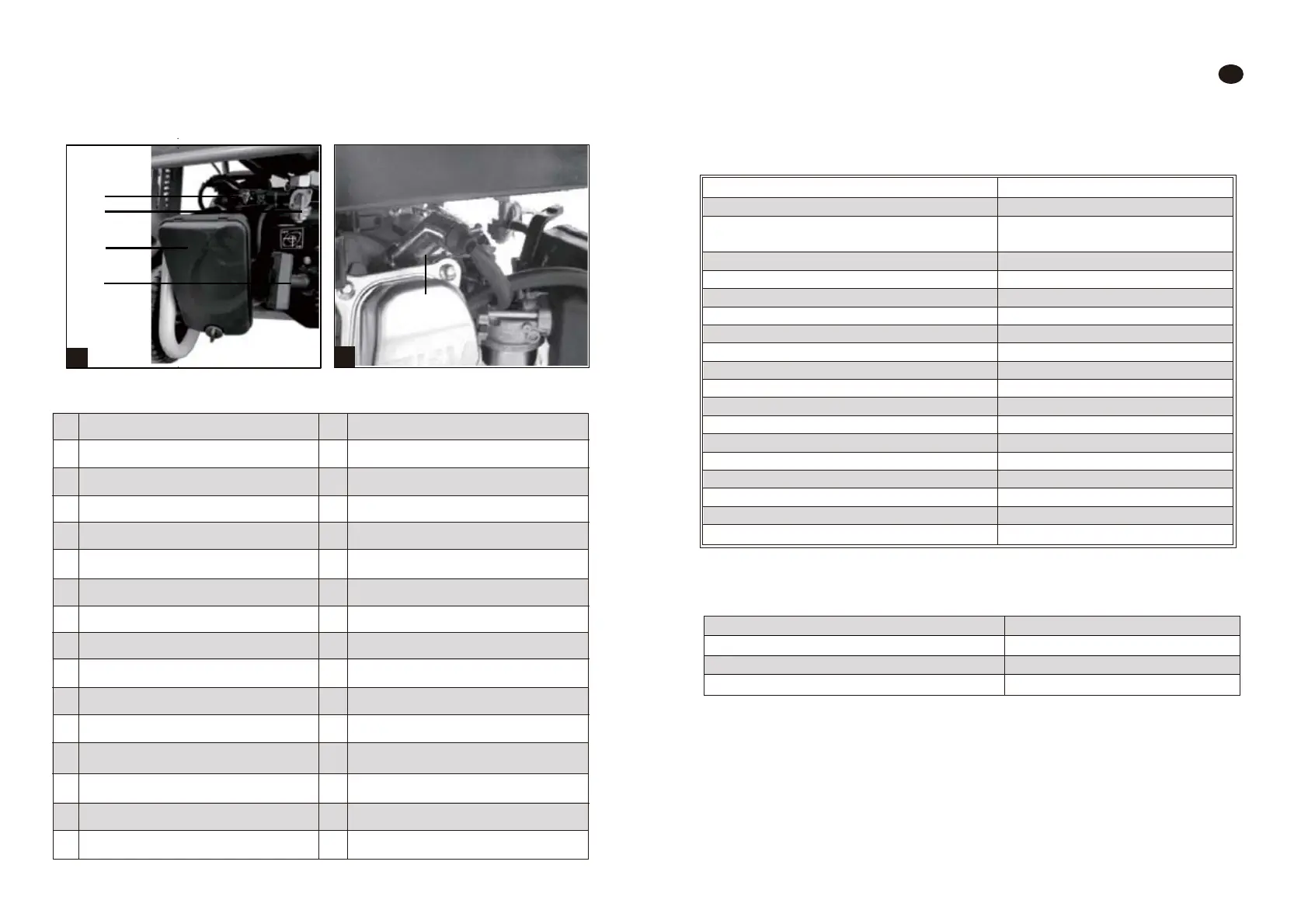

TECHNICAL SPECIFICATIONS
Model PDS 5500 (1337558)
AC Voltage / Frequency
AC Output (Rated/Max.)
DC Output
Phase
Starting System
Ignition System
Rated Power(HP/RPM)
230 V / 400 V- 50 Hz
12 V / 8.3 A
Three phase
Electric starter
T.C.I
13 / 3600
Rated Power Factor
Fuel Tank Capacity
FRV 
25 L
Lubricating Oil Capacity 1.1 L
Displacement
Lubricating Oil
Sound Power Level
Max. Altitude
Max. Ambient Temperature
Degree of Protection
Power Class
Weight (KG)
389 cm3
SAE 10 W-30
97 dB(A)
1000 m
40 °C
IP 23M
G1
91
23
24
25
26
10
27
1. Unpack all parts and lay them on a flat, stable surface.
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any damage. If you find that
parts are missing or show damage, do not use the product but contact your dealer. Using
an incomplete or damaged product represents a hazard to people and property.
4. Ensure that you have all the accessories and tools needed for assembly and operation.
1.85 KW / 2.0 KW @ 230 V
5.0 KW / 5.5 KW @ 400 V
DELIVERY SCOPE
In the selling package, including below things:
1 set
1 pc
1 pc
4 pc
2 pc
1 pc
1 pc
Generator
Spark Plug Wrench Set
12V DC Cable
Wrench
10’’ Wheel
Instruction manual
Start key
UNPACK
