The pinout

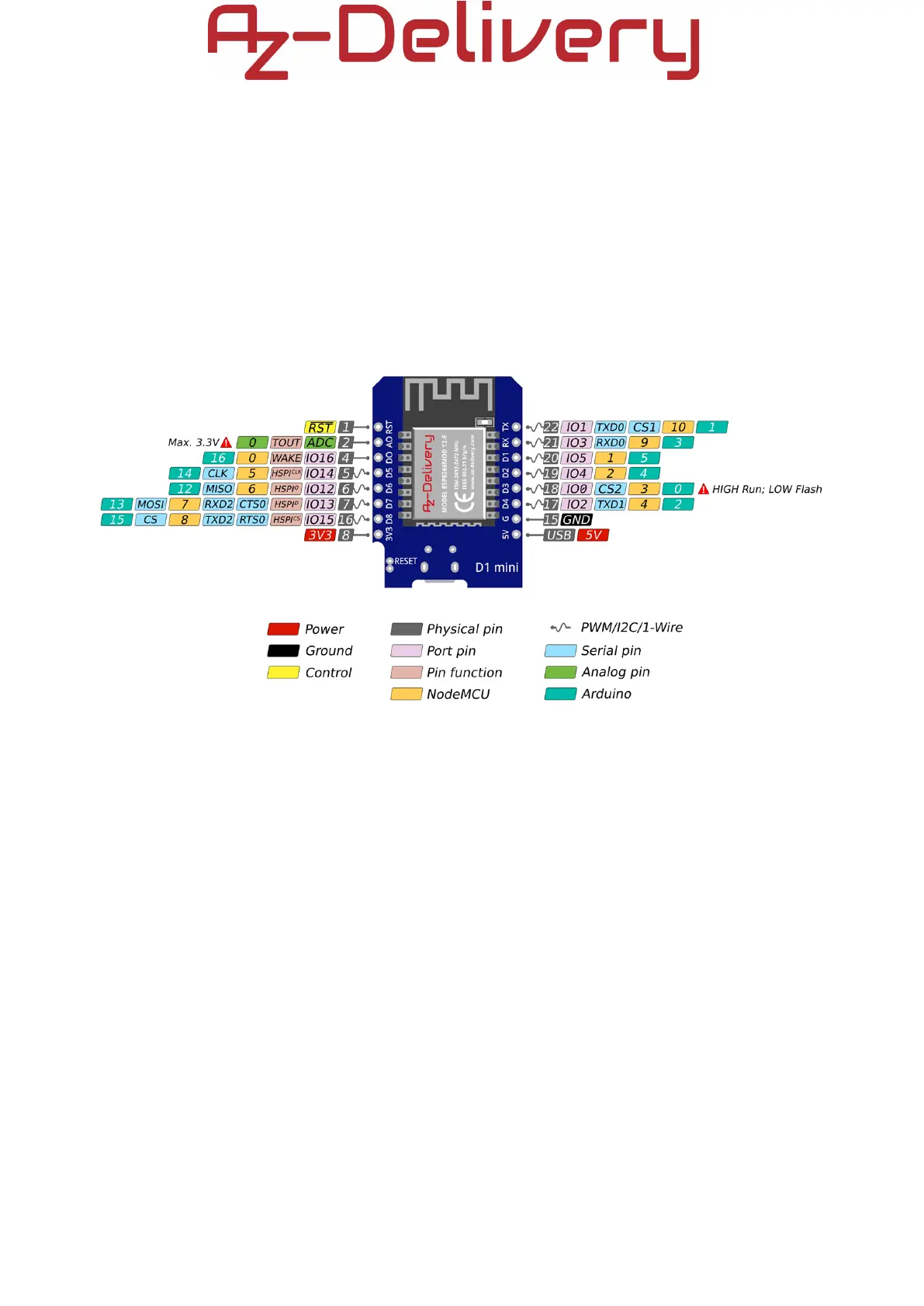

The D1 Mini module has two rows of eight pins (sixteen pins in total). The pinout
of the module is shown on the following image:
