AB-6546
13
Wiring: Model QY5100W0000 (Panel Mount Type)

WARNING

• Be sure to ground with 100 Ω or lower ground resistance. Improper grounding may cause electrical shock or
equipment damages.

CAUTION

• Install a circuit breaker or circuit protector in the power supply circuit that supplies the power to the product.
IMPORTANT:
• Use max. φ5.8 mm (outer diameter) crimp terminal lugs.
• Multiple cables cannot be connected together to the power supply terminal. Avoid daisy-chain connection for the power
supply terminals of Model QY5100W0000.
Connecting procedure
1) Connect the UT (user terminal) module and Model QY5100W0000 with the modular cable. Then, connect power supply.

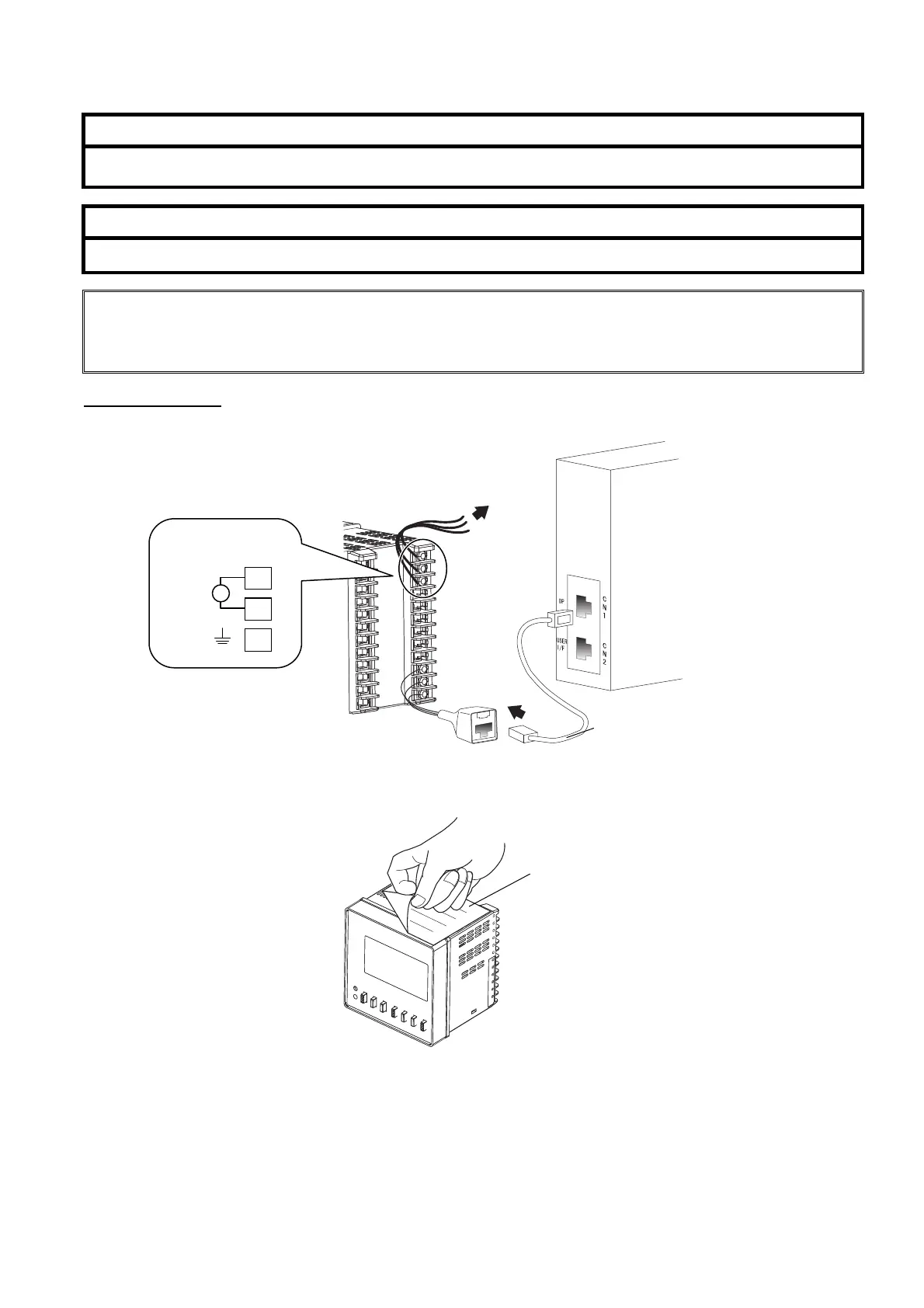

Figure 8. Connection to UT module
2) After the wiring installation is completed, peel off the protective sheet before supplying the power.
Figure 9. Protective sheet
Wiring: Model RY5001Q0000 (Integral Type)
Model RY5001Q0000 is directly attached to a Infilex GC/Infilex GD/Infilex AC basic unit or to its I/O module, etc. Wires
connection therefore is not necessary unless Neopanel or Neoplate is connected to Model RY5001Q0000.
(Neopanel/Neoplate is connected to Model RY5001Q0000 with LAN cable. A modular jack (port for Remote Controller bus) is
provided on the front lower side of Model RY5001Q0000. (Refer to Fig. 6.)
Protective sheet
Operator Panel Model QY5100W0000
(Rear side)
UT module
Modular cable
2. Connect.
1. Connect.
Power supply terminals
arrangement
13
14
15
∼
H
G
E
