Installation
IMPORTANT:
Do not install Operator Panel in a high temperature environment including locations exposed to heat radiation
from heating/cooling system equipment or to the direct sunlight. Also, install in a location where the displaying
contents can be seen clearly.
Model QY5100W0000 (panel mount type)
Precautions
• Use a minimum of 2 mm thick steel plate for the
mounting panel. (e.g., door of a control panel
cabinet where the Operator Panel is installed.)
• The allowable mounting angle is ranging from
upright position to 10° tilted upwards or
downwards.
• The angle of visibility is 80° (vertical and
horizontal). Be sure to install Model
QY5100W0000 in a location where its LCD is
visible.
• Do not remove the protective sheet until the
wiring work is completed.
Installation procedure
1) Insert Model QY5100W0000 from the front of the
mounting panel.
2) From the rear of the mounting panel, attach the
mounting brackets to Model QY5100W0000.
3) Keep the mounting brackets pushed until its
claws are engaged with the grooves on Model
QY5100W0000.
4) Tighten the screws of the mounting brackets attached to the top and the bottom of Model QY5100W0000.
IMPORTANT:
Tighten the screws supplied with the mounting brackets until the mounting brackets get unshaken. Then, rotate (to tighten)
the screws once to fix Model QY5100W0000 on the mounting panel.
If the screws are tightened excessively, the case of Model QY5100W0000 may get deformed.
Model RY5001Q0000 (integral type)
Model RY5001Q0000, as well as the other modules (I/O and UT) connected to the Infilex GC/Infilex GD/Infilex AC basic unit,
is mounted on a DIN rail. The connectable modules including Model RY5001Q0000 vary because the power supplied by the
basic unit is limited. For details about installing Model RY5001Q0000, please refer to the respective
Specifications/Instructions and Installation Manual.
Product Document number Document type
Infilex AC (for NC-bus) AB-6438 Specifications/Instructions
Infilex AC (for LonTalk protocol) AB-6584 Specifications/Instructions
Infilex AC (for IP) AB-6489 Specifications/Instructions
Infilex GC (for NC-bus) AB-6528 Specifications/Instructions
Infilex GC (for LonTalk protocol) AB-6580 Specifications/Instructions
Infilex GC (for IP) AB-6541 Specifications/Instructions
Infilex GD (for NC-bus) AB-6529 Specifications/Instructions
Infilex GD (for LonTalk protocol) AB-6581 Specifications/Instructions
Infilex GD (for IP) AB-6542 Specifications/Instructions
Modules (I/O, UT, Operator Panel) AB-6527 Specifications/Instructions
Infilex Series for LonTalk Protocol AB-6651 Installation Manual
Mounting brackets
Cutout portion o
the mounting panel
Mounting bracket screws
Min. 2 mm thick
Mounting panel
Main unit of Model QY5100W0000
Grooves on the top and
bottom sides fo
mounting brackets

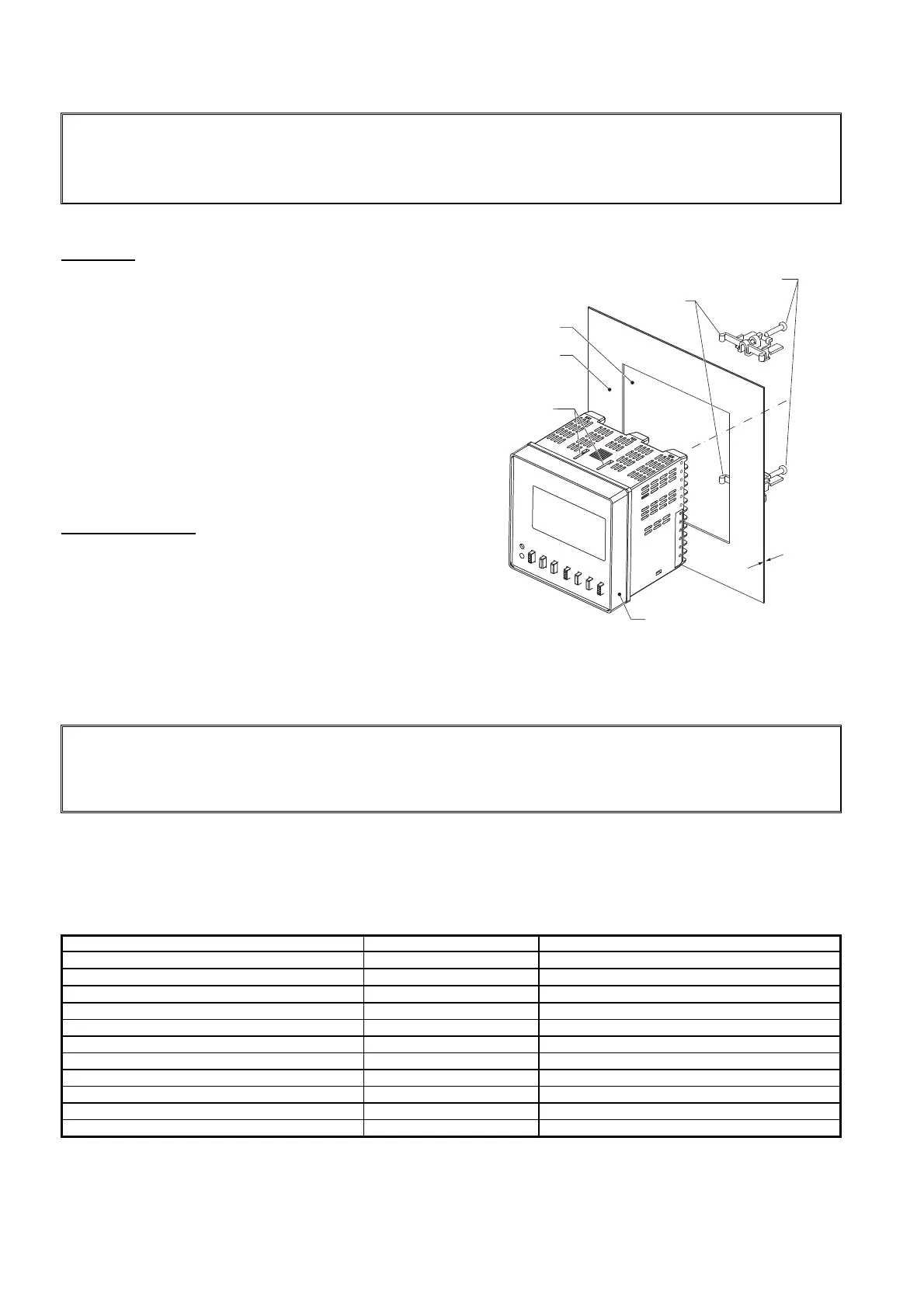

Figure 7. Model QY5100W0000 installation
